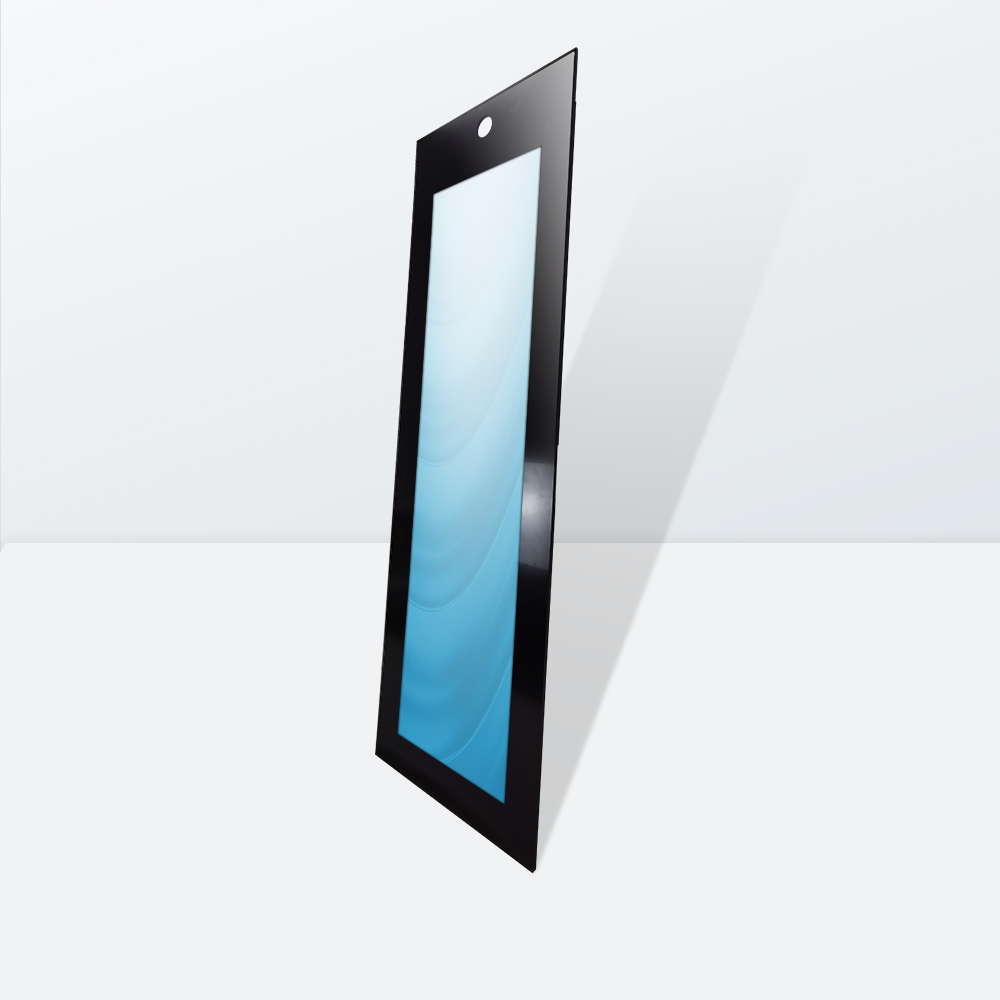

Rugged Ultra-Wide Android Display for Outdoor System Integration
The PCT01-42A03-011 combines a 42-inch stretched TFT-LCD, 6 mm AG70 cover glass and optical bonding for outdoor visibility and front-surface durability. Its IP65 front design, IK10 anti-vandal protection, built-in light sensor and active four-fan cooling system support continuous deployment in outdoor digital signage and other high-brightness embedded display applications.
Speification
42-inch outdoor stretched Android panel PC
| Product Type | Outdoor Stretched Android Panel PC |
| Display Size | 42 inch |
| Display Resolution | 1920 × 480 |
| Brightness | 1500 cd/m²; min. 1350 cd/m² after 6 mm AG cover glass |
| Aspect Ratio | 3:1 |
| Cover Glass | 6 mm AG70°±10°, 7H scratch resistance |
| Optical Bonding | LCD and 6 mm AG70 cover glass optically bonded |
| IP / IK Rating | IP65 front / IK10 |
| Viewing Angle | 89°/89°/89°/89° typ. |
| Contrast Ratio | 4000:1 |
| Display Colors | 16.7M / 1.07B, 8-bit / 8-bit + Hi-FRC |
| Response Time | Typ. 8 ms |

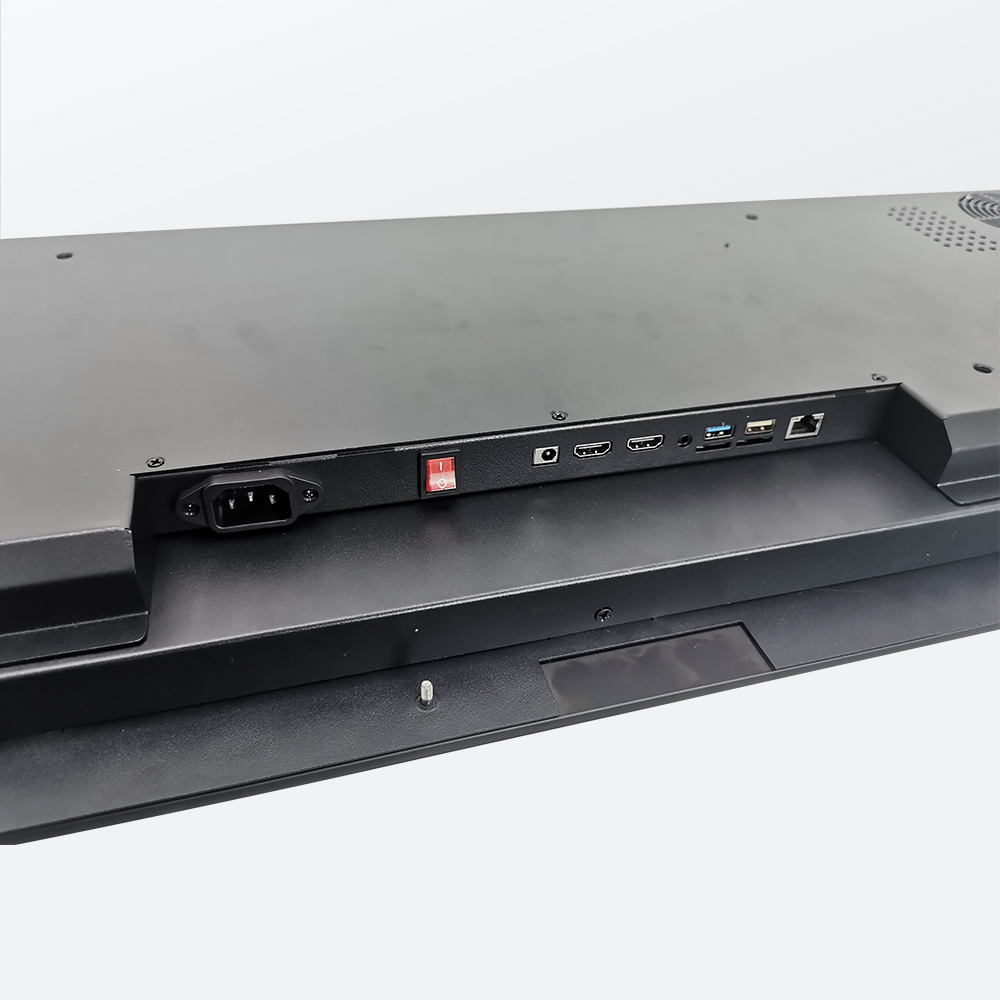

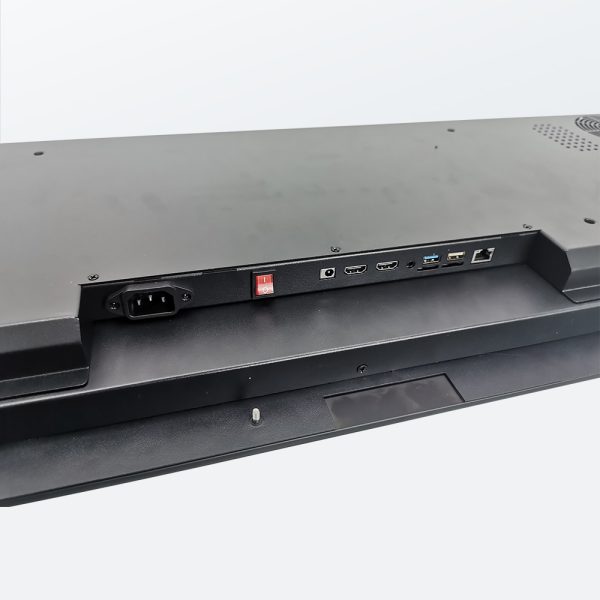

| Interfaces | HDMI-In, HDMI-Out, Audio-Out, USB 3.0, USB 2.0, RJ45 LAN, TF Card |
| Power Input | AC 100–240V |
| Light Sensor | Built-in; ON/OFF selectable in Android O/S |

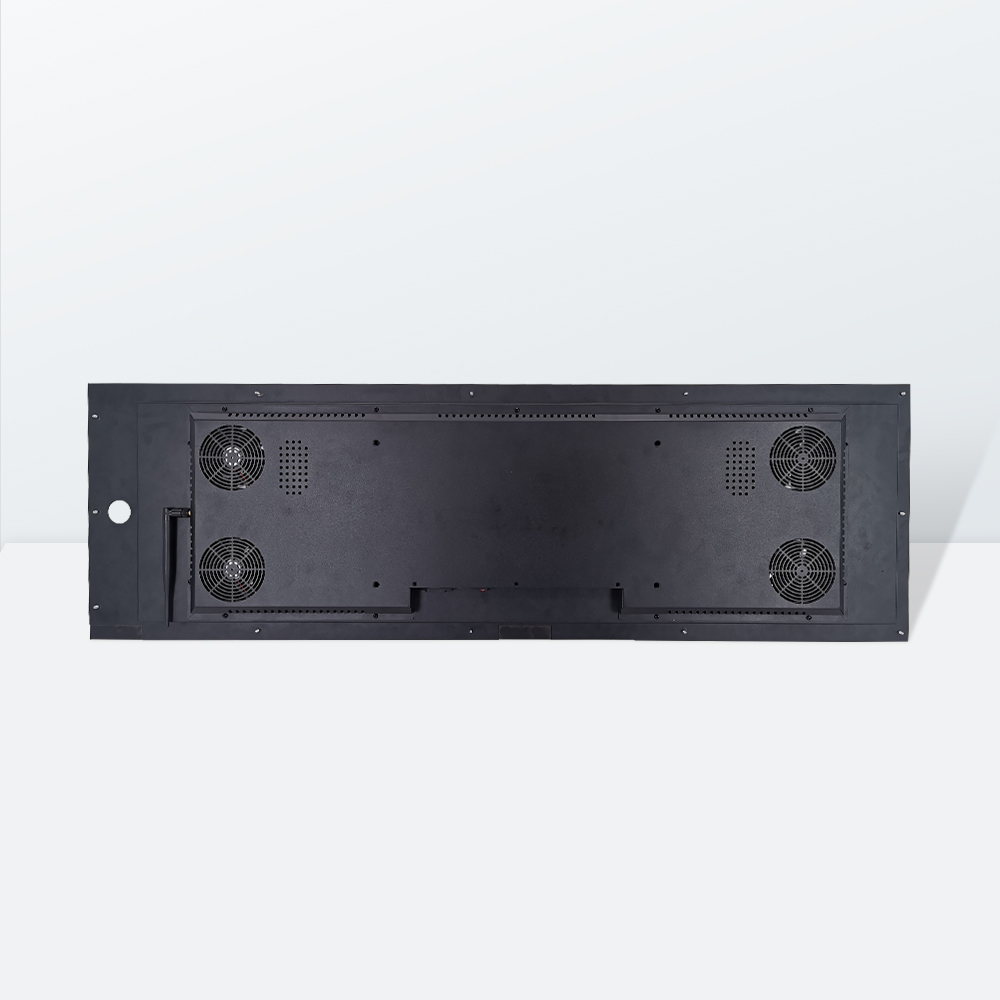

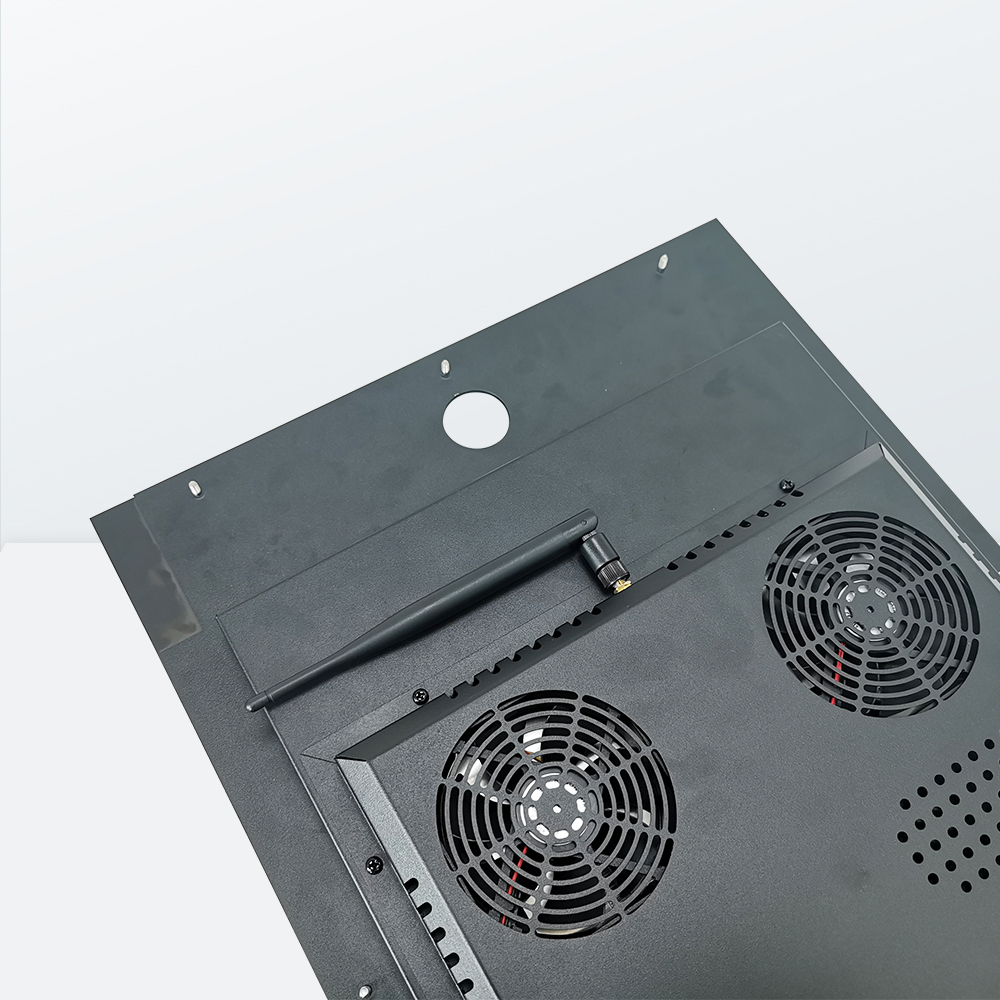

| Cooling | Active cooling, 4 × 92 mm UL-certified fans |
| Overall Dimensions | 1230 × 382 × 62.50 mm |
| Operating Humidity | 20%–90% |
| Android Platform | RK3588, 16G ROM + 128G EMMC |
| Direct sunlight standard | LCD monitor meets the IEC 68068-2-5: Solar simulation climate aging test |
