12.1″ 500-Nit High Brightness IP65 IK07 Open Frame PCAP Touch Monitor

Rugged PCAP Touch Display with Flush Glass Front for Industrial Integration

Model 15OTL-N121HDIG-P is a high-brightness industrial LCD touch monitor using projected capacitive multi-touch technology. It supports Win7, Win8, Win10, Win10_IoTE, Android & Linux by multi-touch function, and is suitable for various industrial, commercial and medical devices. XGA resolution and VGA/HDMI/DVI connectivity support flexible system integration.

Main Features:

- - 500 cd/m² high-brightness LED display for bright industrial environments
  - 100% flush front surface for clean equipment integration
  - 4 mm IK07 anti-vandal cover glass for impact protection
  - 10-point PCAP multi-touch with water-resistant operation
  - XGA 1024 × 768 resolution with 88° wide viewing angles
  - IP65-rated front protection against dust and water
  - VGA, HDMI, DVI and USB touch interfaces for flexible integration

12.1″ 1024*768

Online service

Compact Open Frame Touch Display for Industrial Equipment Integration

The 15OTL-N121HDIG-P features an open-frame structure with a fully flush front surface, 4 mm IK07 anti-vandal glass and wide 88° viewing angles. Its -20°C to 70°C operating range and IP65-rated front support reliable integration into industrial terminals, control equipment and embedded systems.

Specification

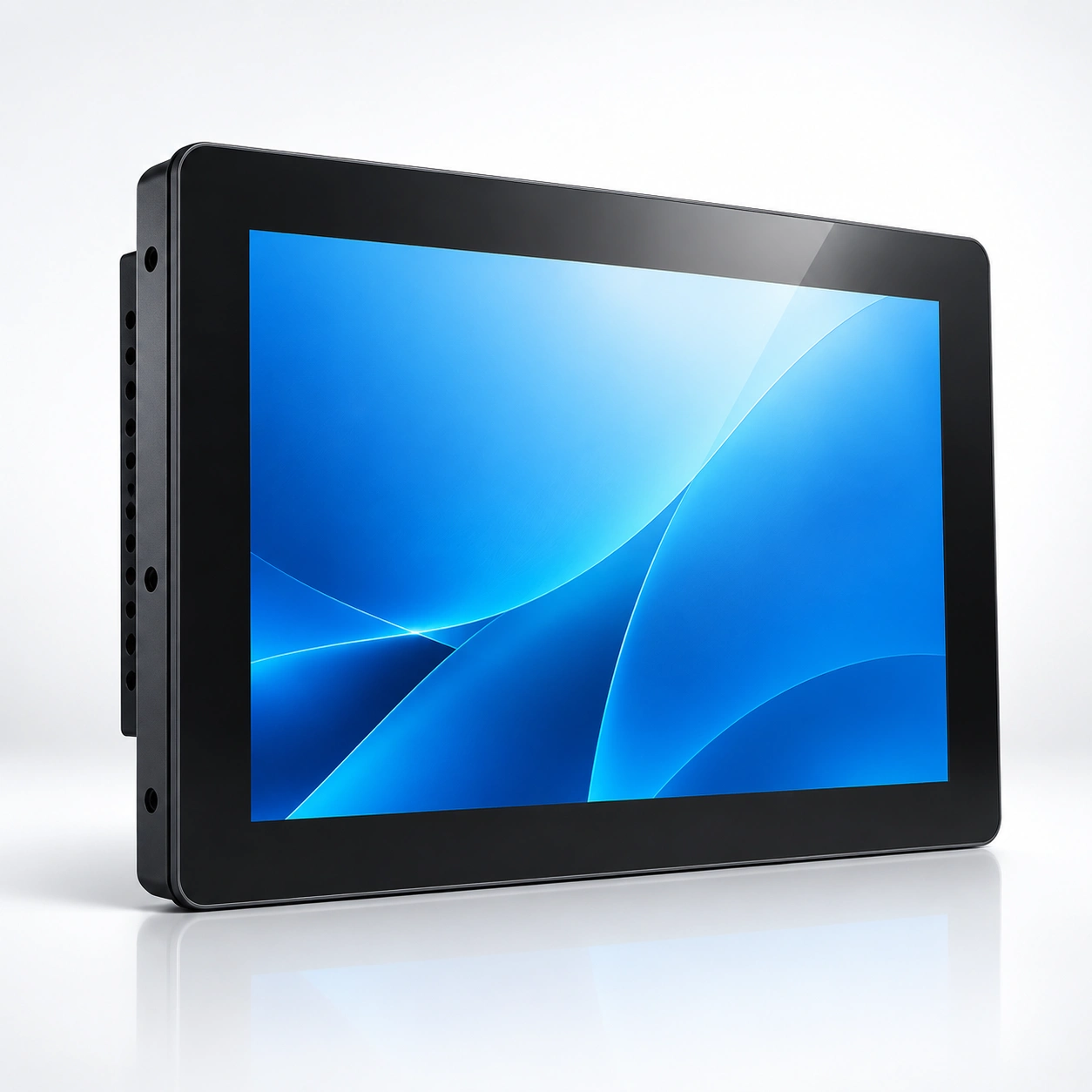

12.1-inch open frame PCAP touch monitor with flush black glass front

Display Size	12.1 inch
Display Resolution	XGA 1024 × 768 @ 60 Hz
Brightness	Typ. 500 cd/m²; min. 450 cd/m² after PCAP
Touch Technology	Projected Capacitive Multi-Point Touch, ILI2510 controller
Touch Points	10 points
IP / IK Rating	IP65 front / IK07
Cover Glass	4 mm anti-vandal glass, 7H hardness
Viewing Angle	88°/88° left/right; 88°/88° vertical/horizontal
Operating Temperature	-20°C to 70°C
Video / Touch Interfaces	VGA, HDMI, DVI; USB Type-B for touch
Aspect Ratio	16:09
Contrast Ratio	Typ. 1200:1
Display Colors	16.7 million colors
Backlight	LED
Active Area	LCD: 245.76 × 183.32 mm; PCAP: 246.00 × 184.50 mm
Input Voltage	12 V / 4 A
Overall Dimensions	296.00 × 234.50 × 47.30 mm
Mounting / Construction	Open Frame with flush surface
Operating Humidity	20%–90%
Certifications / Compliance	CCC, CE, FCC, RoHS
