32″ Full HD IPS Pure Flat Open Frame Industrial PCAP Touch Monitor

6 mm Rugged PCAP Glass with 10-Point Multi-Touch and Wide Viewing Angles

Model PCT01-32T is a 32-inch Full HD LCD touch monitor using projected capacitive multi-touch technology. It supports Win7, Win8, Android & Linux by multi-touch function and is widely applied to industrial, commercial and medical devices.

Main Features:

- - 10-point projected capacitive multi-touch
  - 6 mm PCAP glass with 8H hardness for enhanced surface durability
  - Pure flat front surface for clean equipment integration
  - 89° wide viewing angles for landscape or portrait applications
  - HDMI, VGA and DVI video inputs with USB Type-B touch interface
  - VESA 200 mm or bracket mounting for flexible installation
  - Natural air cooling for quiet fanless operation

32″ 1920*1080

Online service

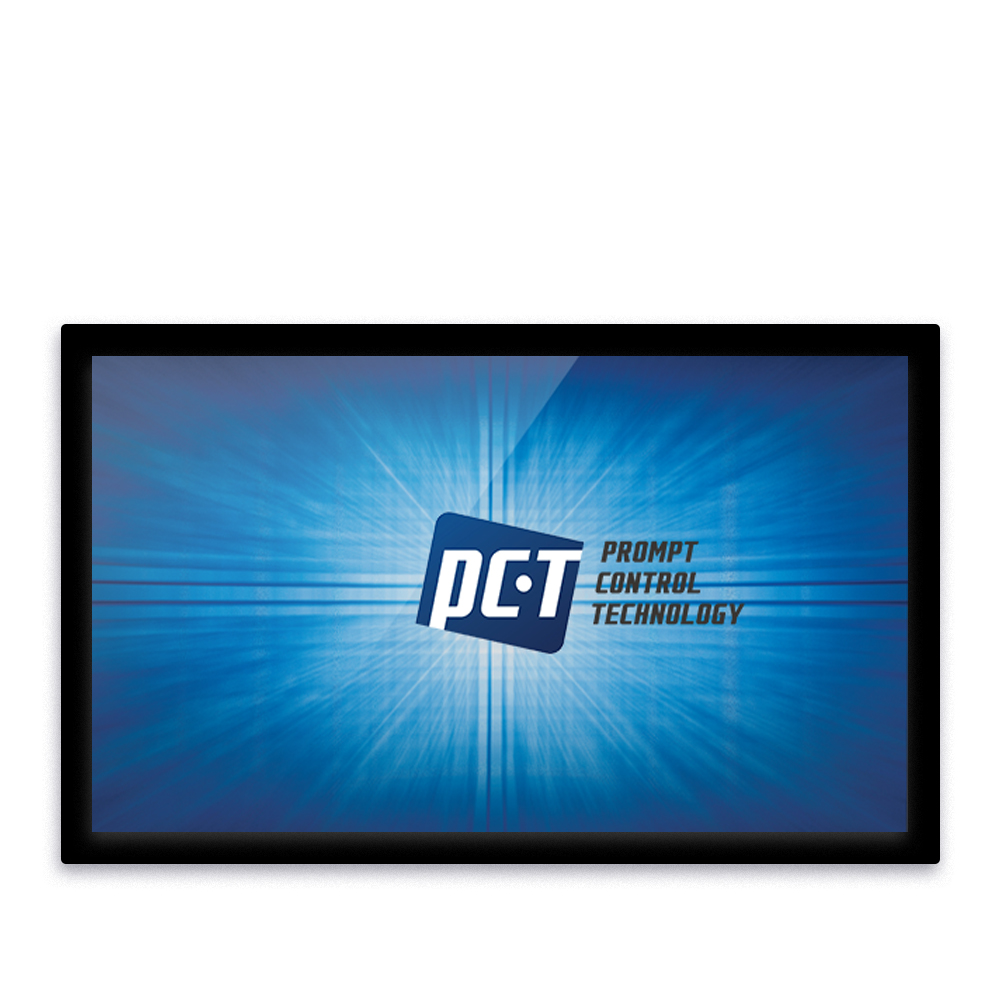

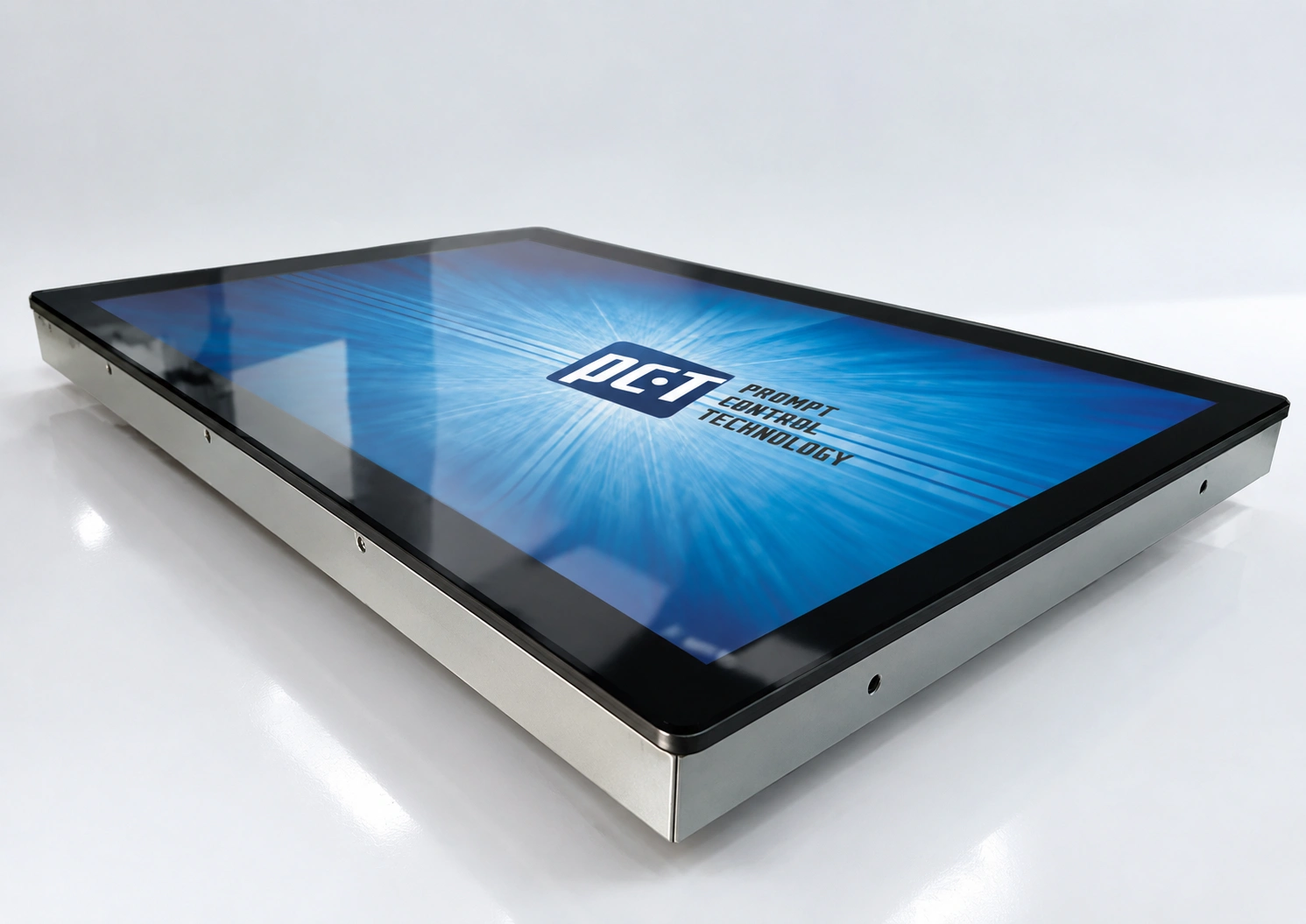

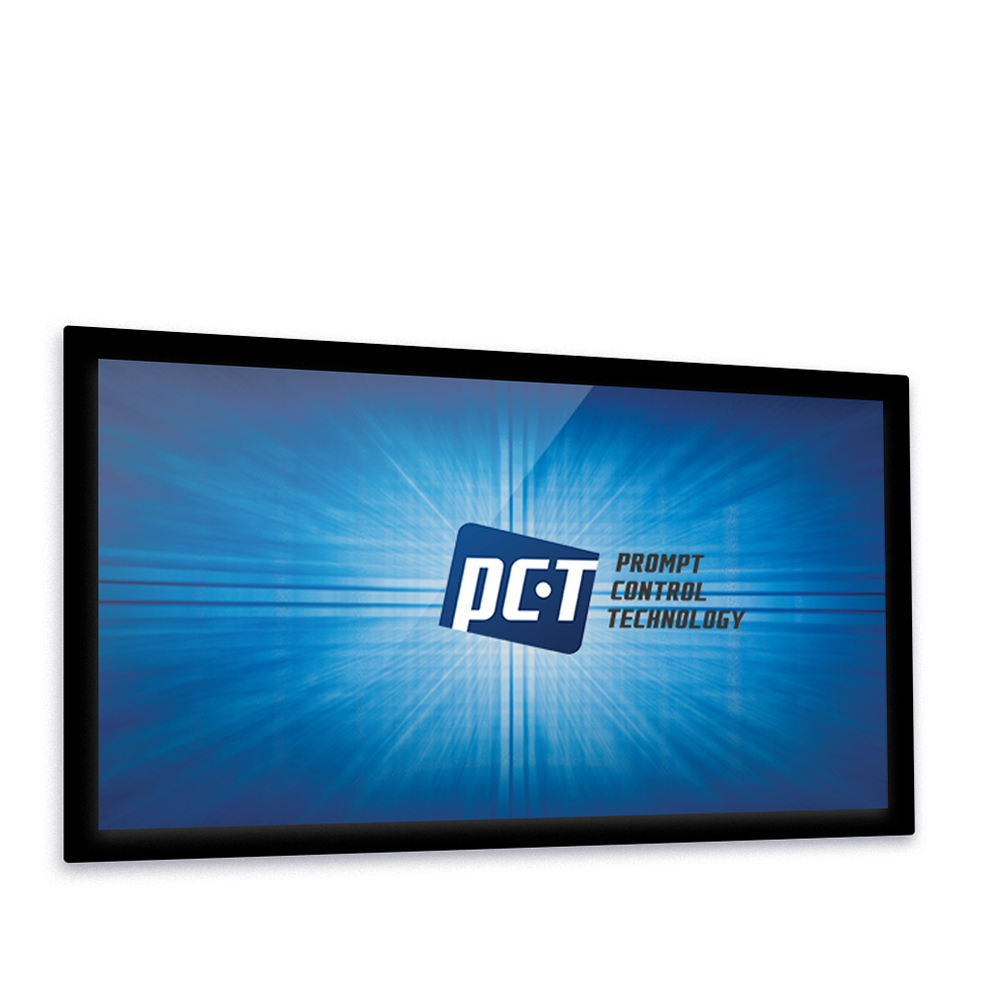

32-inch pure flat open frame PCAP touch monitor with black glass front

The PCT01-32T combines a pure flat front surface, 6 mm PCAP glass and an IPS Full HD panel for large-format industrial display applications. VESA 200 mm mounting, natural air cooling and HDMI/VGA/DVI connectivity provide a practical integration platform for industrial terminals, commercial equipment and custom display systems.

Specification

32-inch pure flat open frame PCAP touch monitor

Display Size	32 inch
Display Resolution	1920 × 1080 @ 60 Hz; 70 Hz supported
Brightness	Typ. 350 cd/m²
Touch Technology	Projected Capacitive Multi-Point Touch
Touch Points	10 points
PCAP Glass / Hardness	6 mm / 8H
Viewing Angle	89°/89° left/right; 89°/89° vertical/horizontal
Operating Temperature	0°C to 50°C

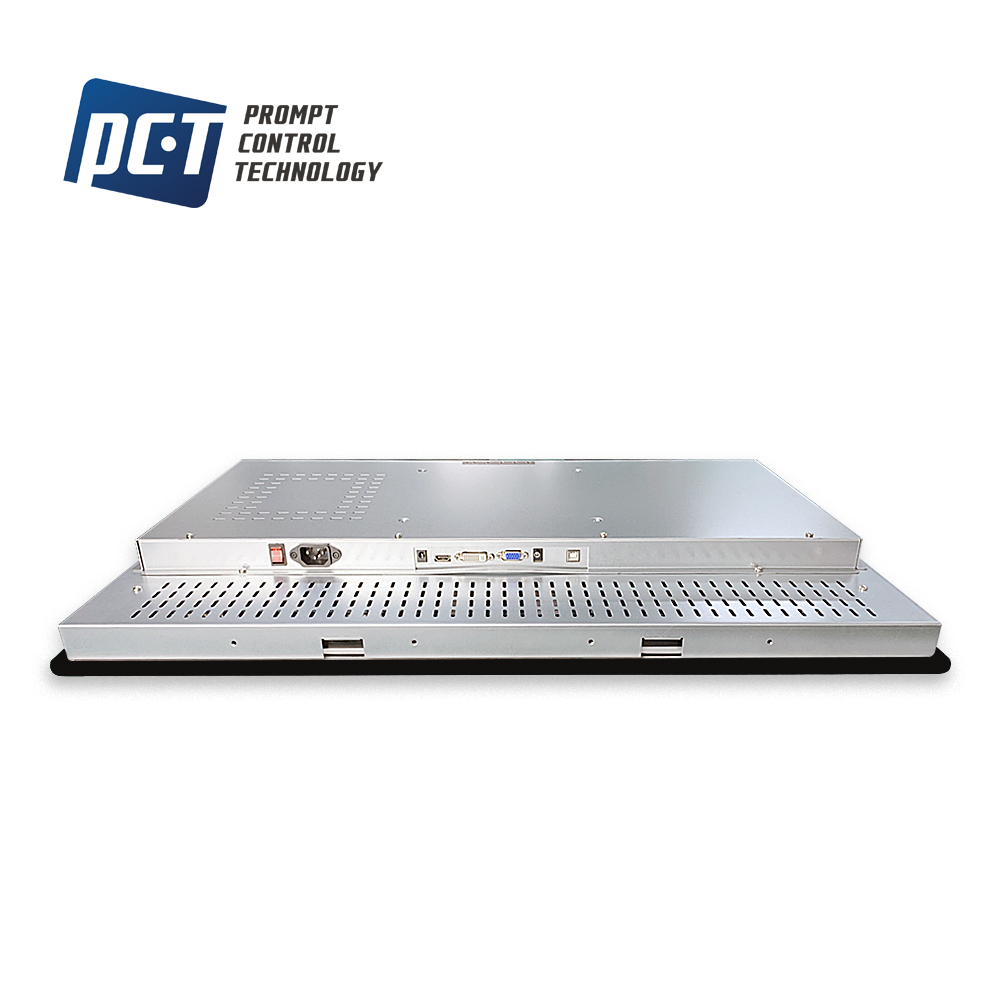

Video / Touch Interfaces	HDMI, VGA, DVI; USB Type-B for touch
Mounting	VESA 200 mm / bracket
Aspect Ratio	16:9 IPS panel
Contrast Ratio	Typ. 1400:1
Display Colors	16.7 million colors
Response Time	Typ. 6 ms
Active Area	LCD: 698.40 × 392.85 mm; PCAP: 699.40 × 393.90 mm
Input Voltage	AC 220 V
Power Consumption	<38 W
Overall Dimensions	769.40 × 463.90 × 68.40 mm
Cooling	Natural air cooling
Certifications	CCC, CE, FCC, RoHS
