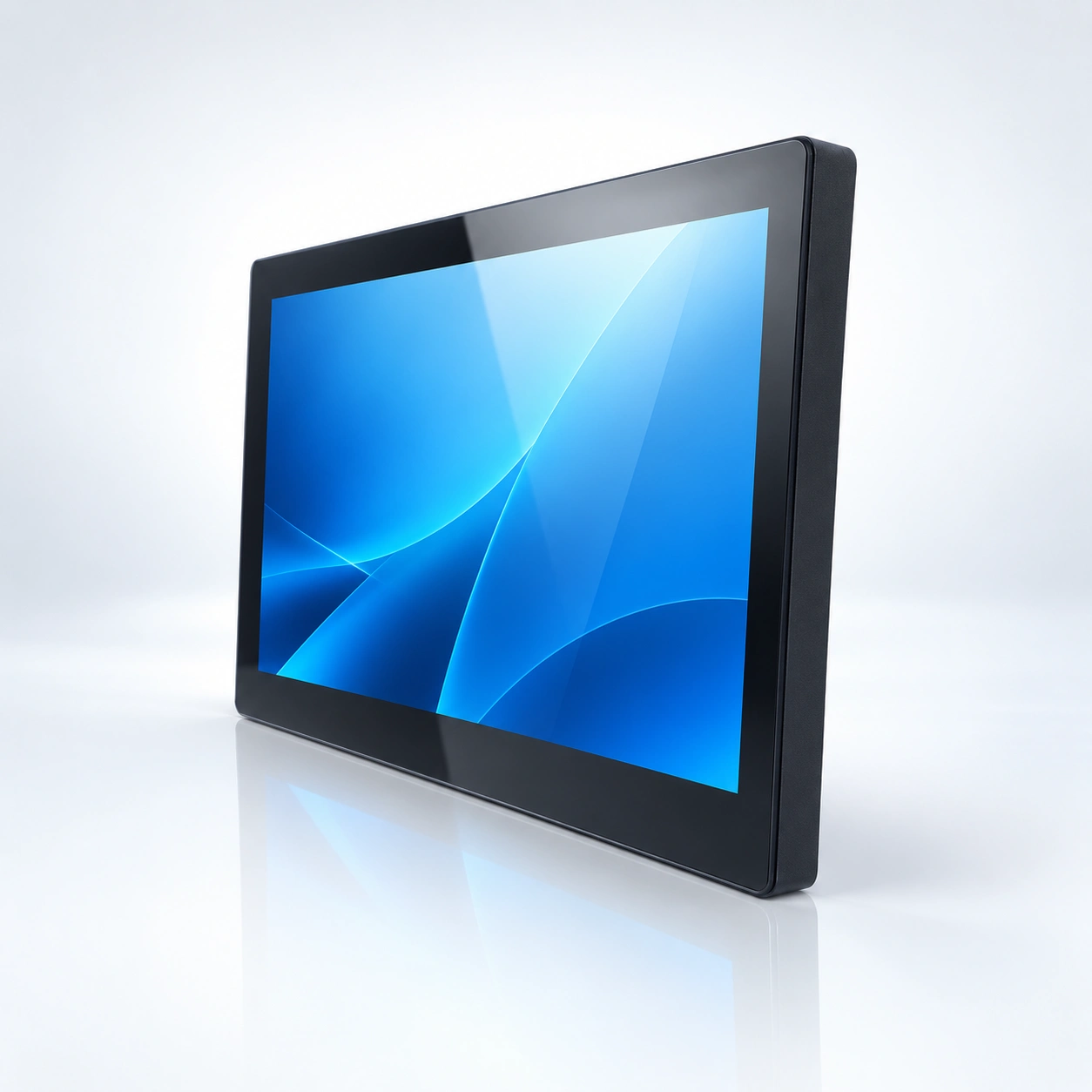

21.5″ 1000-Nit High Brightness IP65 IK10 Open Frame PCAP Touch Monitor

Full HD Optically Bonded Display with Wide Viewing Angles and Rugged Glass

Model 19OTL-P215HDIG-P04 features Full HD resolution, 10-point PCAP touch and VGA/HDMI/DVI connectivity with USB touch, providing flexible integration for industrial, commercial and medical equipment.

Main Features:

- - - 1000 cd/m² high-brightness LED display for bright environments
    - Optically bonded PCAP touchscreen and LCD for improved clarity
    - 6 mm IK10 anti-vandal cover glass for impact protection
    - 10-point PCAP multi-touch with water-resistant operation
    - Full HD 1920 × 1080 resolution with 89° wide viewing angles
    - IP65-rated front protection against dust and water
    - VGA, HDMI, DVI and USB touch interfaces for flexible integration

- 1. 21.5″ 1920*1080

Online service

High Brightness Open Frame Touch Display for Industrial Integration

Built with an open-frame structure, the 19OTL-P215HDIG-P04 combines optical bonding, a 6 mm anti-vandal cover glass and wide 89° viewing angles. Its -20°C to 70°C operating range and IP65-rated front support reliable integration into demanding industrial equipment.

Specification

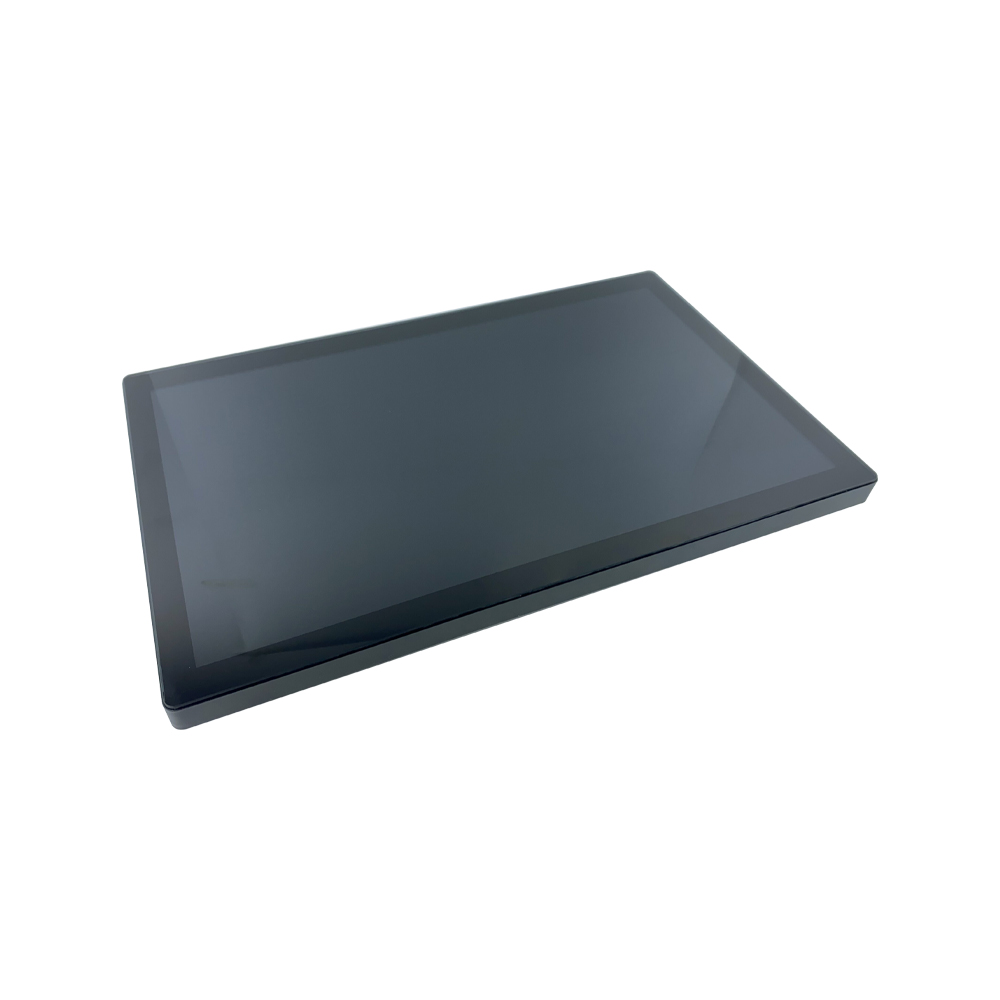

21.5-inch open frame PCAP touch monitor with black flush glass front

Display Size	21.5 inch
Display Resolution	Full HD 1920 × 1080 @ 60 Hz
Brightness	Typ. 1000 cd/m²; min. 950 cd/m² after PCAP
Touch Technology	Projected Capacitive Multi-Point Touch, EETI 80H84 controller
Touch Points	10 points
IP / IK Rating	IP65 front / IK10
Optical Bonding / Cover Glass	Optical bonded; 6 mm anti-vandal cover glass
Viewing Angle	89°/89° left/right; 89°/89° vertical/horizontal
Operating Temperature	-20°C to 70°C

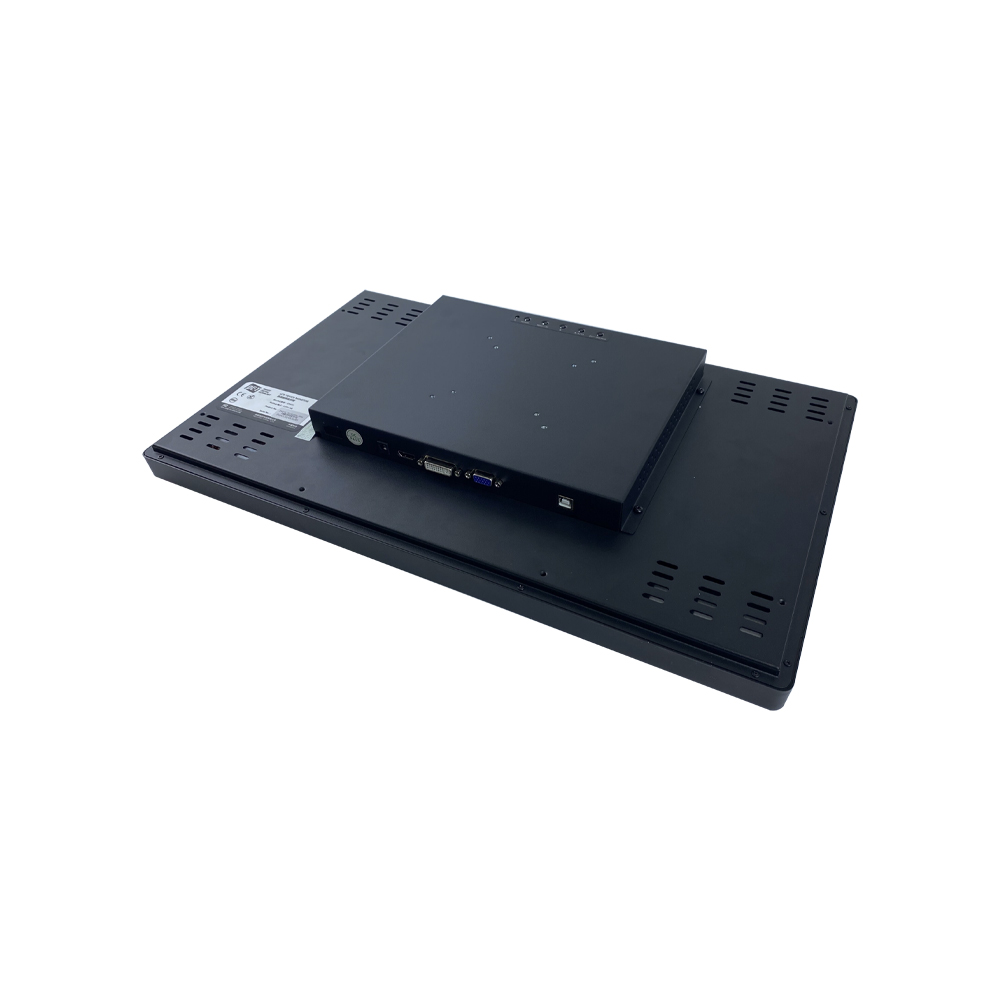

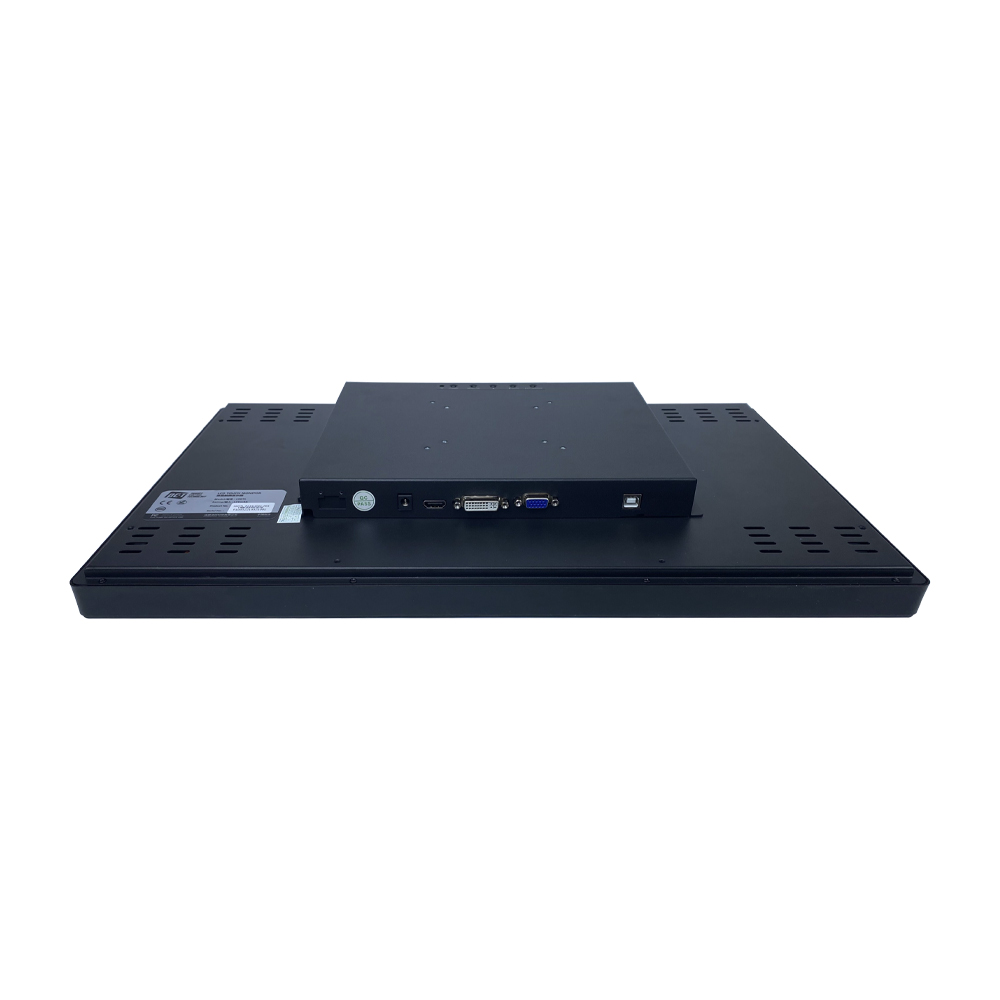

Video / Touch Interfaces	VGA, HDMI, DVI; USB Type-B for touch
Aspect Ratio	16:09
Contrast Ratio	Typ. 1000:1
Display Colors	16.7 million colors
Backlight	LED
MTBF	50,000 hours
Active Area	LCD: 476.64 × 268.11 mm; PCAP: 476.60 × 268.10 mm
Input Voltage	12 V / 4 A
Overall Dimensions	518.40 × 315.40 × 59.80 mm

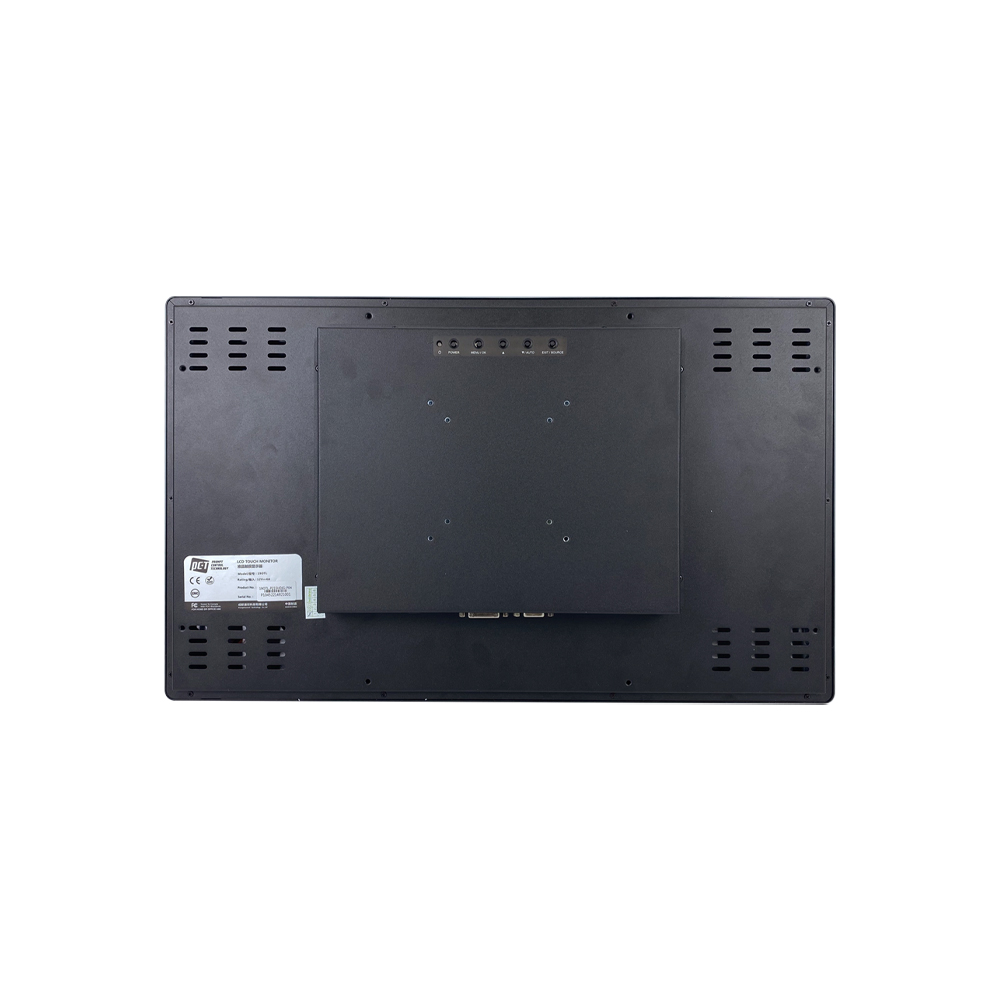

Mounting / Construction	Open Frame
Certifications / Compliance	EN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, FCC Part 15, RoHS IEC 62321
