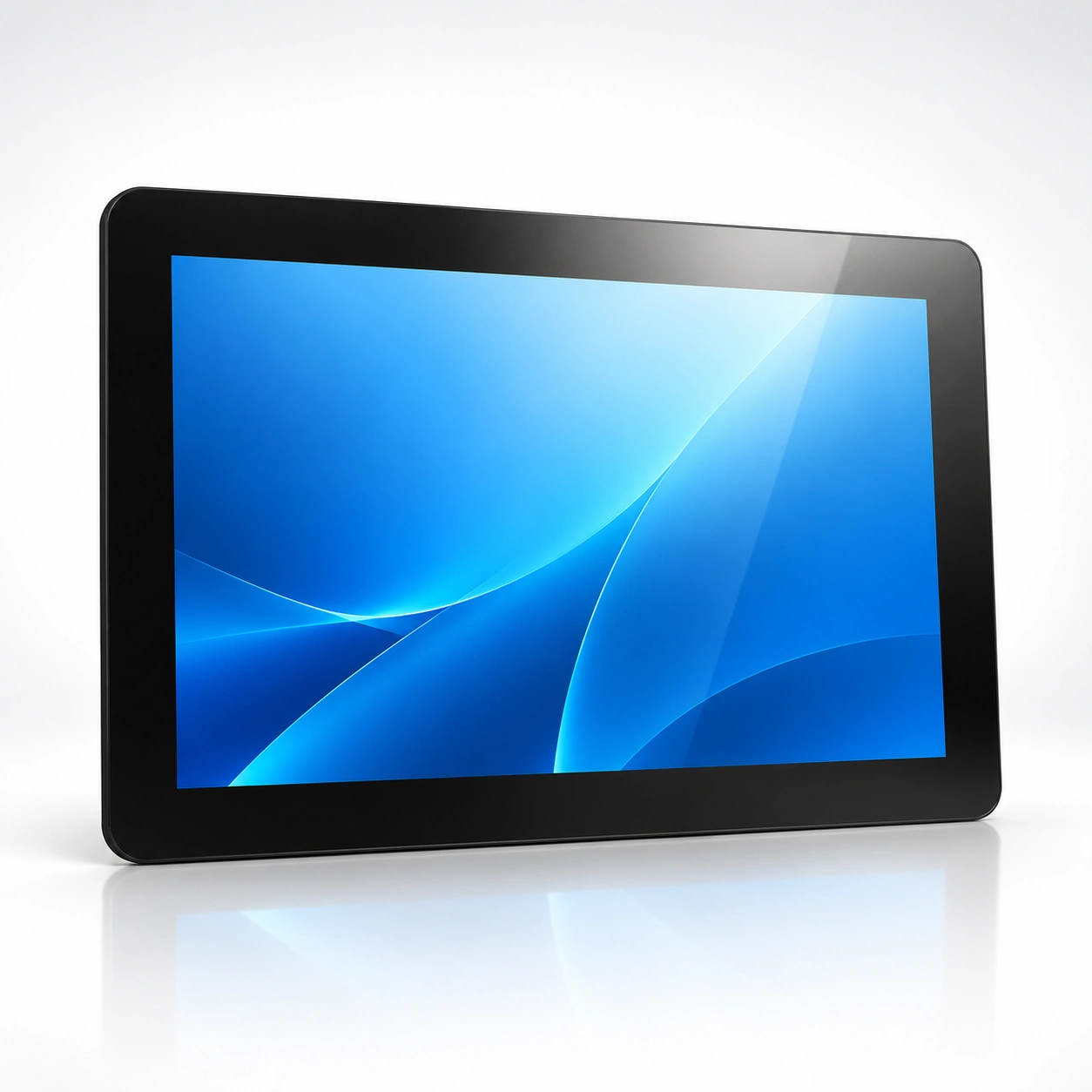

10.1″ 1200-Nit IP65 IK10 Outdoor PCAP Touch Monitor

Optical Bonding with AG70 Anti-Glare Glass and Automatic Brightness Control

Model PCT01-101T03-P121 is a high-brightness industrial-grade touch monitor using a 5 mm projected capacitive touchscreen. It supports Win7, Win8, Android & Linux by multi-touch function and is widely applied to industrial, commercial and medical devices. With optical bonding and VGA/HDMI/DVI connectivity, it supports flexible outdoor system integration.

Main Features:

- 1200 cd/m² sunlight-readable brightness with AG70 anti-glare glass
- OCR optical bonding for reflection-free display clarity
- IP65 front and IK10 vandal-proof rating with 5mm tempered glass
- Integrated light sensor for automatic brightness adjustment
- UV-resistant aluminum alloy enclosure for extreme outdoor environments

10.1″ 1280*800

Online service

Sunlight-Readable Touch Display for Outdoor Industrial Integration

The PCT01-101T03-P121 combines an aluminum alloy frame, AG70±10 anti-glare cover glass and optical bonding for improved outdoor visibility. IP65 front protection, IK10 impact resistance, UV resistance and automatic brightness adjustment via an external light sensor support reliable operation in demanding outdoor equipment.

Speification

10.1-inch high brightness outdoor PCAP touch monitor

Product	10.1″ Outdoor PCAP Touch Monitor
White Luminance	Typ. 1200 cd/m² (after PCAP Min. 1000 cd/m²)
Display Resolution	1280×800 / 60Hz
Lamination Type	OCR Optical Bonding (WACKER SilGel ® 612)
Cover Glass & Hardness	5mm Physical Tempered Glass (AG70 Anti-Glare, 7H)
IK / IP Protection Level	IK10 / IP65 (Front)

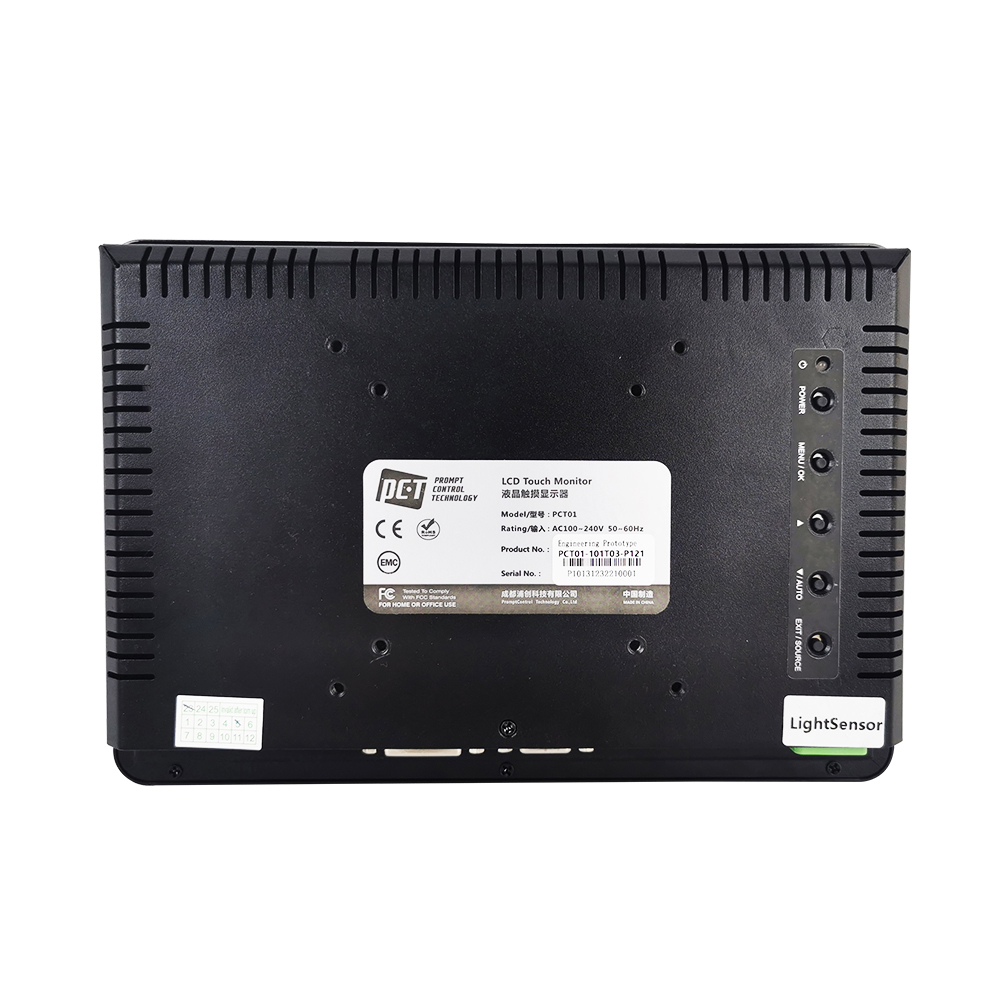

Brightness Control	Automatic Adjusting by External Light Sensor
Touch Type	Projected Capacitive Multi-Touch (EETI 80W32 Controller)
Touch Points	10 Points (Supports Finger / Touch Pen)

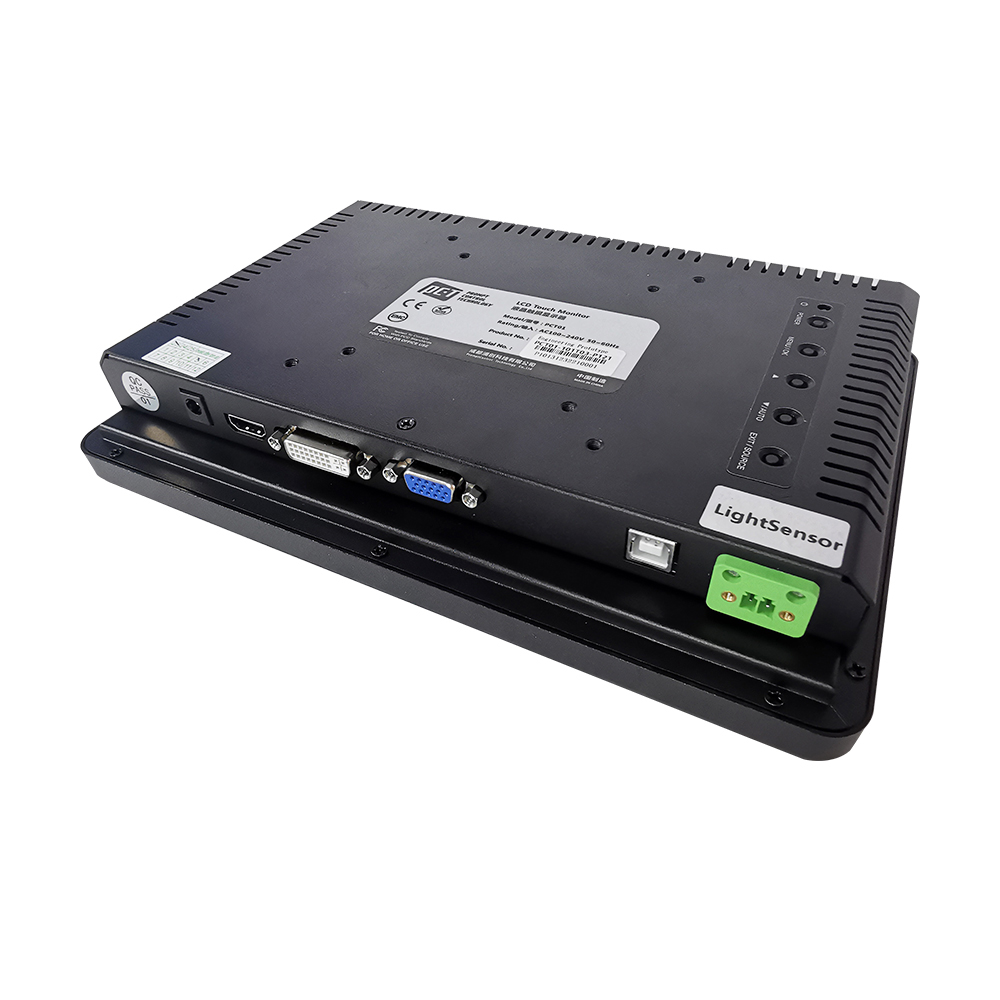

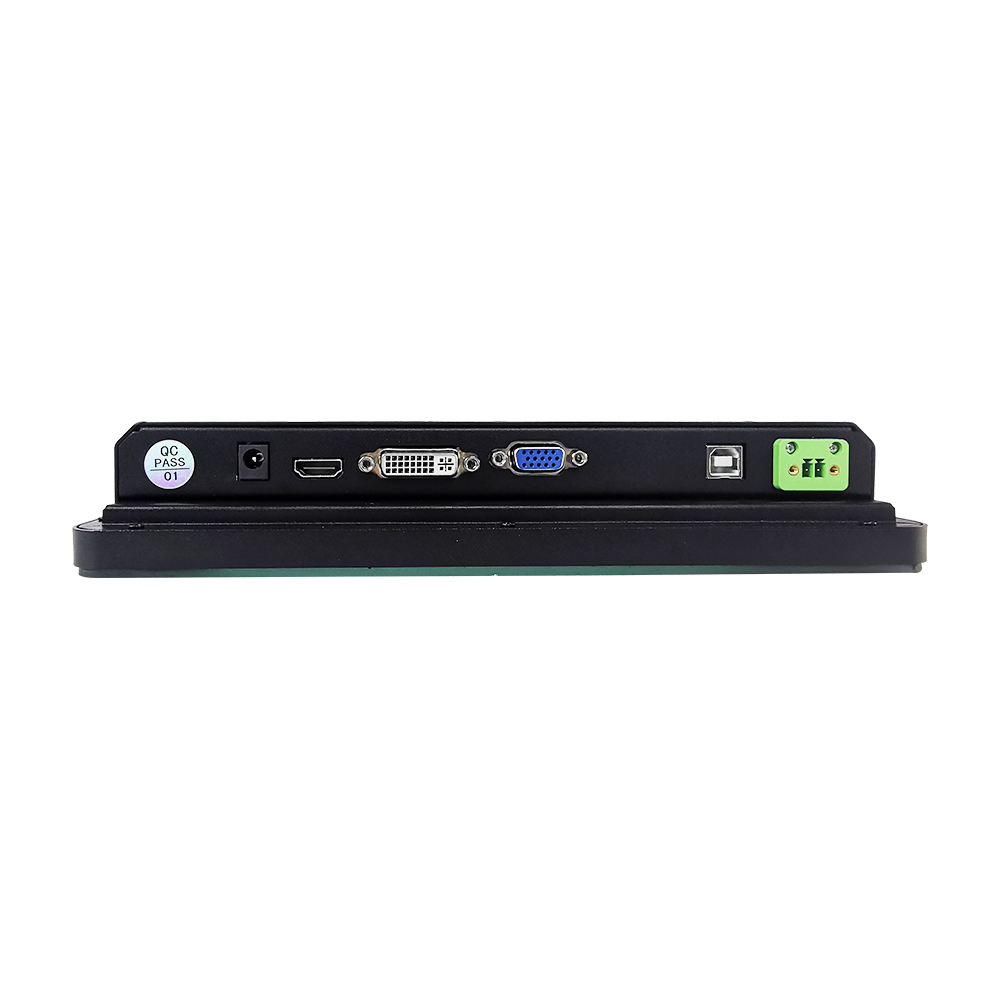

Interface	VGA, HDMI (DDC/CI), DVI, Light Sensor Port
Display Ratio & Mode	16:9 / Normally Black
Contrast Ratio	Typ. 900:1
Viewing Angle	85°/85° (Horizontal / Vertical)

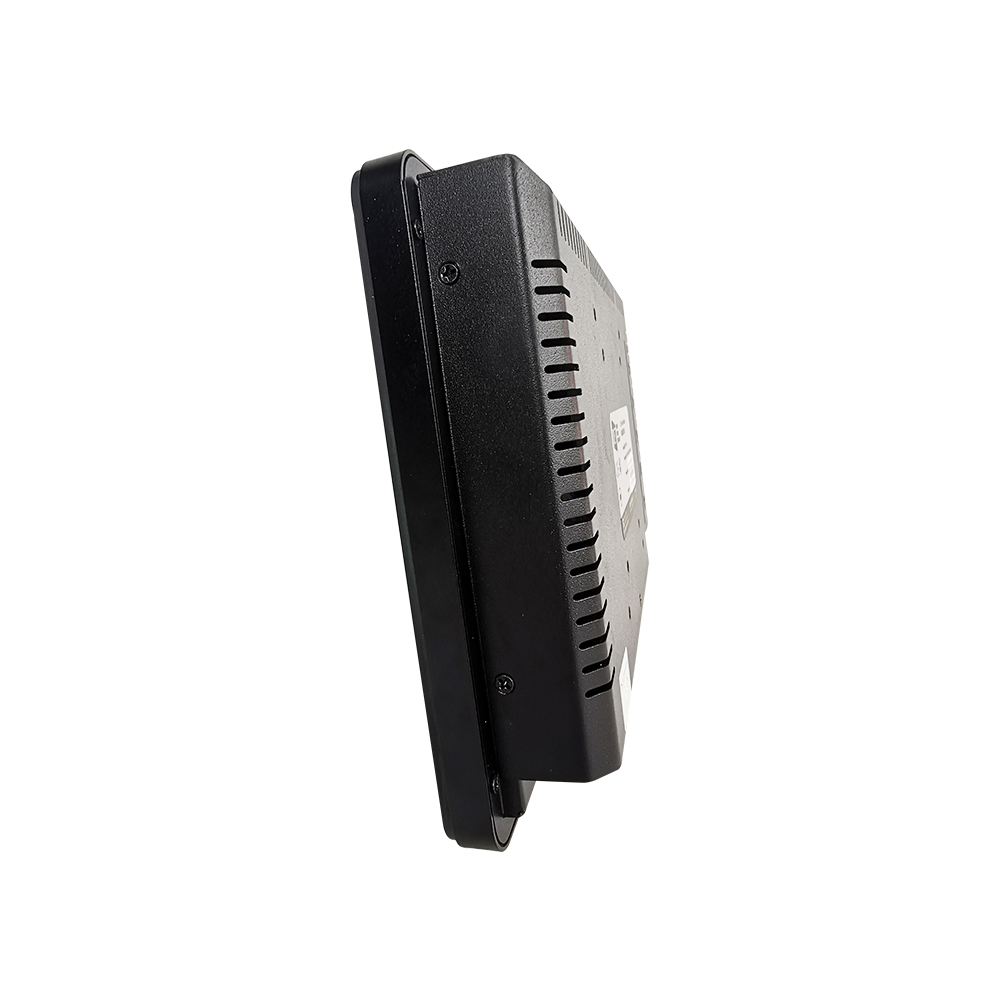

Product Construction	Aluminum Alloy Metal Frame (Black Anodic Oxidation)
Outline Dimension	254.75 mm × 175.25 mm × 44.80 mm
Environment Parameter	Operating: -20°C ~ 70°C, Storage: -30°C ~ 80°C
Input Voltage & Power	DC 12V / 5A (Typ. 30W / Max. 40W)
Warranty	12 Months
