Optically Bonded Industrial Touch Display for Embedded Equipment Integration
The 19OTL-P17HDIG-P combines an open-frame structure with optical bonding, laminated anti-vandal cover glass and AG85 treatment for improved visibility under strong ambient light. Its IP65-rated front, IK08 impact protection, water-resistant touch function and industrial mounting structure support integration into control panels, terminals and other embedded equipment.
Specification

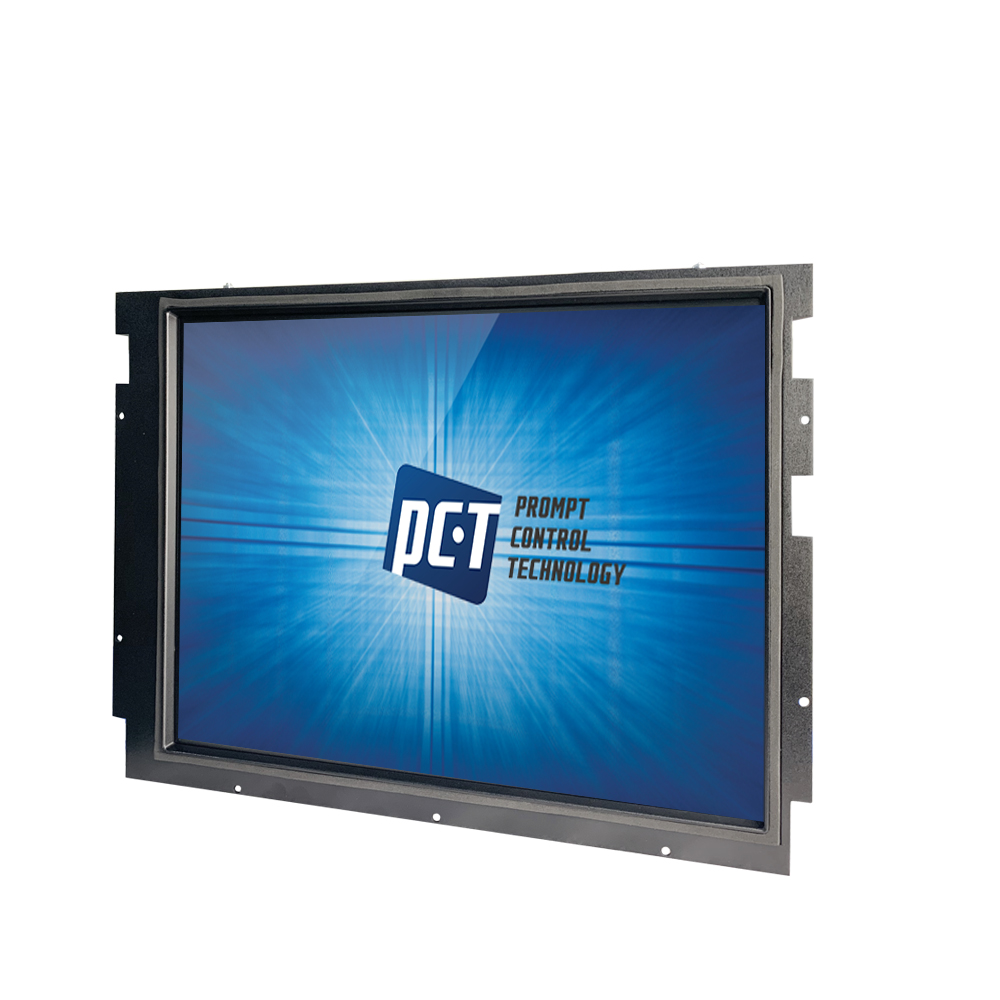

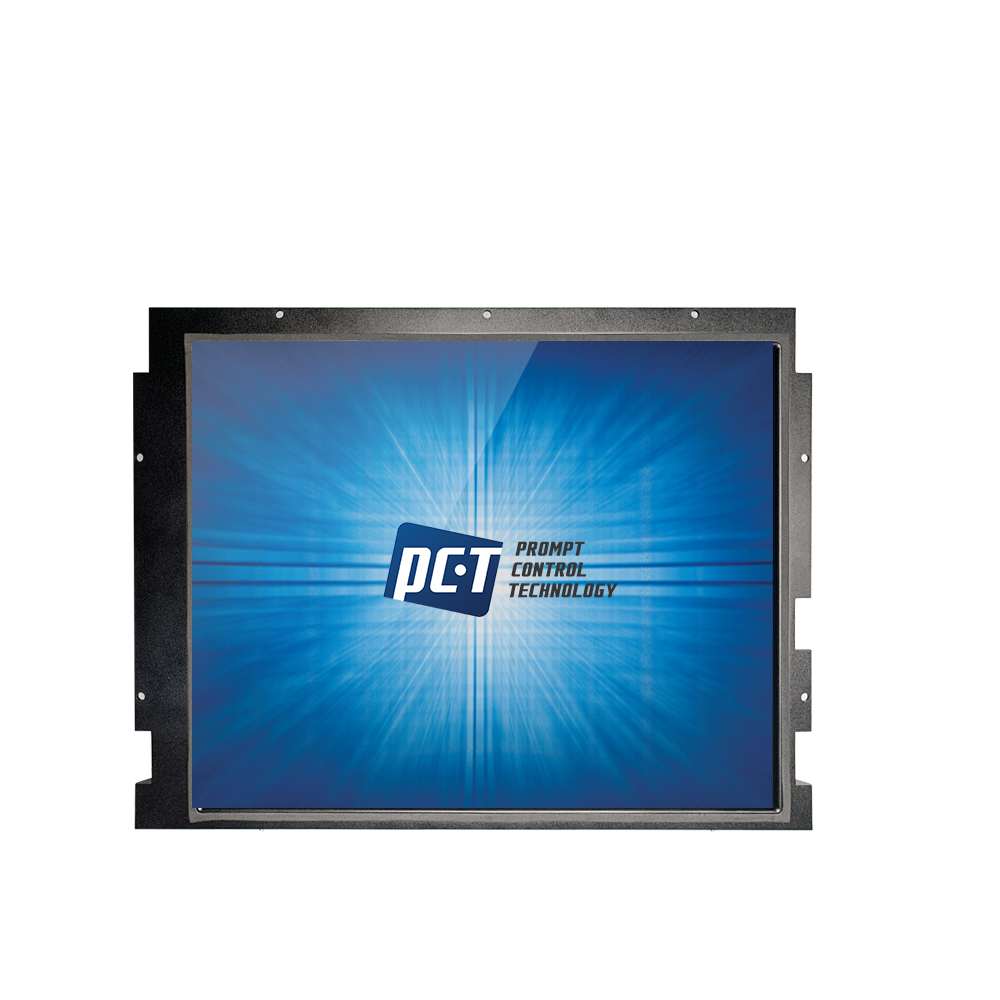

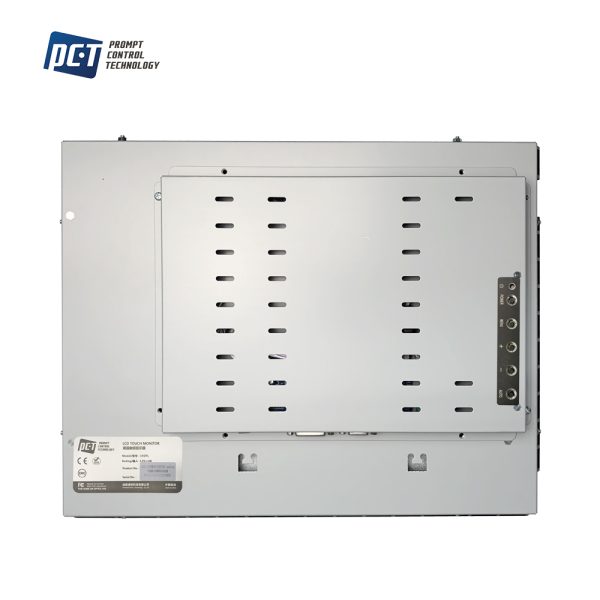

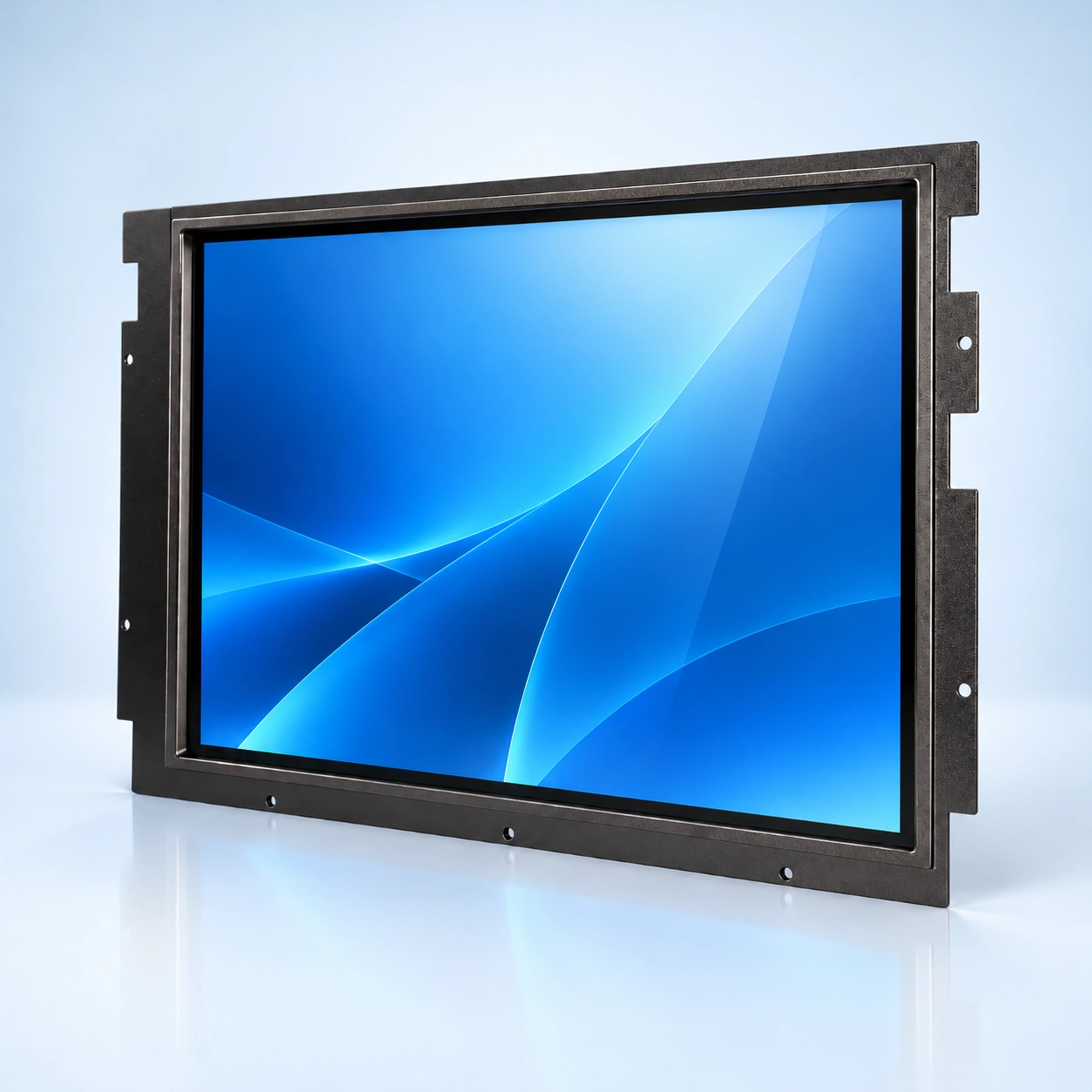

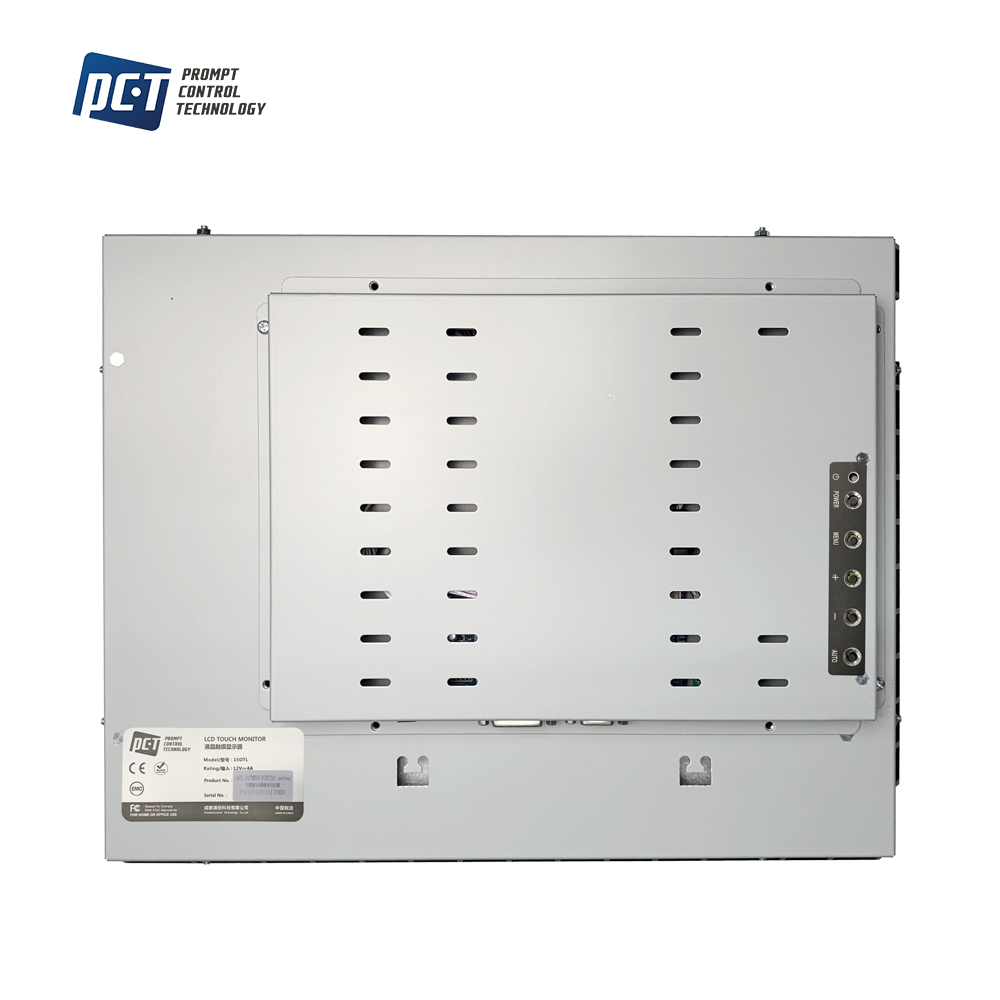

17-inch open frame PCAP touch monitor with rugged industrial mounting frame
| Display Size | 17 inch |
| Display Resolution | SXGA 1280 × 1024 @ 60 Hz |
| Brightness | Typ. 550 cd/m²; min. 500 cd/m² after PCAP |
| Touch Technology | Projected Capacitive Multi-Point Touch, EETI 3161 controller |
| Touch Points | 10 points |
| IP / IK Rating | IP65 front / IK08 |
| Optical Bonding / Cover Glass | Optical bonding; laminated anti-vandal cover glass; thickness conflict – please verify |
| Viewing Angle | 85°/85° left/right; 80°/80° vertical/horizontal |
| Operating Temperature | 0°C to 55°C |

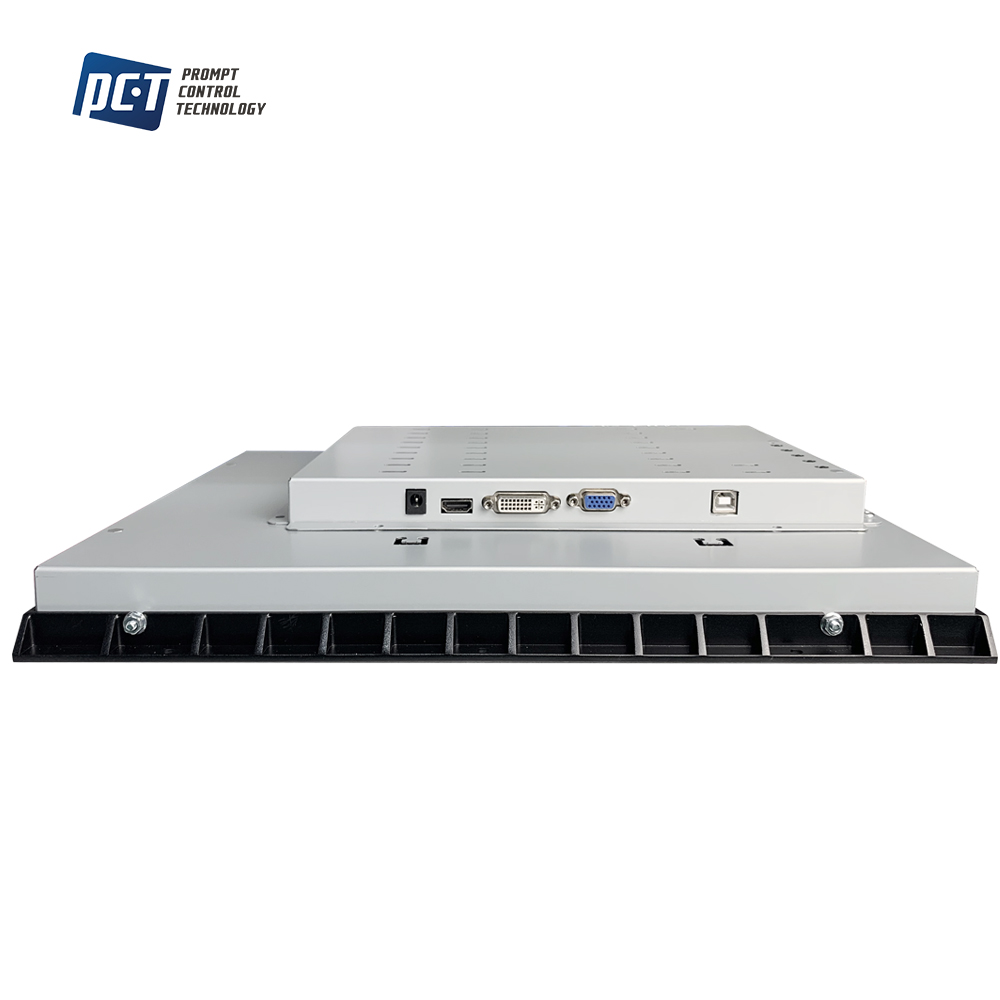

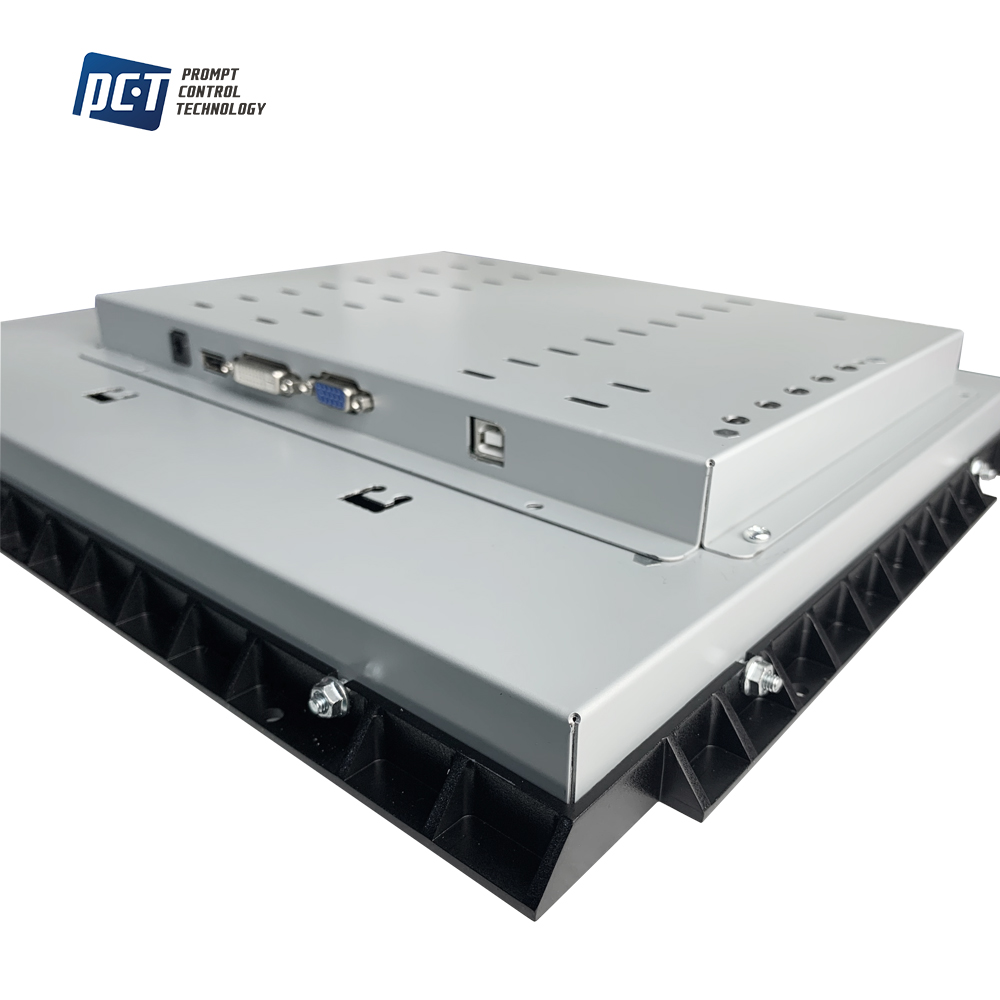

| Video / Touch Interfaces | VGA, HDMI, DVI; USB Type-B for touch |
| Aspect Ratio | 4:03 |
| Contrast Ratio | Typ. 1000:1 |
| Display Colors | 16.7 million colors |
| Backlight | LED |
| Active Area | LCD: 339.92 × 270.33 mm; PCAP: 338.92 × 271.34 mm |
| Input Voltage | 12 V / 4 A |
| Overall Dimensions | 409.30 × 316.55 × 60.20 mm |
| Product Construction | Open Frame |
| Operating Humidity | 20%–90% |
| Certifications / Compliance | EMC: EN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3; FCC Part 15; RoHS IEC62321 |
