Rugged High-Brightness Touch Display for Outdoor Industrial Integration
The 15OTL-N15HDIG-P05 combines a 15-inch XGA display, open-frame construction and chemically strengthened PCAP glass for demanding outdoor equipment. Its IP65 front protection, IK10 impact resistance, AG70 coating and -30°C to 80°C operating range support installation in kiosks, terminals and other industrial systems requiring durable touch interaction and high ambient-light visibility. 601150103-15OTL-N15HDIG-P05_Dat…
Specification
15-inch high brightness open frame PCAP touch monitor
| Display Size | 15 inch |
| Display Resolution | 1024 × 768 @ 60 Hz; 70 Hz supported |

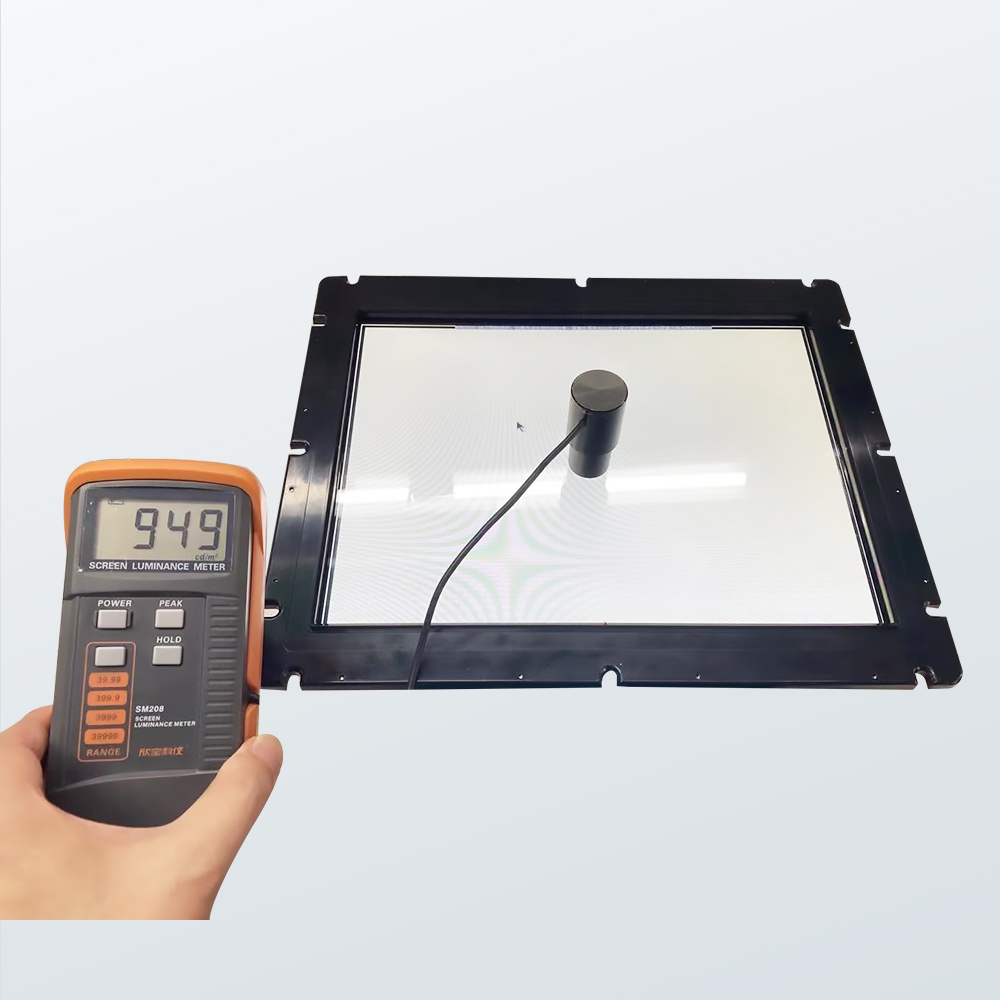

| Brightness | Typ. 1200 cd/m²; min. 1000 cd/m² after PCAP |
| Touch Technology | Projected Capacitive Multi-Point Touch, EETI 80H60 controller |

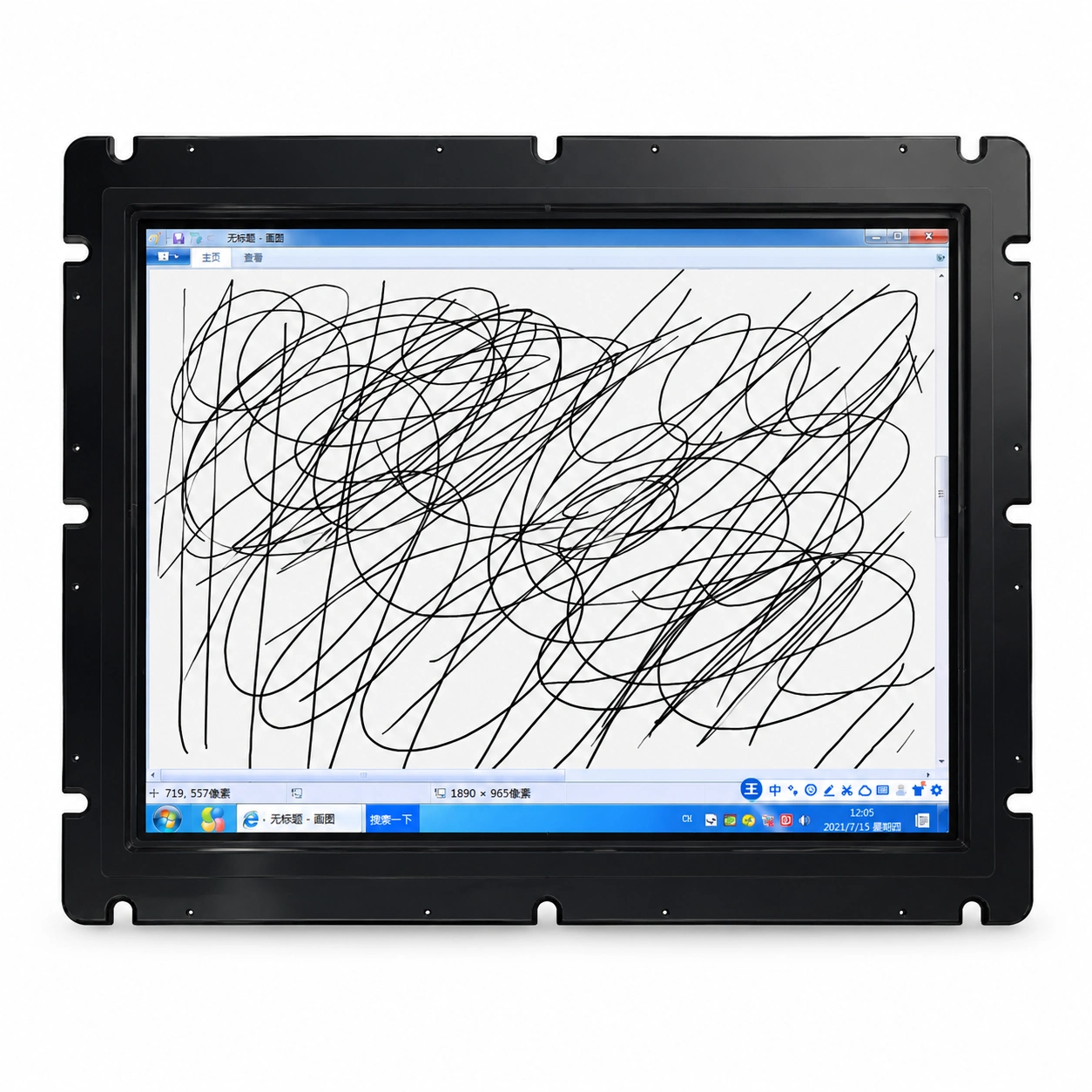

| Touch Points | 10 points |
| IP / IK Rating | IP65 front / IK10 |
| Cover Glass | 6 mm chemically strengthened glass, 7H |
| Surface Treatment | AG70±10 coating |
| Viewing Angle | 88°/88° left/right; 88°/88° vertical/horizontal |
| Operating Temperature | -30°C to 80°C |

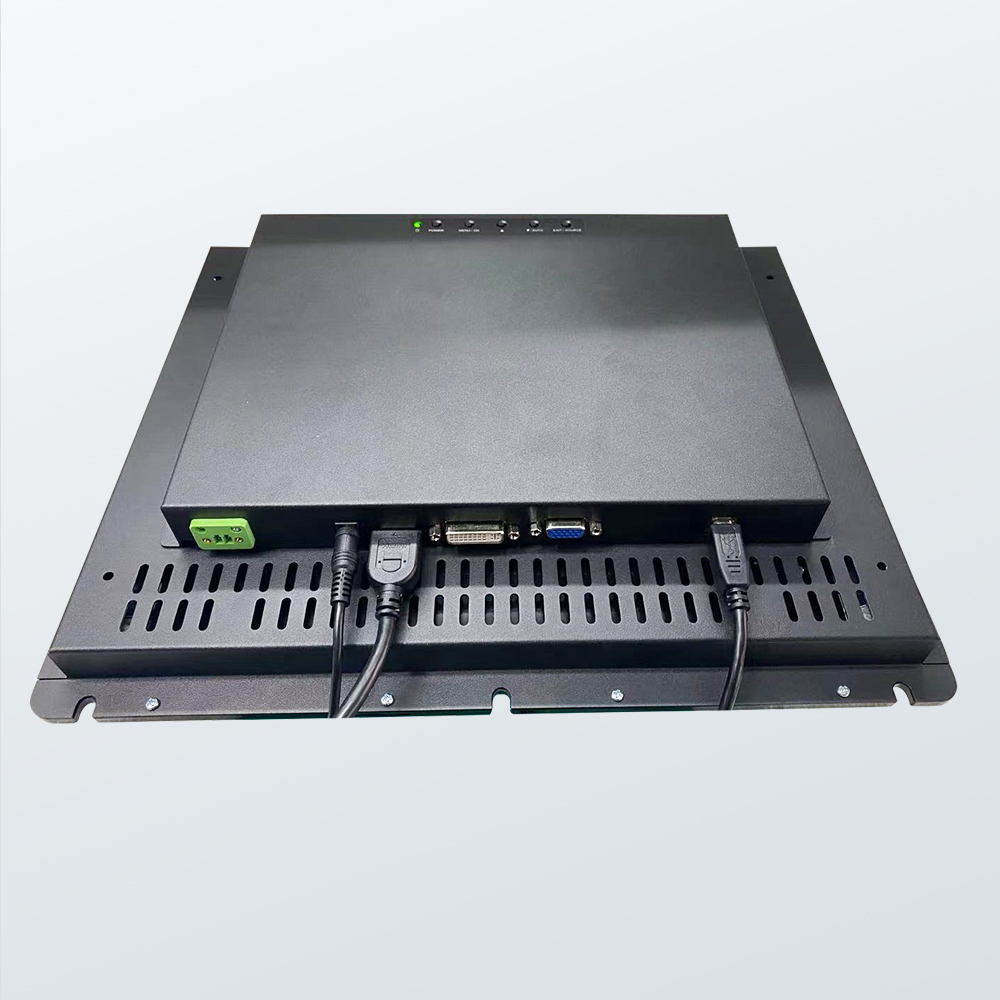

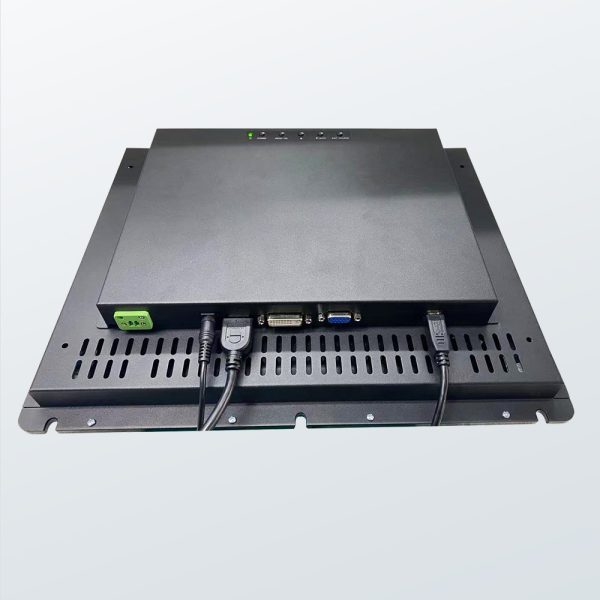

| Video / Touch Interfaces | VGA, DVI, HDMI; USB 2.0 touch |
| Aspect Ratio | 4:3 |
| Contrast Ratio | Typ. 2500:1 |
| Backlight | LED |
| Backlight MTBF | 50,000 hours |
| Active Area | LCD: 304.128 × 228.096 mm |
| Input Voltage | 24 VDC |
| Overall Dimensions | 366 × 303 × 58.70 mm |
| Product Construction | Open frame with plastic bezel |
| Certifications / Compliance | CCC, CE, FCC, RoHS |
