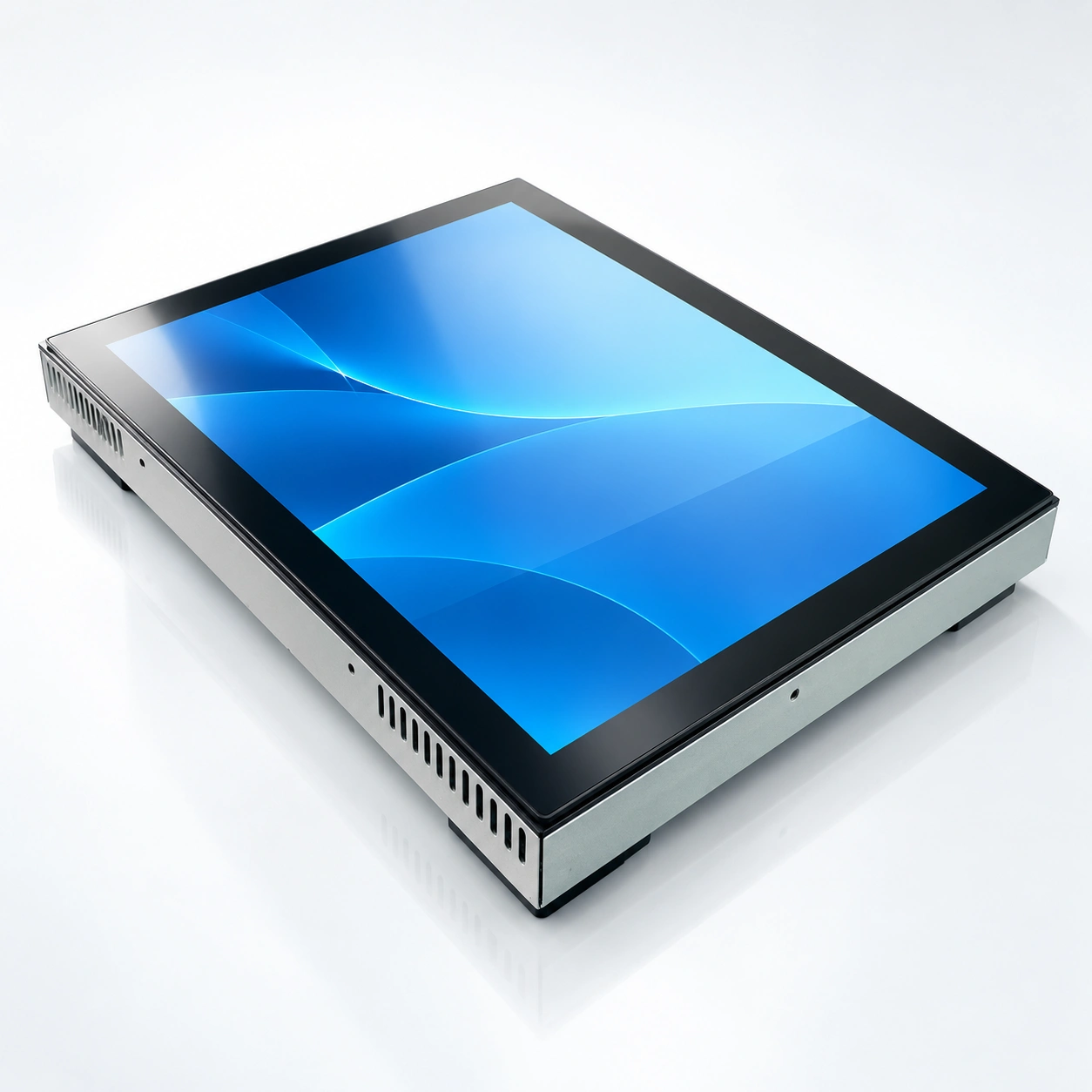

19″ 1000-Nit High Brightness IP65 IK10 Outdoor PCAP Touch Monitor

4 mm AG60 Tempered Glass with -30°C to 85°C Wide-Temperature Operation

Model 19OTL-P19HDIG-P combines 1280 × 1024 resolution, 10-point PCAP touch and VGA/HDMI/DVI connectivity with USB touch, supporting reliable integration into outdoor and industrial equipment

Main Features:

- - 1000 cd/m² high-brightness ultra-low-power LED backlight
  - AG cover glass supports direct sunlight readability
  - Wide viewing angles for landscape or portrait installation
  - 10-point multi-touch with glove and water-resistant touch support
  - -30°C to 85°C operating temperature for outdoor applications
  - VGA, HDMI and DVI video inputs with USB touch connectivity
  - IP65 front protection and IK10 impact resistance

19″ 1280*1024

Online service

High Brightness Industrial Touch Display for Outdoor Integration

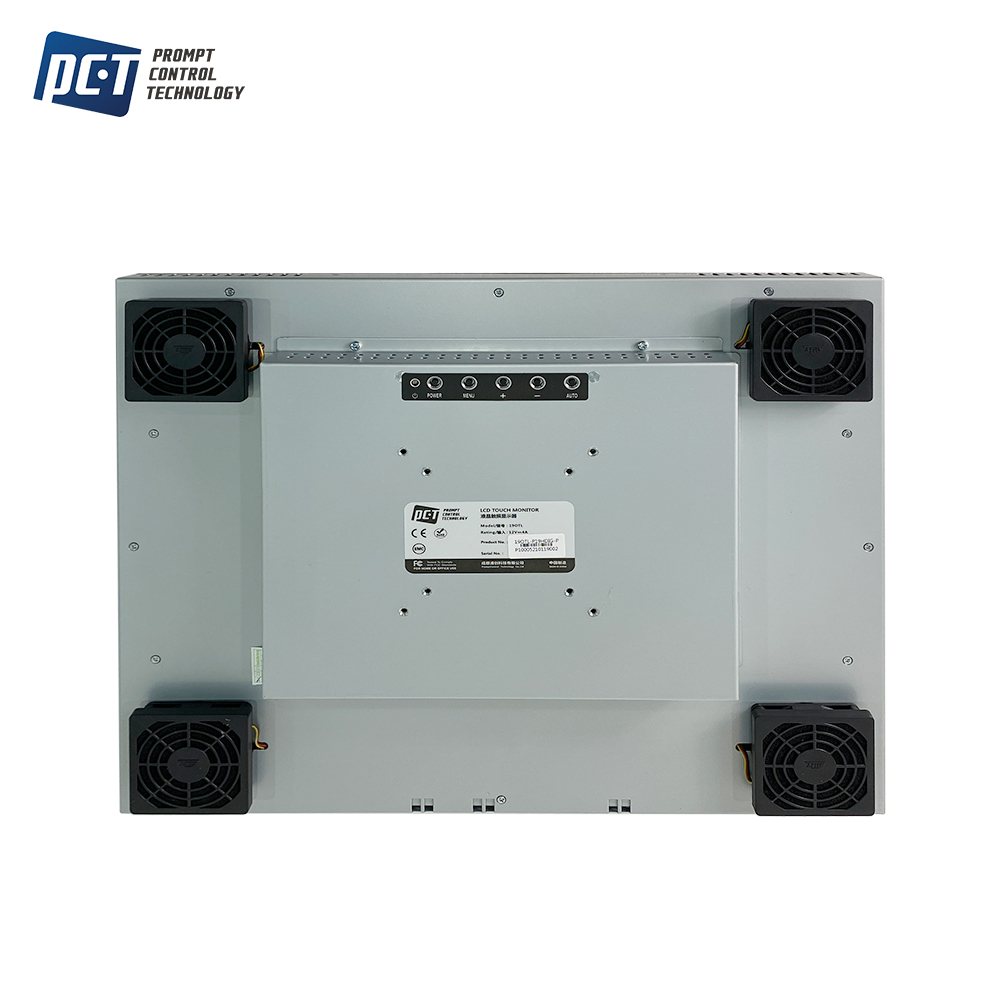

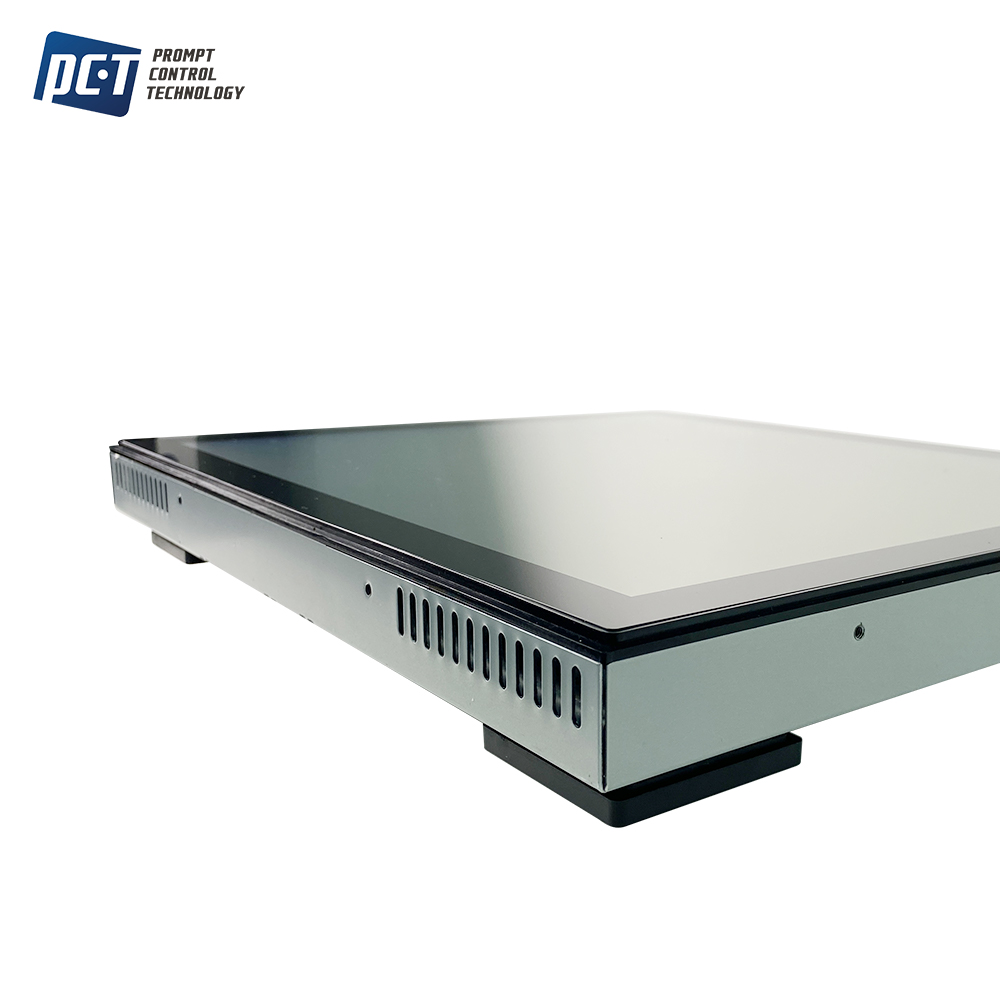

Built with a flat-front structure, the 19OTL-P19HDIG-P supports landscape or portrait installation and operates from -30°C to 85°C. Four low-noise cooling fans provide active thermal management, while AG cover glass and wide viewing angles support visibility in demanding industrial environments.

Specification

19 inch 1000-Nit IP65 IK10 Outdoor PCAP Touch Monitor

Display Size	19 inch
Display Resolution	1280 × 1024
Brightness	Typ. 1000 cd/m²; min. 950 cd/m² after PCAP
Touch Technology	Projected Capacitive Multi-Point Touch, EETI touch controller
Touch Points	10 points
IP / IK Rating	IP65 front / IK10
Cover Glass	4 mm AG60 tempered glass, 8H hardness
Viewing Angle	85°/85° left/right; 80°/80° vertical/horizontal
Operating Temperature	-30°C to 85°C

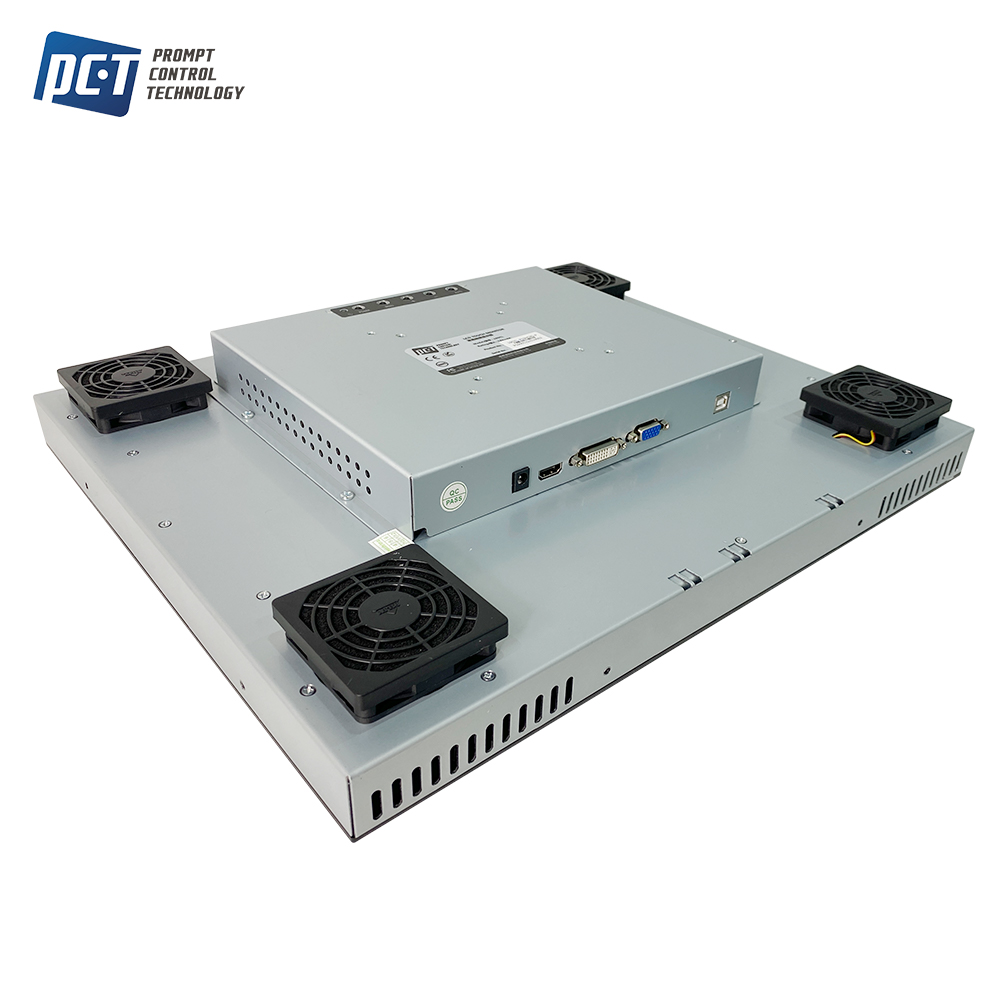

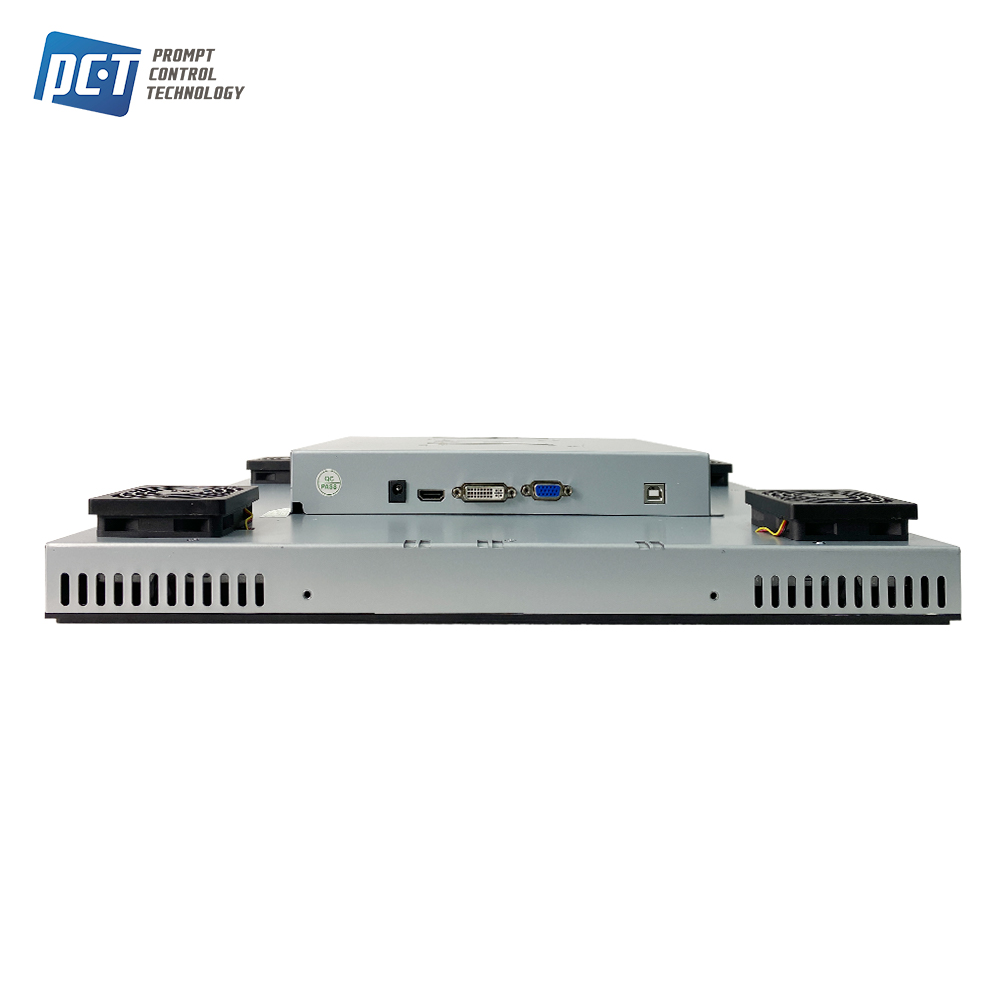

Video / Touch Interfaces	VGA, HDMI, DVI; USB 2.0 for touch
Aspect Ratio	16:09
Contrast Ratio	Typ. 1000:1
Display Colors	16.7 million colors
Backlight	LED
MTBF	50,000 hours
Active Area	LCD: 376.32 × 301.056 mm; PCAP: 377.30 × 302.00 mm
Input Voltage	12 V / 5 A
Overall Dimensions	428.80 × 356.20 × 70.45 mm
Cooling System	Active cooling with 4 low-noise fans, 18 dBA ±10%
Certifications	CCC, CE, FCC, RoHS
