32″ 2500-Nit High Brightness IP65 IK10 Outdoor PCAP Touch Monitor

Optical Bonding with 6 mm AG70 Anti-Glare Glass and Automatic Brightness Control

Model PCT01-32T03-191 combines Full HD resolution, 10-point PCAP touch, optical bonding and automatic brightness control with VGA/HDMI/DVI connectivity, supporting integration into demanding outdoor industrial equipment.

Main Features:

- - 2500 cd/m² high-brightness LED display for direct sunlight environments
  - AG70±10 anti-glare cover glass for improved sunlight readability
  - Optically bonded LCD and 6 mm cover glass for enhanced clarity
  - 10-point PCAP multi-touch for responsive operator control
  - IK10 tempered glass and IP65 front protection for rugged use
  - IP65 front bezel with 4mm anti-vandal tempered glass
  - Full HD 1920 × 1080 resolution with 89° wide viewing angles
  - Automatic brightness adjustment via internal light sensor

32″ 1920*1080

Online service

High Brightness Optically Bonded PCAP Display with Rugged Glass for Outdoor Industrial Integration

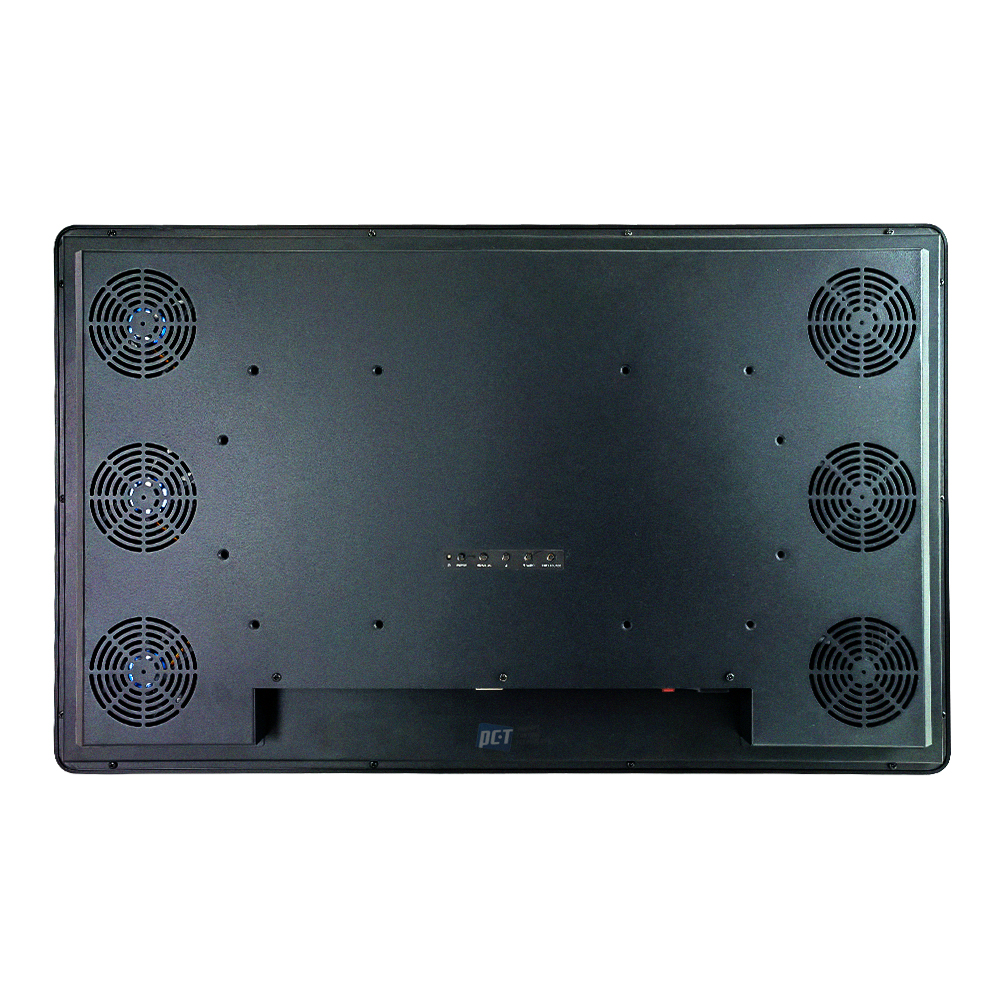

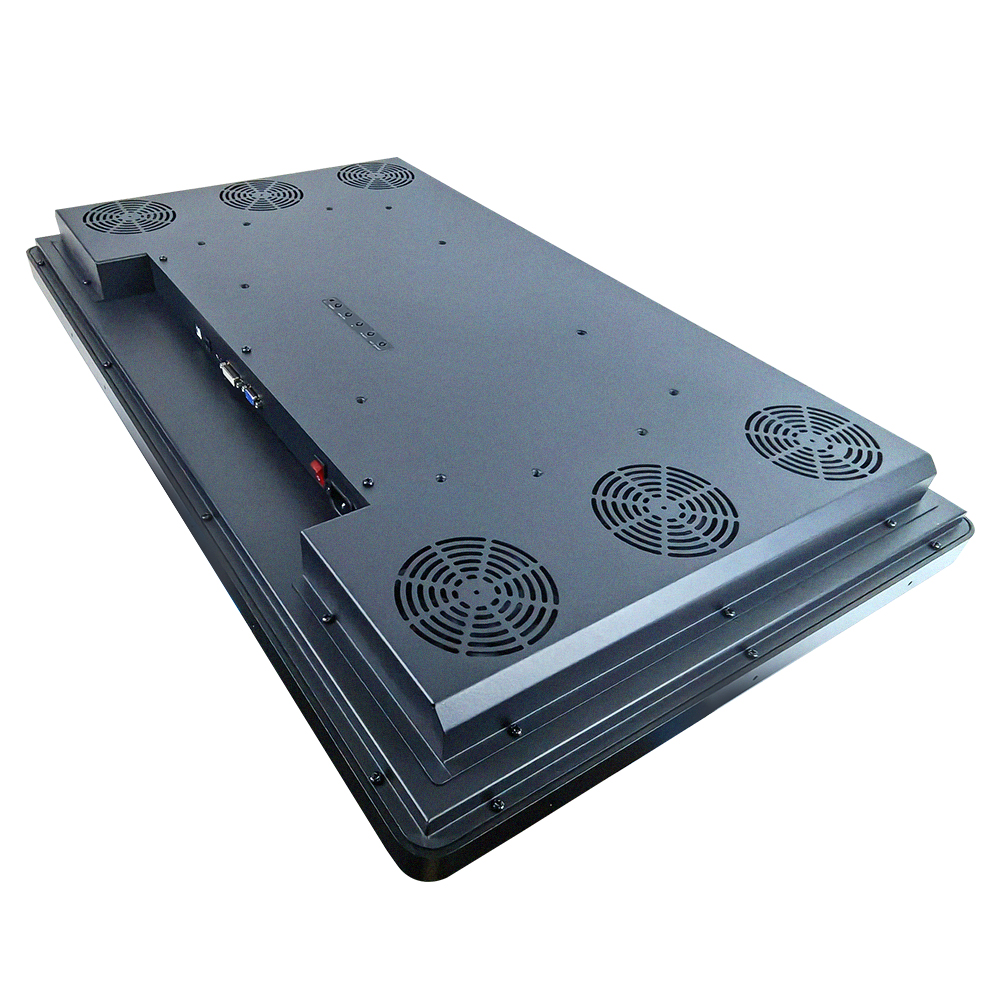

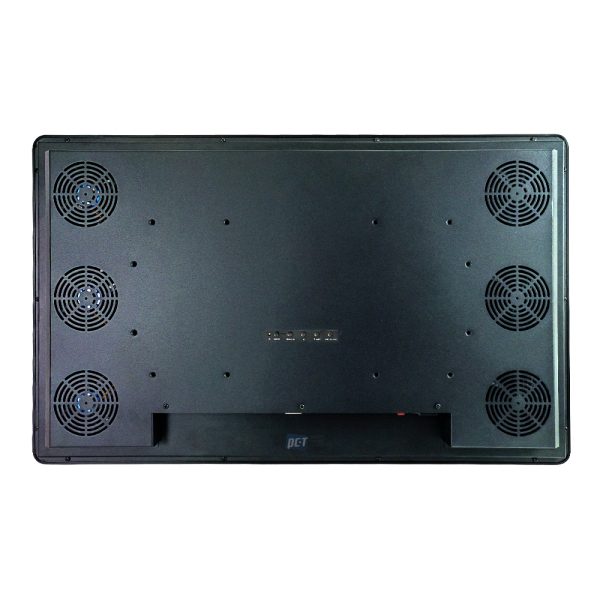

The PCT01-32T03-191 uses an aluminum alloy metal bezel, optically bonded 6 mm tempered cover glass and active six-fan cooling for demanding outdoor operation. An internal light sensor automatically adjusts LCD brightness, while the -20°C to 70°C operating range supports reliable use across changing environmental conditions.

Specification

32-inch high brightness outdoor PCAP touch monitor 2500 cd/m²

Display Size	32 inch
Display Resolution	1920 × 1080

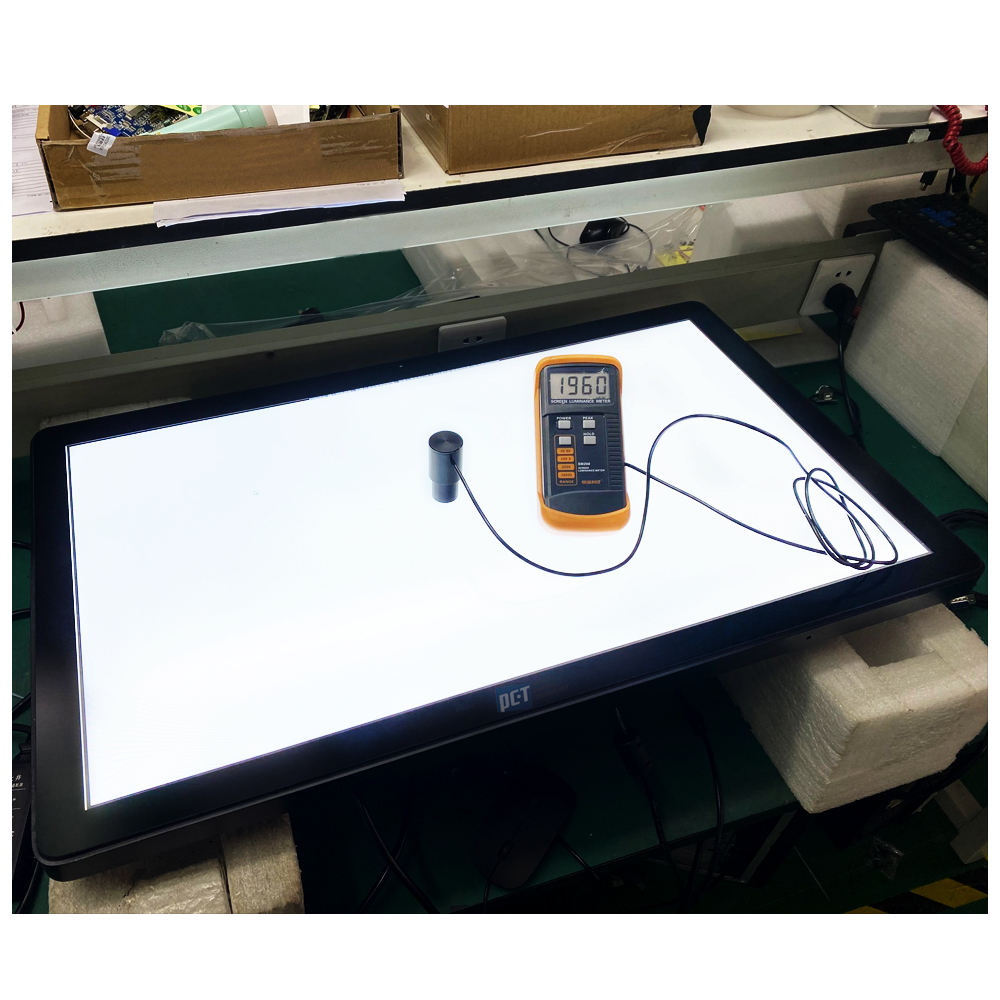

Brightness	Typ. 2500 cd/m²; full monitor min. 2200 cd/m²
Touch Technology	Projected Capacitive Multi-Point Touch, 80H84 controller
Touch Points	10 points
IP / IK Rating	IP65 front / IK10
Optical Bonding / Cover Glass	Optical bonding; 6 mm AG70±10 tempered glass, 7H scratch resistance
Viewing Angle	89°/89° left/right; 89°/89° vertical/horizontal
Operating Temperature	-20°C to 70°C

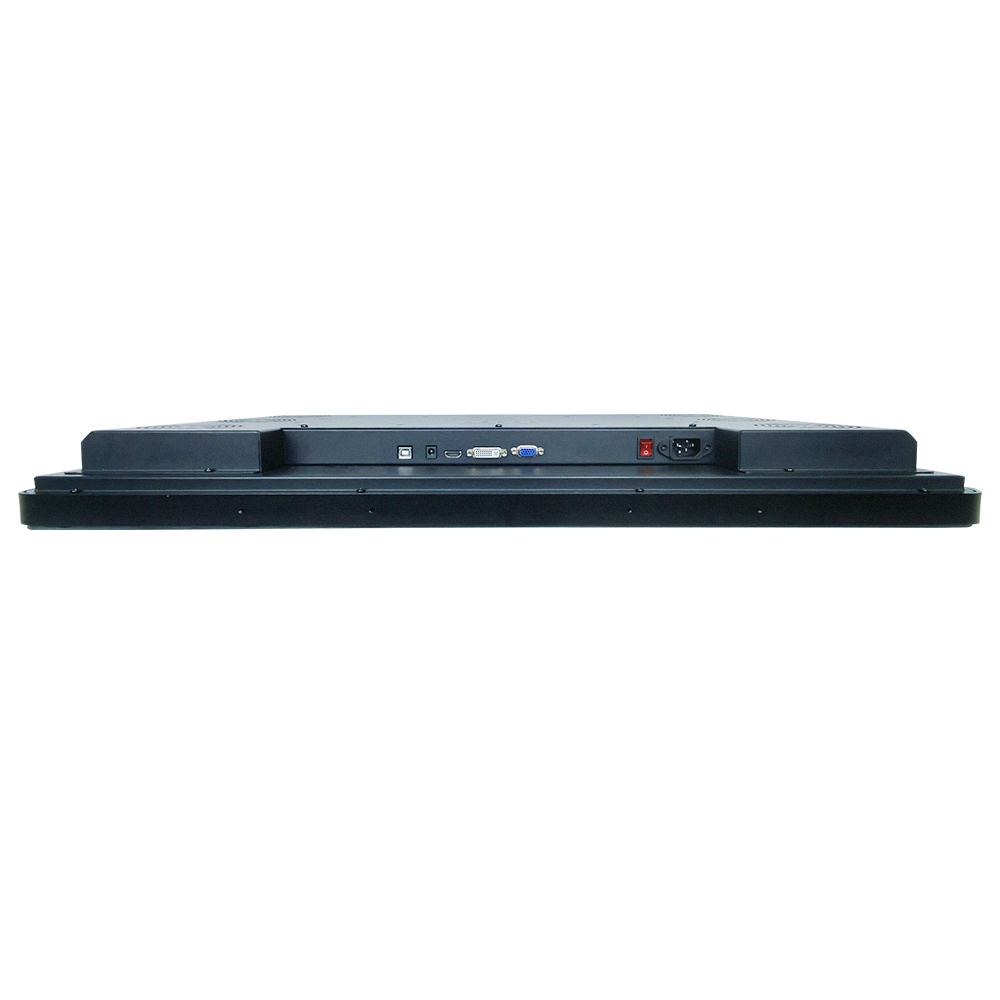

Video / Touch Interfaces	VGA, HDMI, DVI; USB-B for touch
Aspect Ratio	16:09
Contrast Ratio	Typ. 1200:1
Display Colors	8-bit, 16.7 million colors
Backlight	LED
Active Area	LCD: 698.40 × 392.85 mm; PCAP: 699.40 × 393.85 mm
Input Voltage	100–240 VAC, 50/60 Hz
Power Consumption	120 W typ. at 100% brightness; 64 W typ. at 50% brightness
Overall Dimensions	764.50 × 459.70 × 75.00 mm
Brightness Control	Automatic adjustment via internal light sensor
Certifications	CCC, CE, FCC, RoHS.EMC
