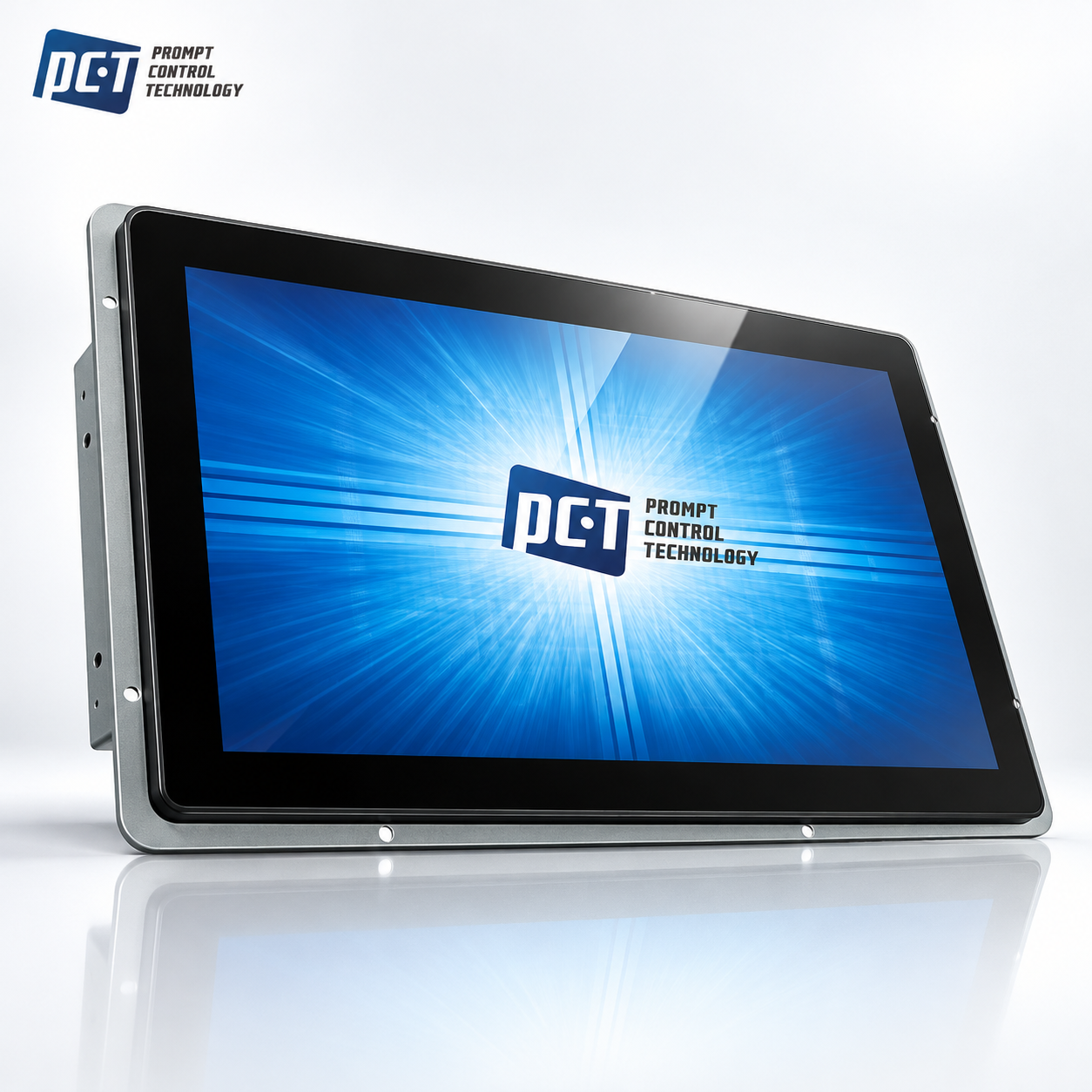

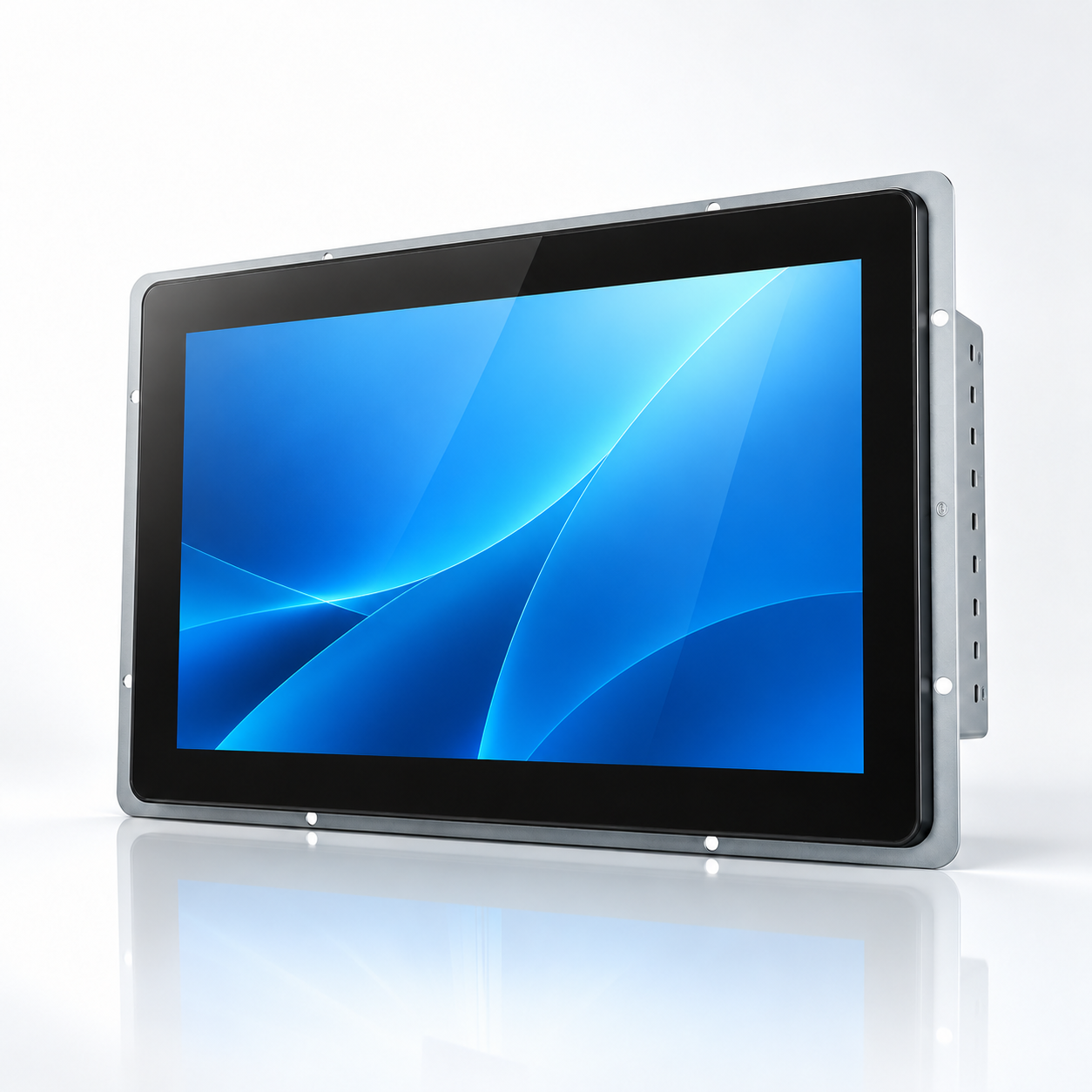

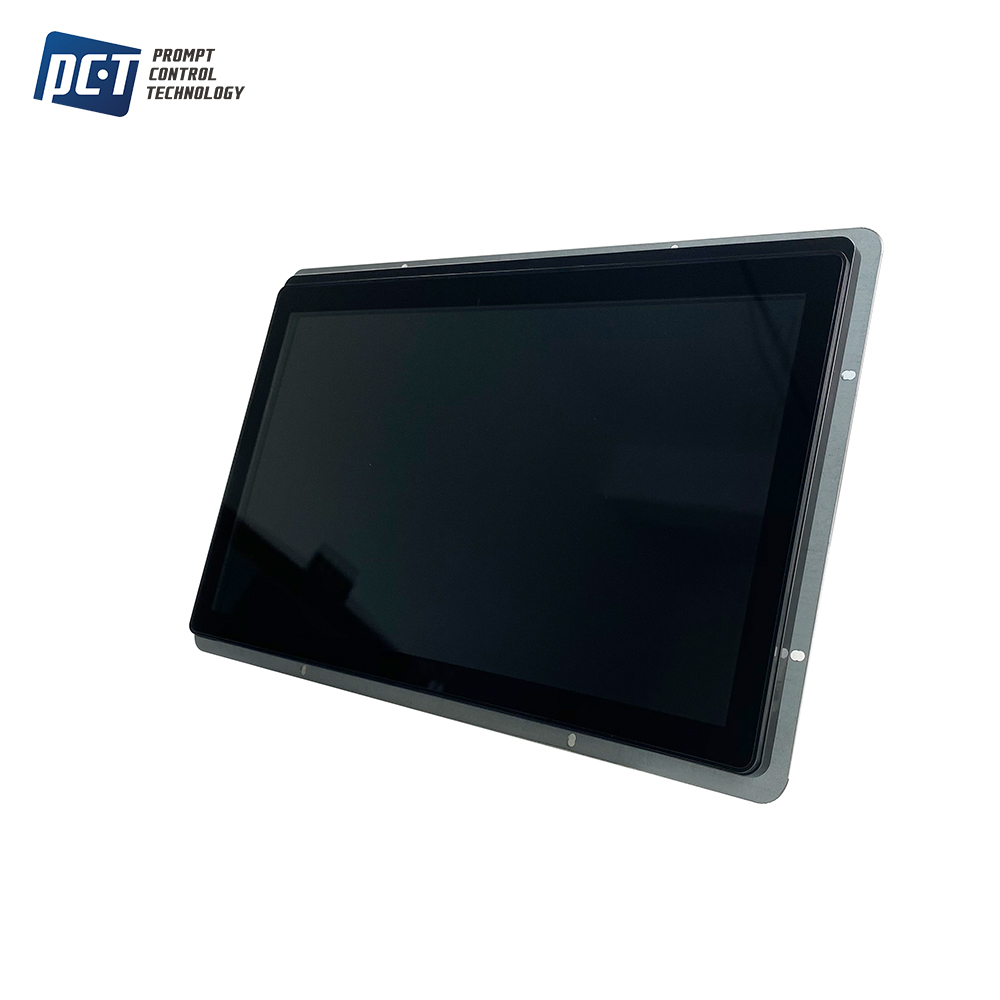

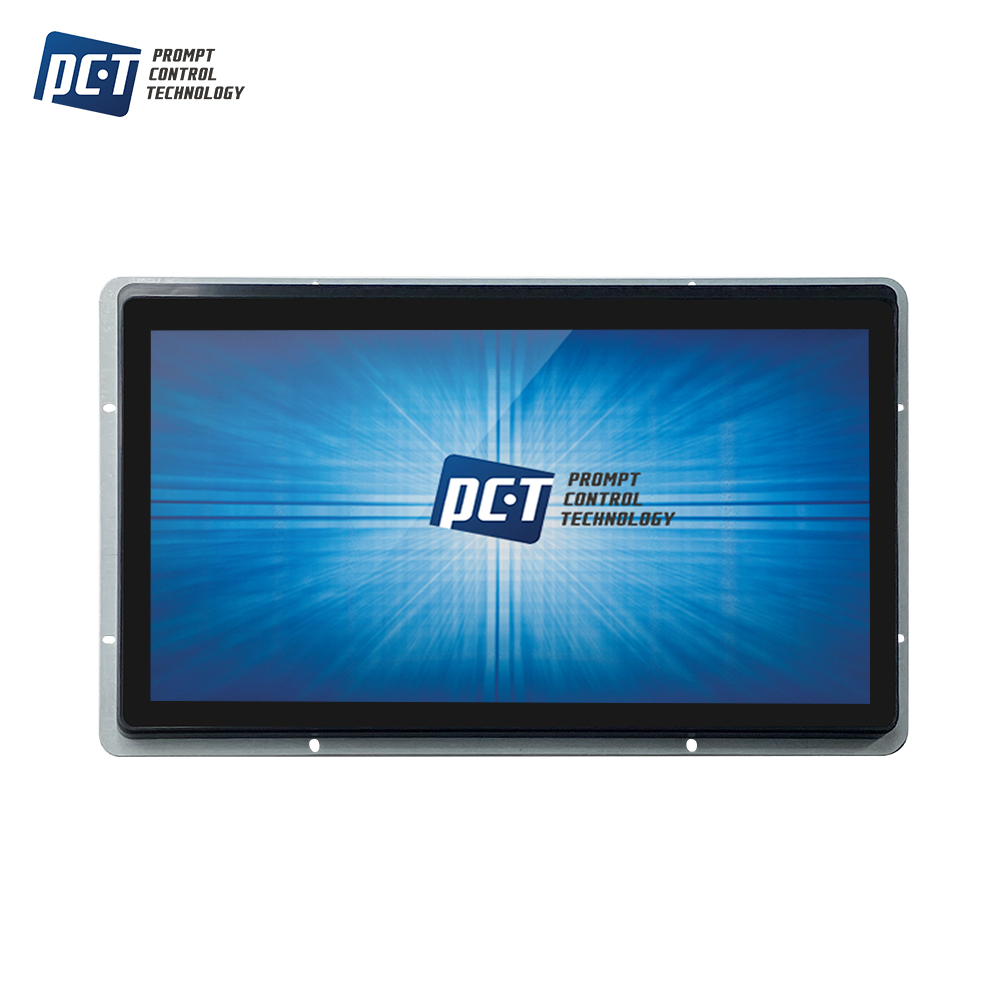

12.5″ Full HD IP64 IK07 Open Frame Industrial PCAP Touch Monitor

Rugged PCAP Display with Plastic Front Bezel for Industrial Equipment Integration

Model 15OTL-P125HDIG-P is an industrial-grade Full HD LCD touch monitor using projected capacitive multi-touch technology. It supports Win7, Win8, Android & Linux by multi-touch function and is widely applied to industrial, commercial and medical devices. Full HD resolution, 10-point PCAP touch and VGA/HDMI/DVI connectivity support flexible system integration

Main Features:

- - 300cd/m2 High brightness ultra-low power LED backlight
  - Wide-viewing angles, landscape or portrait mode
  - 10-point PCAP multi-touch for responsive operator control
  - 3 mm tempered cover glass with IK07 protection for impact resistance
  - IP64-rated front protection against dust and water splash
  - VGA, HDMI, DVI and USB touch interfaces for flexible integration
  - Natural air cooling design for quiet, fanless operation

12.5″ 1920*1080

Online service

Compact Full HD Touch Display for Industrial Equipment Integration

The 15OTL-P125HDIG-P combines an open-frame structure with a plastic front bezel, 3 mm tempered cover glass and natural air cooling. Its Full HD display, 89° wide viewing angles and compact 320.08 × 207.00 mm form factor make it suitable for embedded industrial terminals and equipment requiring space-efficient integration.

Specification

12.5-inch open frame PCAP touch monitor with black plastic front bezel

Display Size	12.5 inch
Display Resolution	1920 × 1080 @ 60 Hz recommended; 70 Hz supported
Brightness	Typ. 300 cd/m²; 250 cd/m² after PCAP
Touch Technology	Projected Capacitive Multi-Point Touch, 80H84 controller
Touch Points	10 points
IP / IK Rating	IP64 / IK07
Cover Glass	3 mm physical tempered glass, 7H hardness
Viewing Angle	89°/89° left/right; 89°/89° vertical/horizontal
Operating Temperature	0°C to 50°C

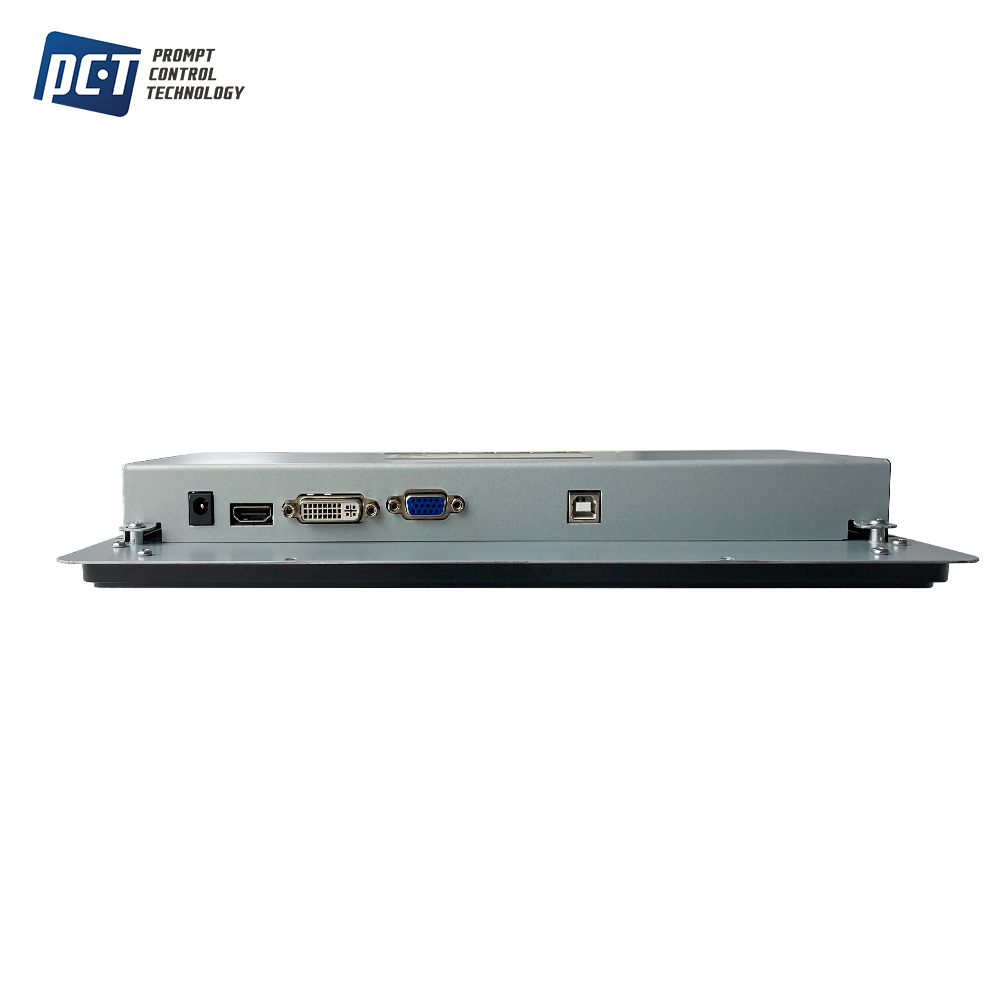

Video / Touch Interfaces	VGA, HDMI, DVI; USB for touch
Aspect Ratio	16:09
Contrast Ratio	Typ. 700:1
Display Colors	16.7 million colors
Backlight	LED
Active Area	LCD: 276.48 × 155.52 mm; PCAP: 277.48 × 156.52 mm
Input Voltage	12 V / 3 A
Overall Dimensions	320.08 × 207.00 × 38.84 mm

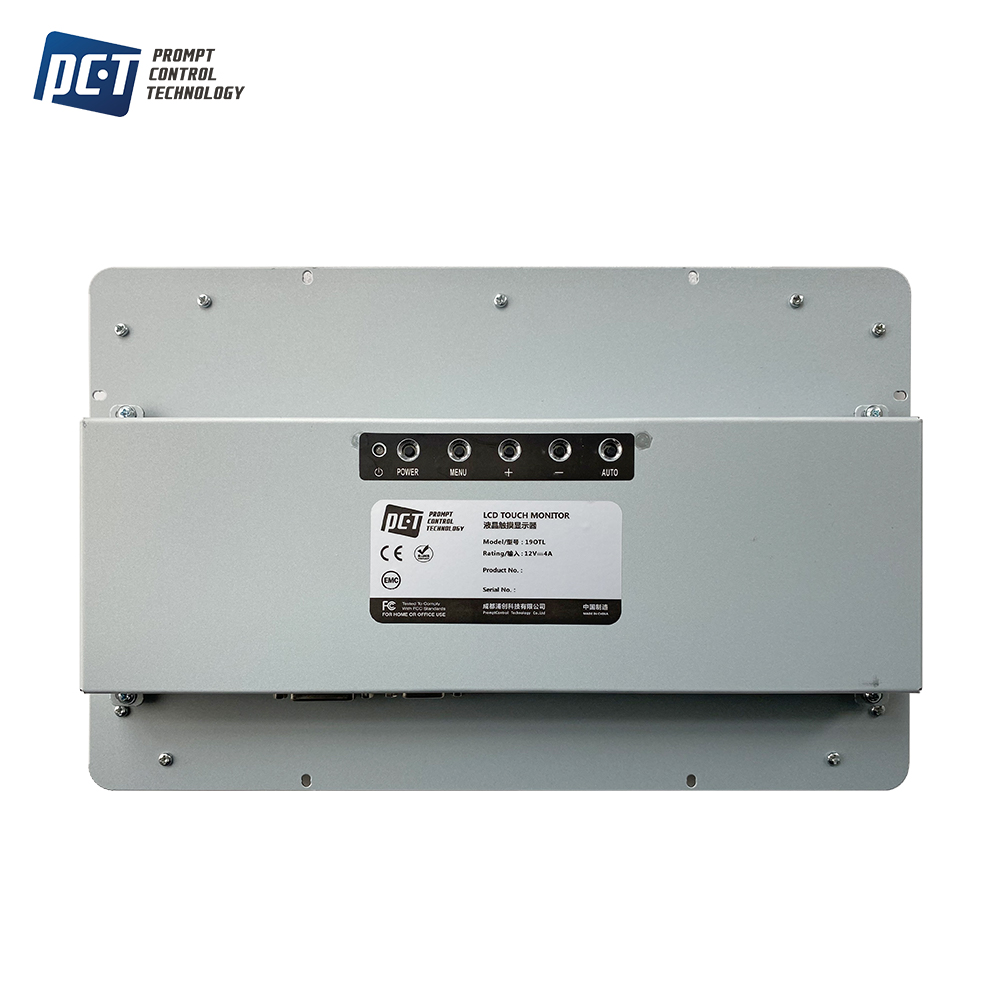

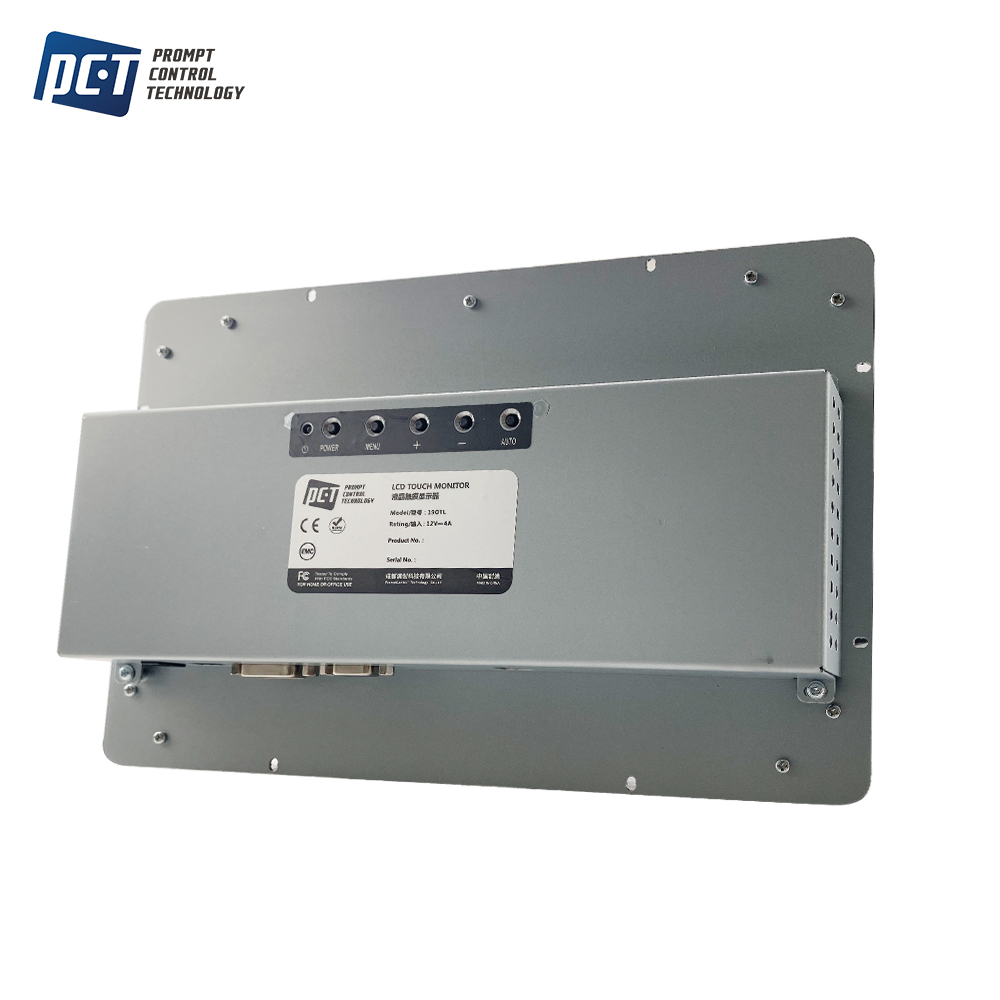

Construction / Front Bezel	Open frame LCD monitor with plastic front bezel
Cooling	Natural air cooling
Certifications / Compliance	CCC, CE, FCC, RoHS
