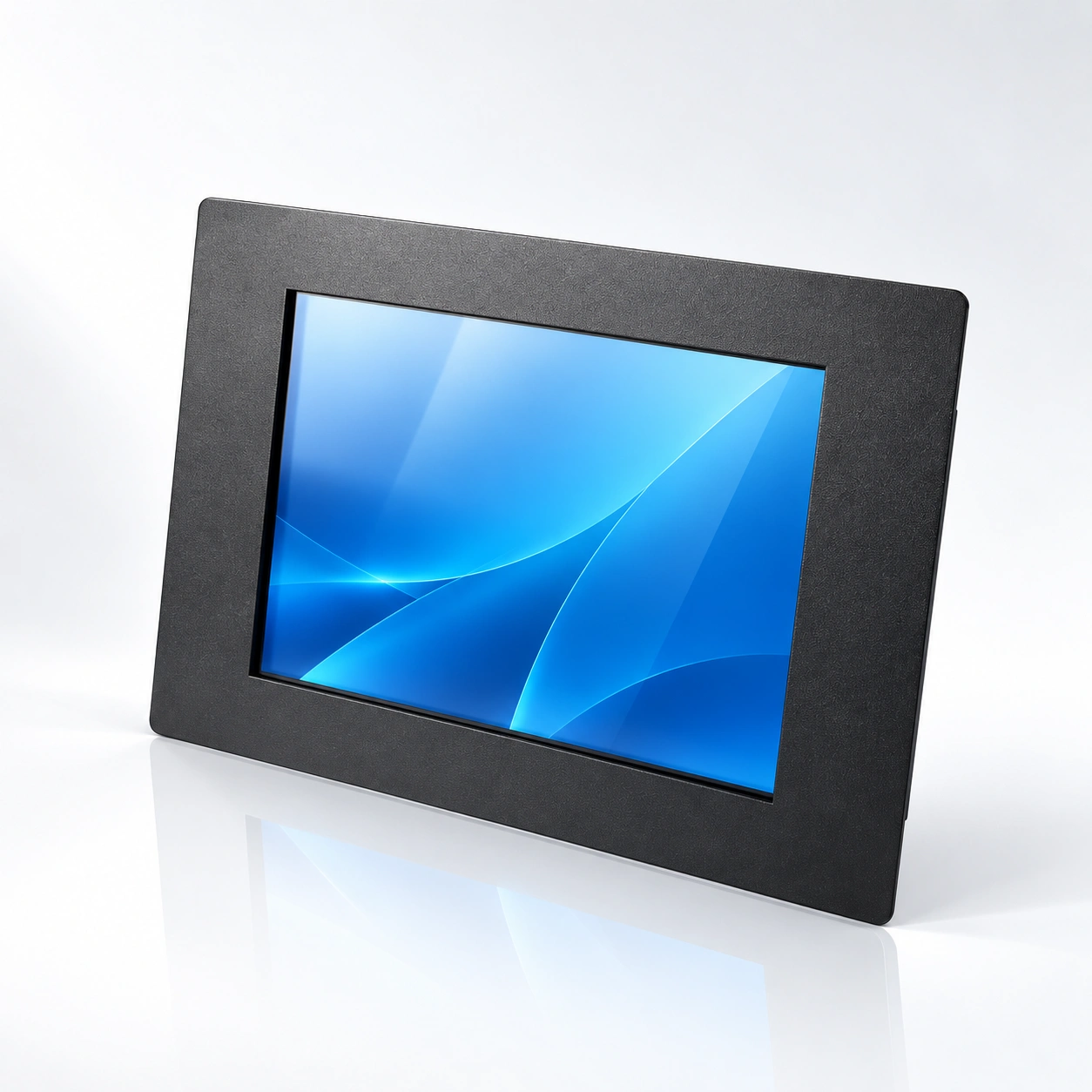

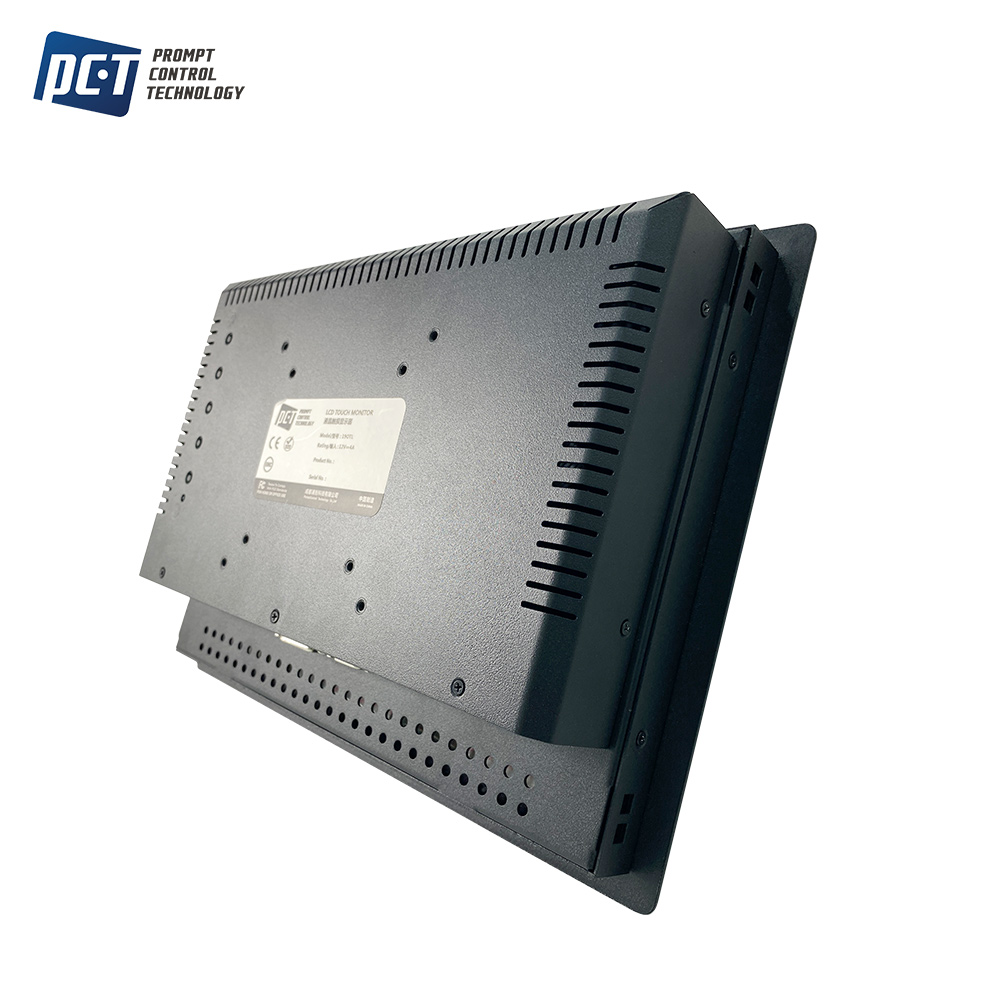

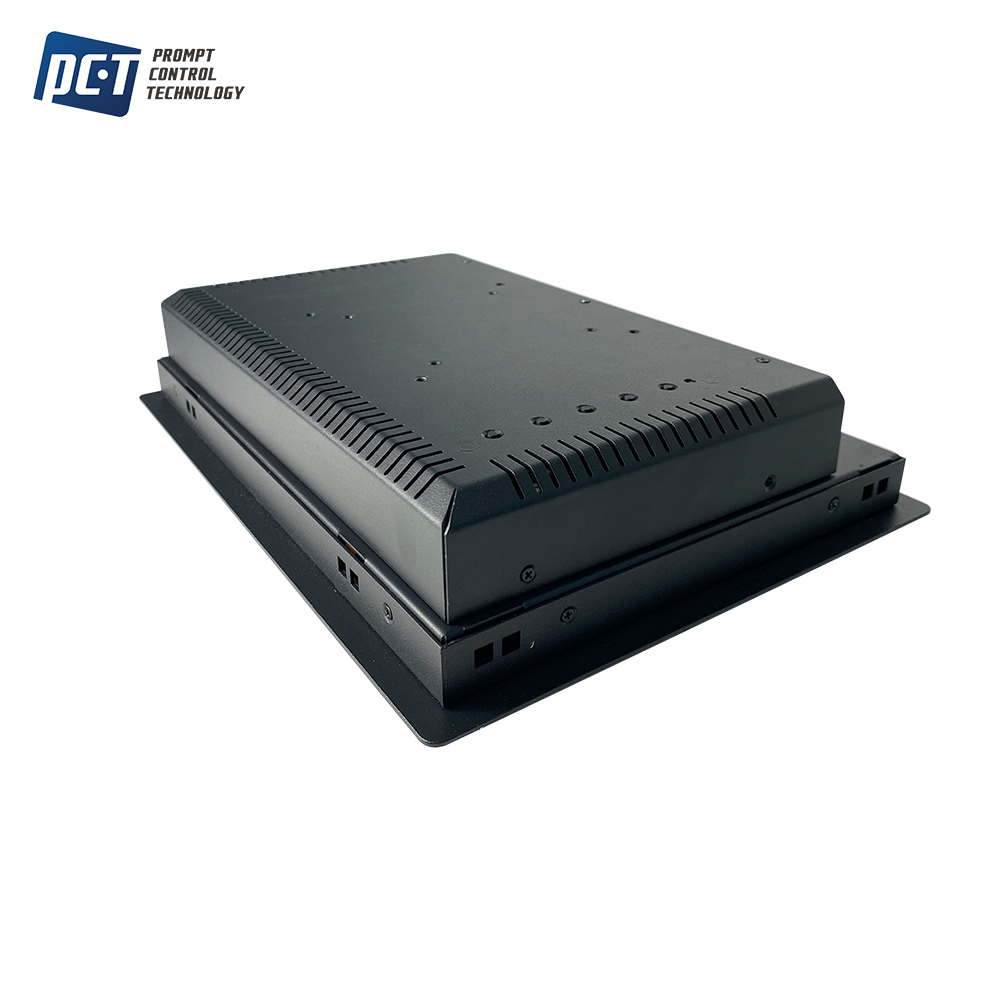

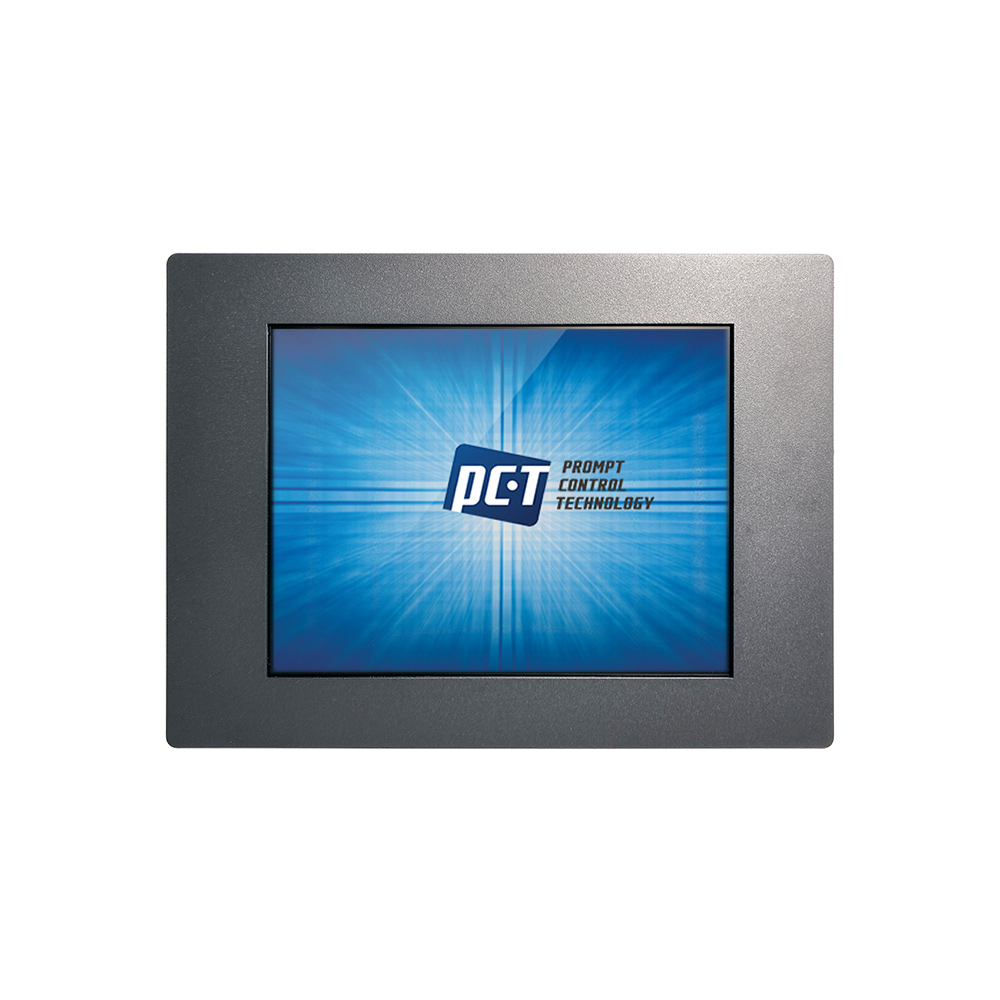

10.4″ Rugged High-Brightness Industrial Touch Monitor

PCAP Touch Monitor with Anti-Vandal Glass & IP65 Front

10.4-inch industrial touch monitor featuring 1000 cd/m² brightness, 10-point PCAP touch and OCR optical bonding. With 6mm anti-vandal glass, IK10 and IP65 front protection, it is built for demanding equipment applications.

Main Features:

- 1000cd/m² High brightness ultra-low power LED backlight
- Touch & LCD panel are OCR optical bonded
- 6mm Anti-vandal AG80 cover glass with 8H hardness
- 10 Multi-touches with water resistance touch function
- IK10 / IP65 protection for front panel

10.4″ 800*600

Online service

The 15OTL-N104HDIG-P is a 10.4-inch high-brightness industrial touch monitor with 1000 cd/m² brightness, 10-point PCAP touch and OCR optical bonding. 6mm anti-vandal glass, IK10 and IP65 front protection support demanding equipment applications.

Speification

10.4 inch High-Brightness Rugged Panel Mount PCAP Touch Monitor

Product Model	15OTL-N104HDIG-P
Screen Size	10.4 inch
Display Resolution	800 × 600 @ 60Hz
Display Ratio	4:03
Brightness	Typ. 1000cd/m²
Touch Technology	Projected Capacitive Multi-Point Touch
Touch Points	10 points
Cover Glass	6mm Anti-Vandal AG80, 8H
Optical Bonding	OCR Optical Bonding
Protection Level	IK10 / IP65 Front
Viewing Angle	70°/70° (L/R), 60°/70° (V/H)
Response Time	Typ. 30ms
Touch Response Time	≤10ms
Contrast Ratio	Typ. 800:1
Interfaces	VGA, HDMI, DVI, USB Type-B
Operating Temperature	-20°C ~ 70°C
Operating Humidity	20% ~ 90% RH
Input Voltage	12V / 4A
Product Construction	Panel Mount
Outline Dimension	305 × 224 × 58.1mm
