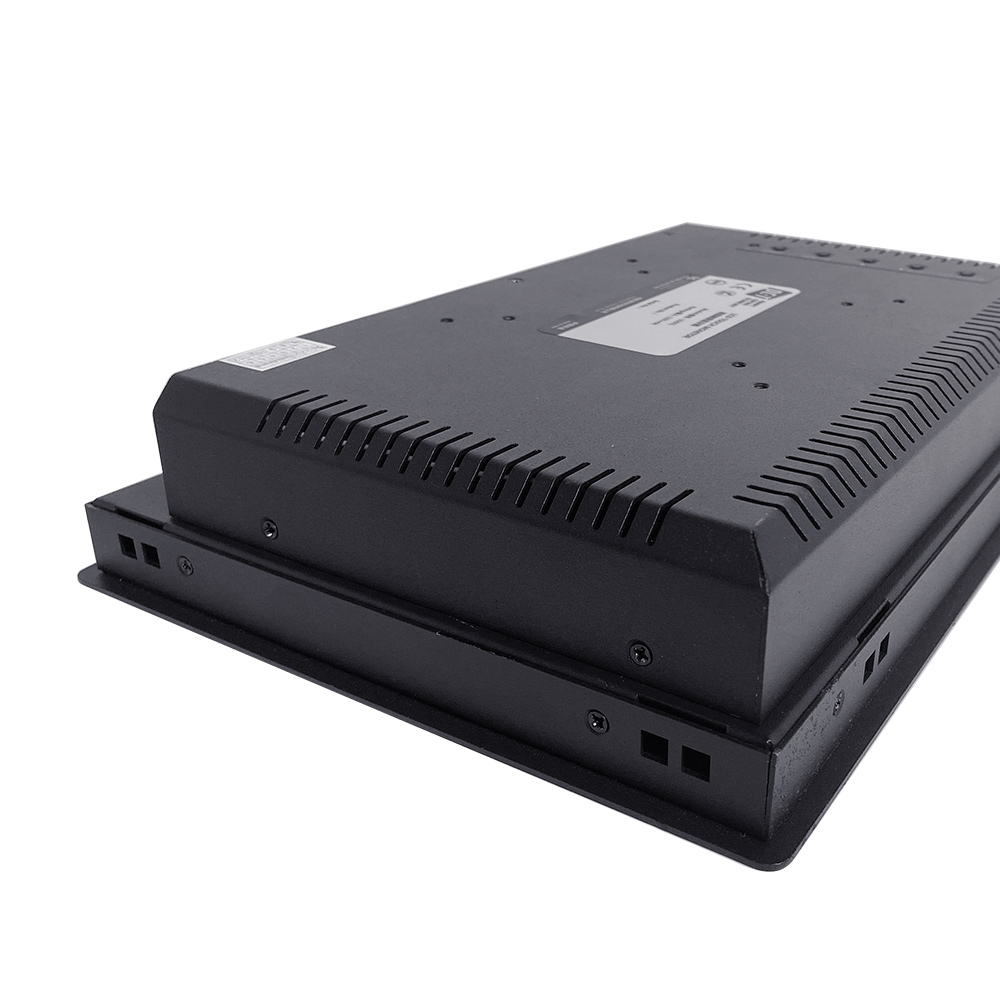

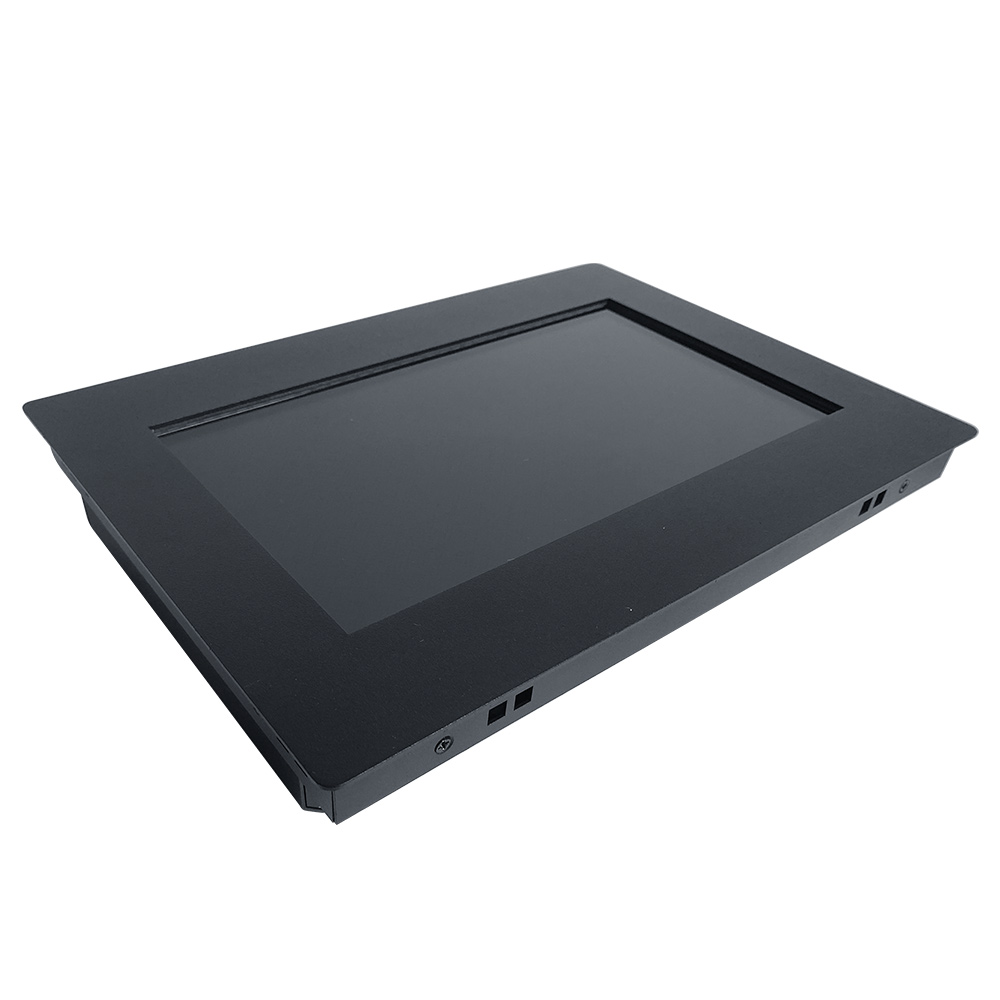

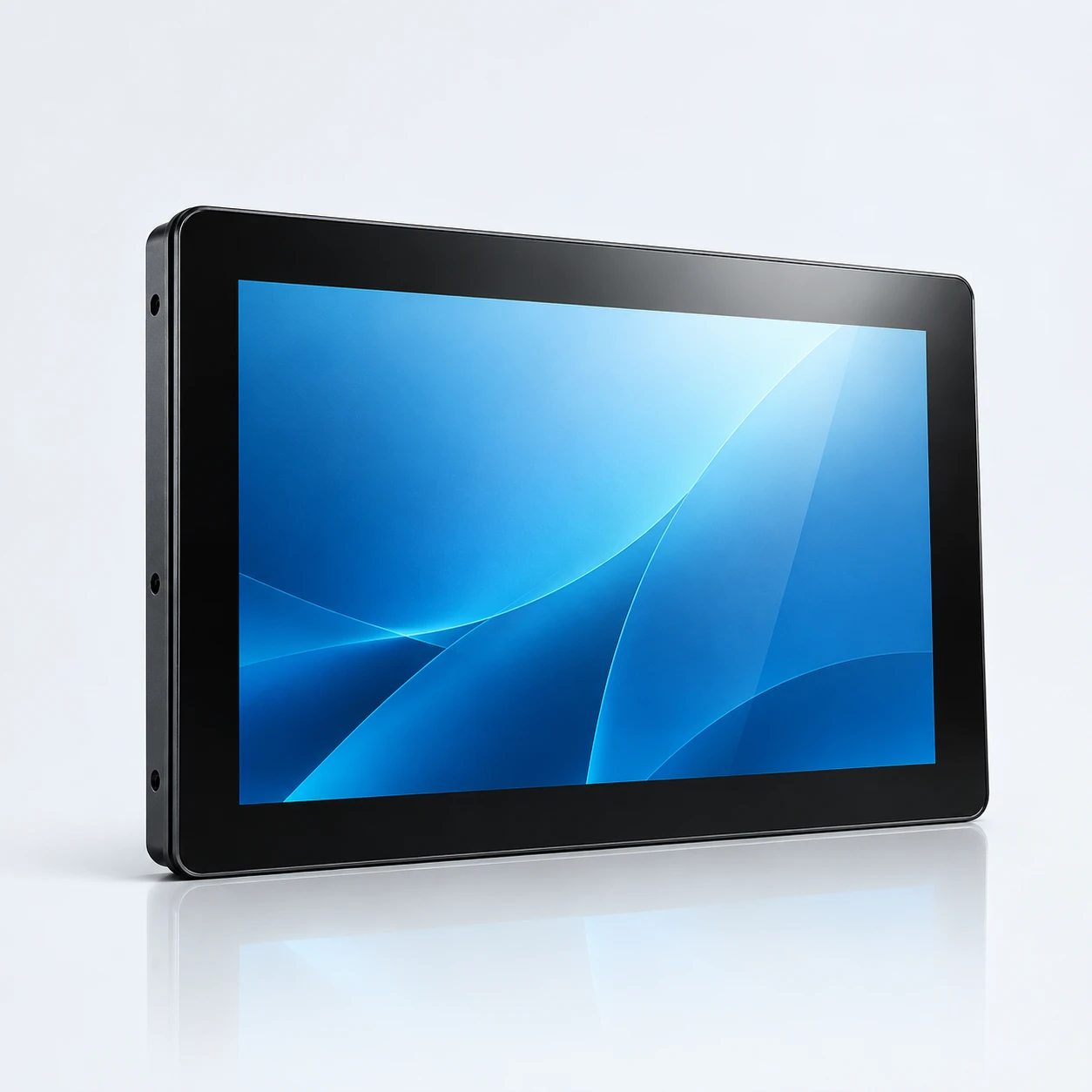

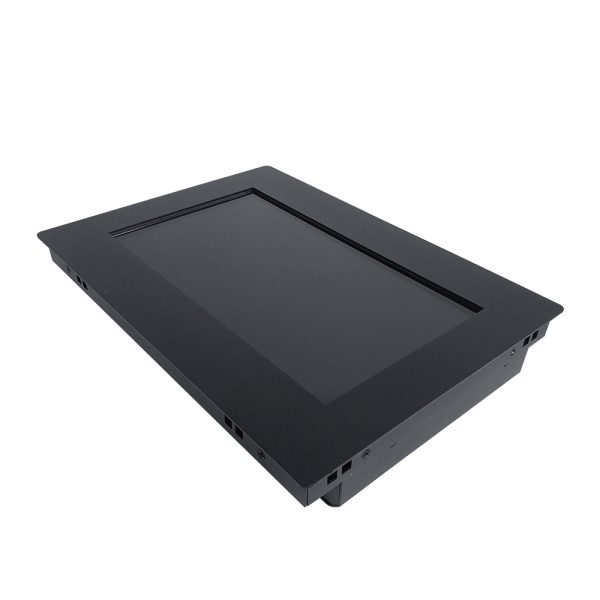

10.1″ High-Brightness Wide-Screen Panel Mount PCAP Touch Monitor

Industrial-Grade 1000 nits Outdoor Touch Display with IP65 Front Panel

Designed for industrial, commercial, and medical devices, this 10.1-inch panel mount touch monitor combines 1000 nits high brightness with IP65 front protection for 24/7 continuous operation.

Main Features:

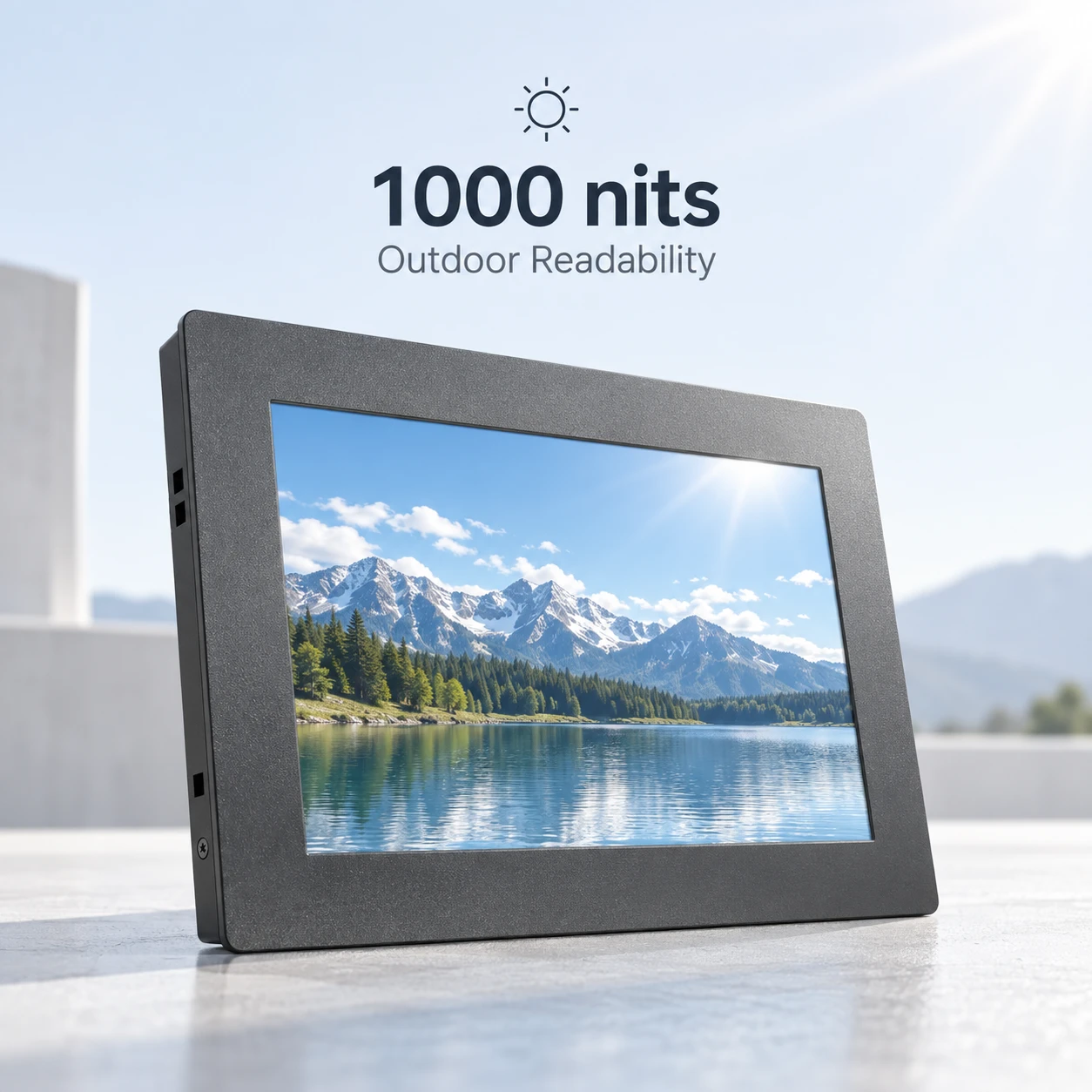

- 1000cd/m2 High brightness ultra-low power LED backlight

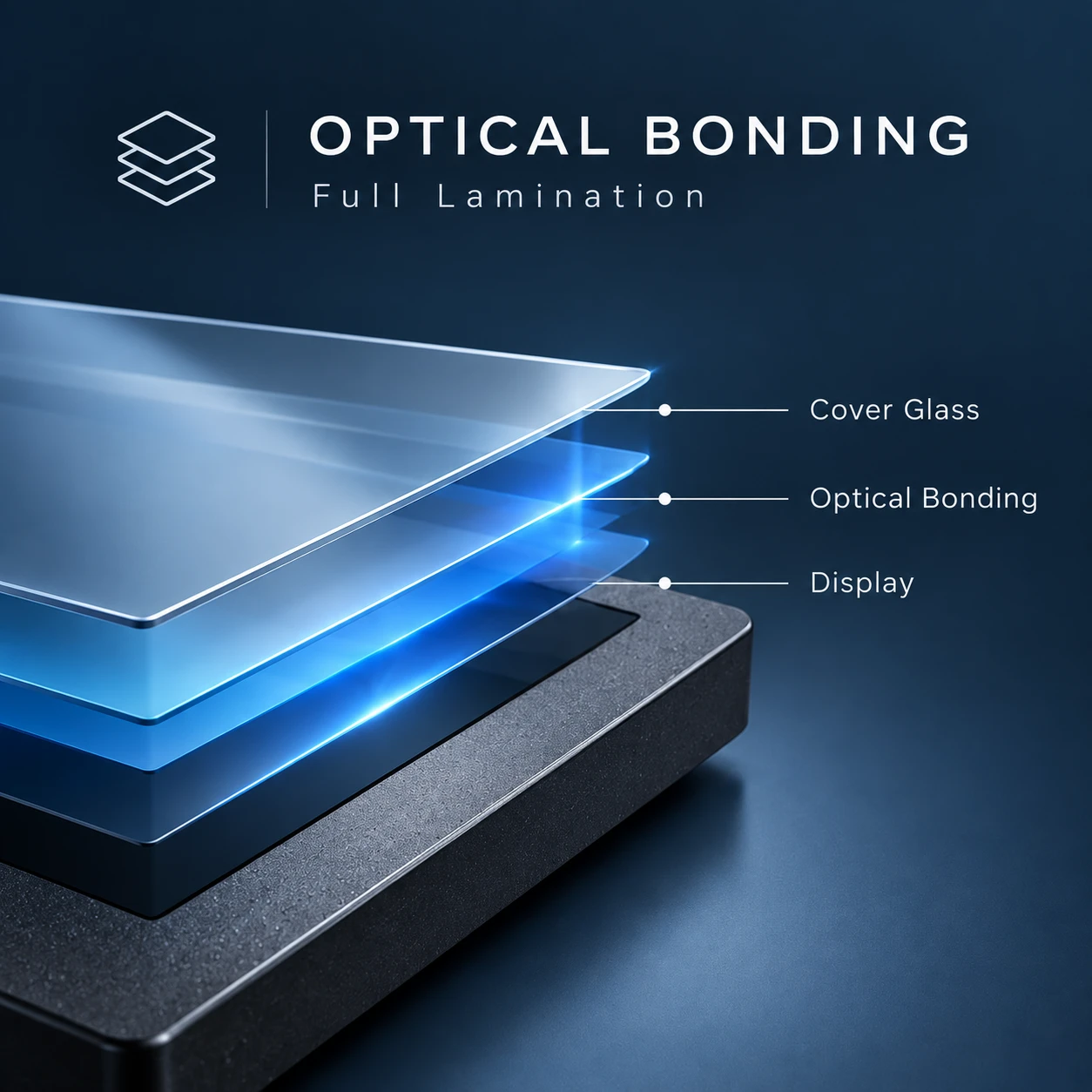

- PCAP Touch & LCD panel are OCR optical bonded
- IP65 front bezel with 4mm anti-vandal tempered glass
- 10-point PCAP touch with water-resistant function
- 8–36V DC wide voltage and -30°C to 85°C operating temp

10.1″ 1024*600

Online service

10.1” panel mount High-brightness Industrial LCD Touch monitor

15OTL-P101HIG-P is one of 10.1” panel mount High-brightness Industrial LCD Touch monitor that using the projected capacitive touch technology, it supports Win7,Win8, Win10, Win10_IoTE, Android & Linux by multi-touch function, widely apply to various industrial, commercial and medical devices

Specification

10.1″ Outdoor PCAP Touch Monitor 1200 cd/m²

Product	10.1″ Outdoor PCAP Touch Monitor 1200 cd/m²
White Luminance	Typ. 1000 cd/m² (Sunlight Readable)
Display Resolution	1280 × 800
Type	Projected Capacitive Technology (P-CAP Touchscreen)
Touch Points	10 Points Multi-Touch
Viewing Angle	170°/170° (Horizontal / Vertical)
Contrast Ratio	Typ. 1000:1
Support Color	16.7M
Glass Thickness & Hardness	Vandal-proof Tempered Glass (≥ 7H Hardness)
Backlight Lifetime	50,000 Hours

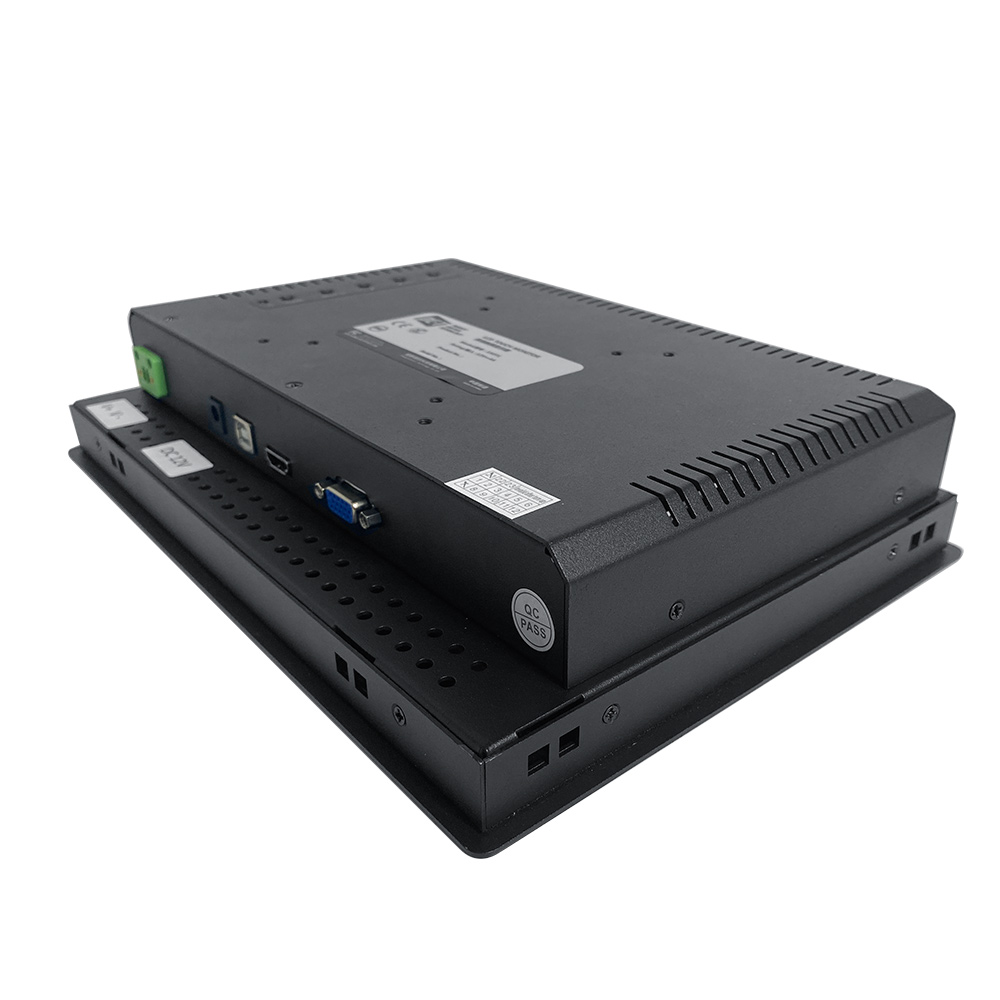

Interface	VGA, HDMI, DP, USB (Type-B)
IK / IP Protection Level	IP65 Waterproof & Dustproof (Front Panel)
Environment Parameter	Operating: -20°C ~ 70°C, Storage: -30°C ~ 80°C
Input Voltage	DC 12V (Lockable Jack)
Power Consumption	Operating: < 15W / Standby: < 1W
Installation	VESA Mount (75 × 75 mm) / Side Brackets
Glass Treatment	Anti-Glare (AG) / Optical Bonding
Product Construction	Heavy-duty Metal Housing
Warranty	12 Months
Certification	CE, FCC, RoHS
