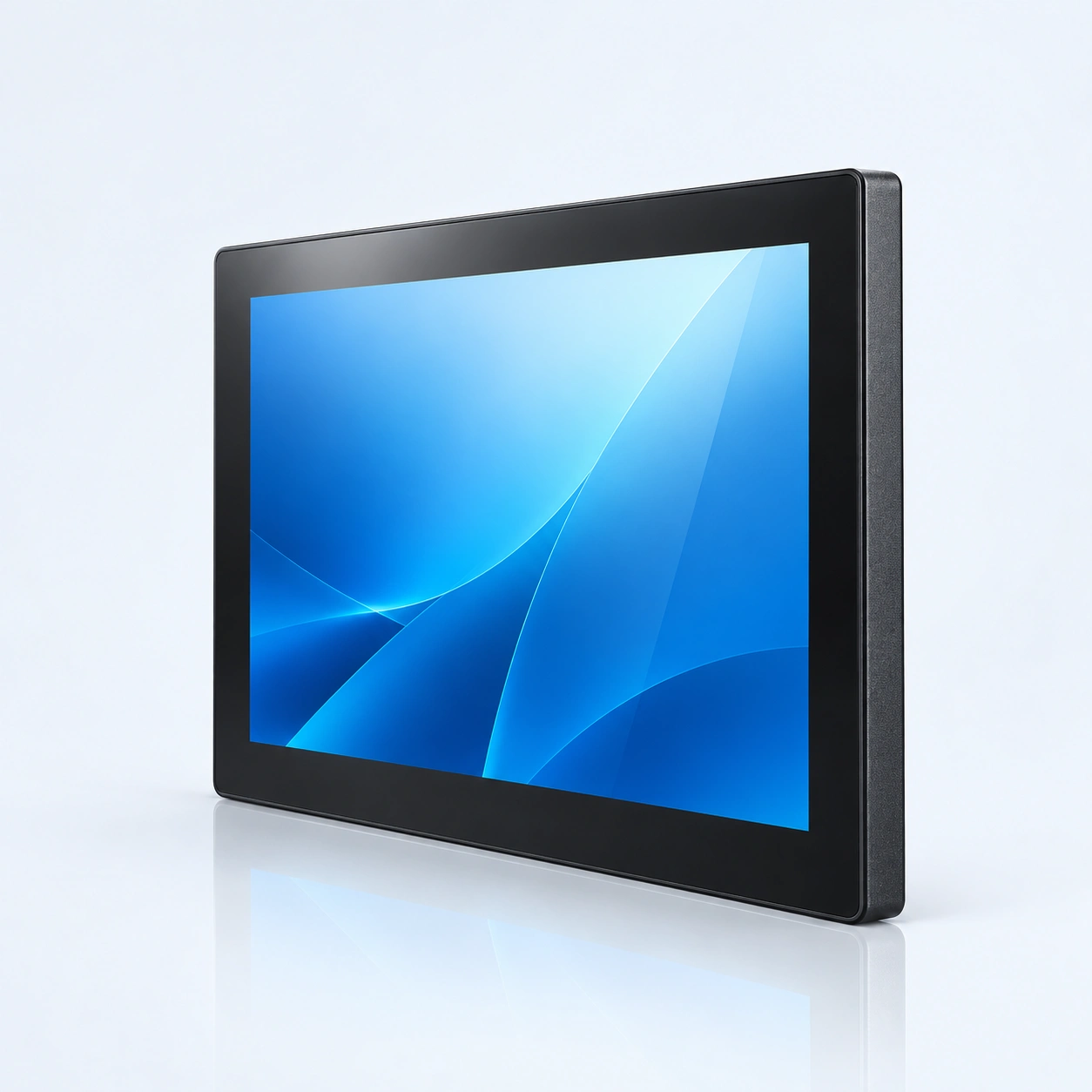

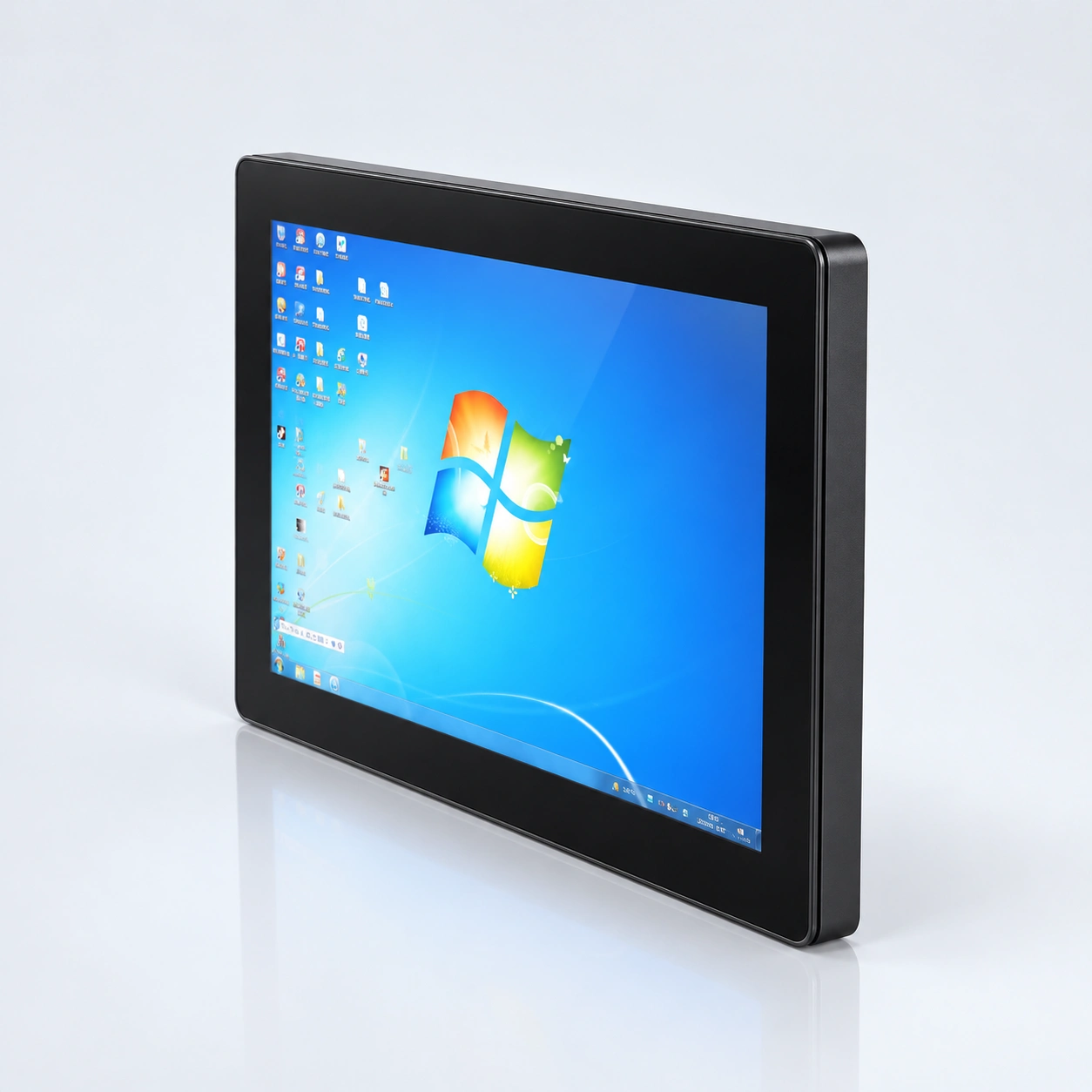

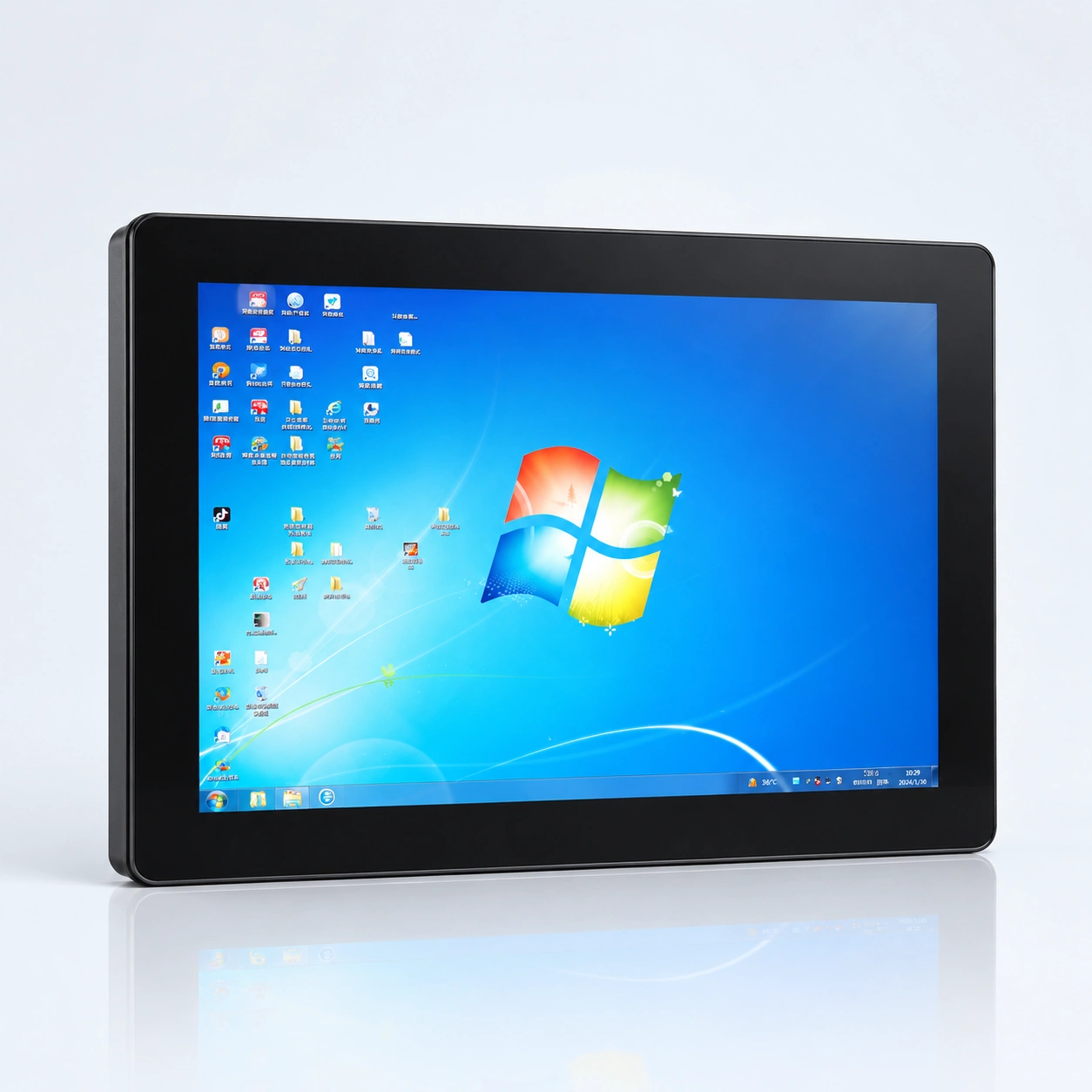

UXGA Touch Display Engineered for Radar and Rugged Industrial Integration
The 15OTL-P15HDDIG-P111 combines a 1600 × 1200 UXGA panel, aluminum-alloy frame and 3 mm chemically strengthened cover glass for rugged industrial use. Its 500 cd/m² brightness, IP65-rated front, IK07 impact protection and -20°C to 70°C operating range support reliable integration into radar consoles, military support equipment and other demanding control systems.
Specification
15-inch UXGA industrial PCAP touch monitor
| Display Size | 15 inch |
| Display Resolution | UXGA 1600 × 1200 |
| Brightness | Typ. 500 cd/m²; min. 450 cd/m² after PCAP |
| Touch Technology | Projected Capacitive Multi-Point Touch, ILI2511 controller |
| Touch Points | 10 points |
| IP / IK Rating | IP65 front / IK07 |
| Cover Glass | 3 mm chemically strengthened anti-vandal glass, 7H |
| Viewing Angle | 89°/89° left/right; 89°/89° vertical/horizontal |
| Operating Temperature | -20°C to 70°C |

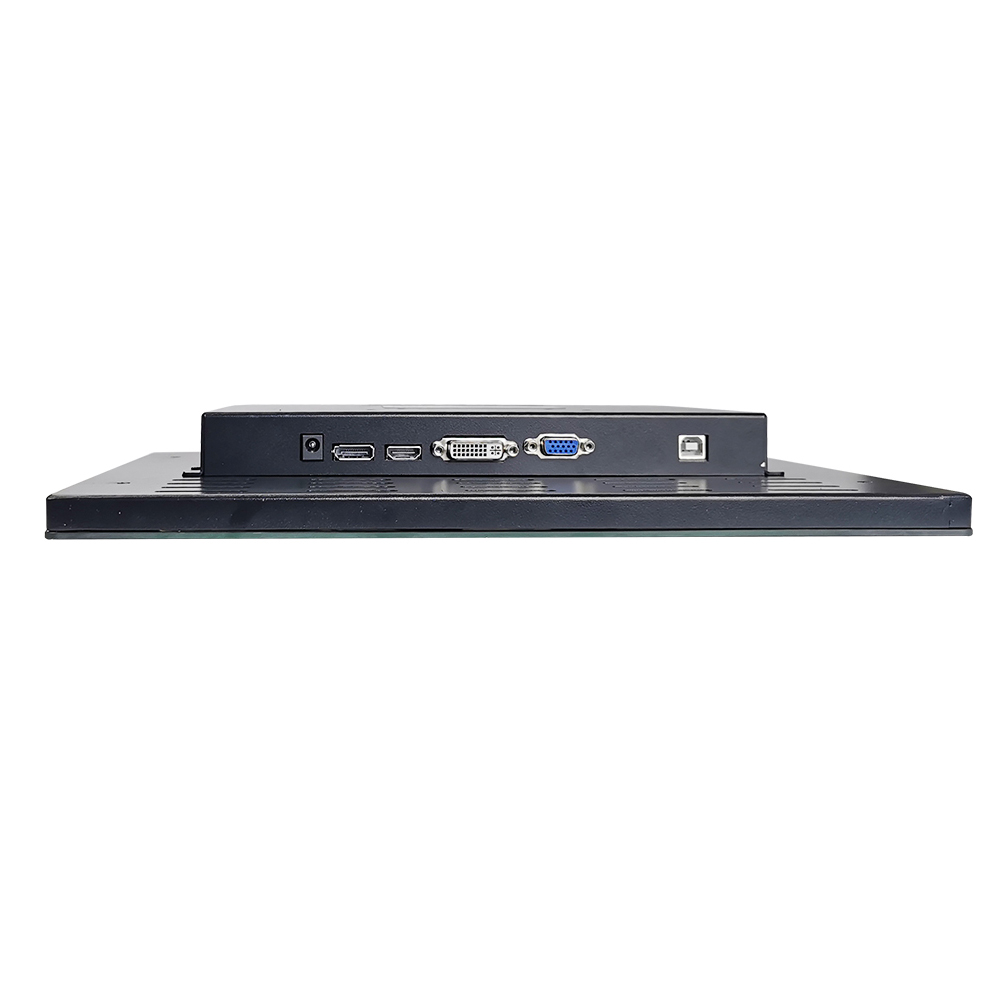

| Video / Touch Interfaces | VGA, HDMI (DDC/CI), DVI, DisplayPort; USB 2.0 touch |
| Contrast Ratio | Typ. 1000:1 |
| Display Colors | 16.7 million colors |
| Backlight | LED |
| Active Area | LCD: 304.80 × 228.60 mm; PCAP: 305.10 × 229.10 mm |
| Input Voltage | 12 V / 4 A |
| Power Consumption | 20 W typ. / 25 W max. at 100% brightness |
| Overall Dimensions | 348.70 × 272.70 × 44.65 mm |
| Product Construction | Aluminum alloy metal frame |
| Cooling | Natural air cooling |
| Certifications / Compliance | EMC: EN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3; FCC Part 15; RoHS IEC62321 |
