Closed Frame Industrial Touch Display for Reliable Equipment Integration

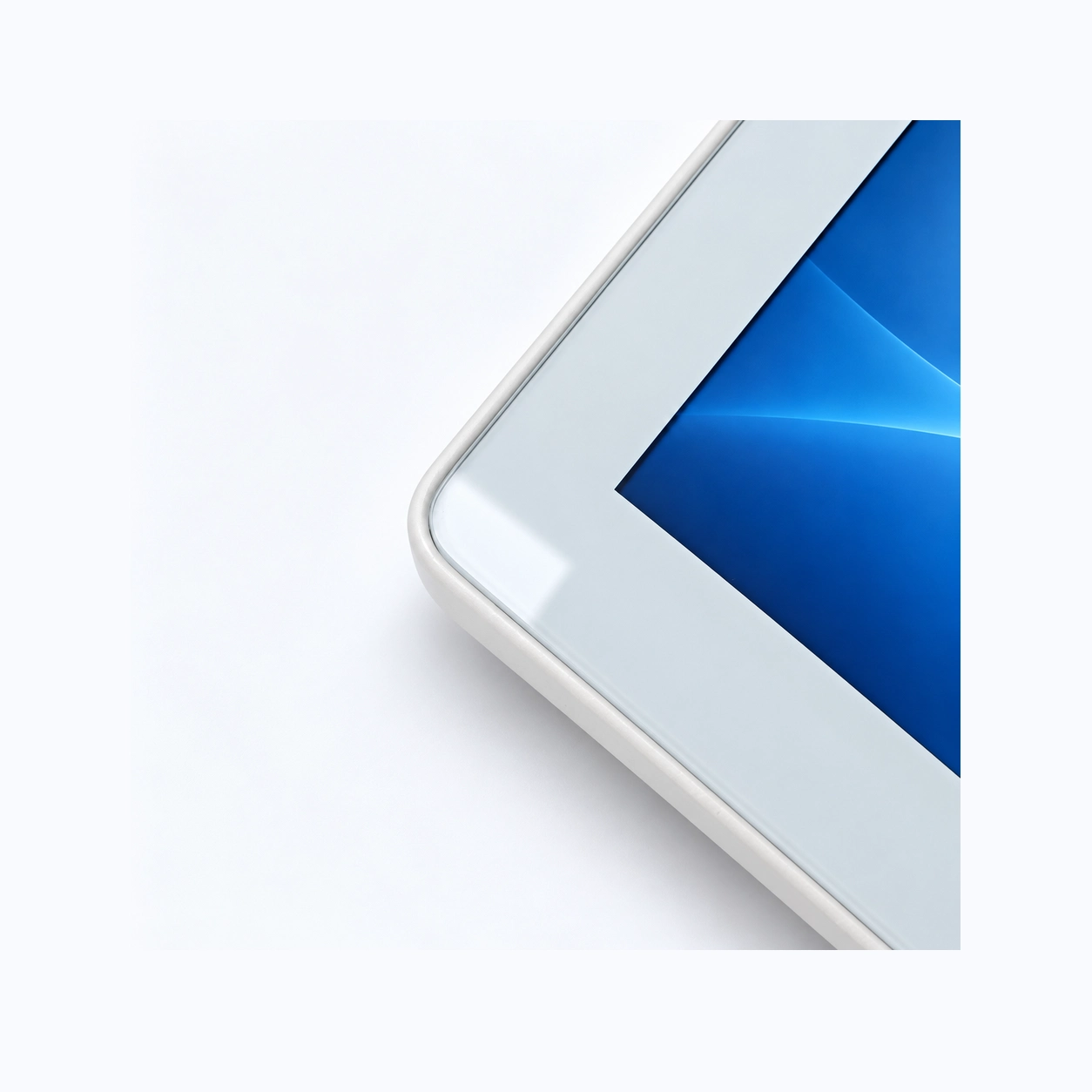

The PCT01-17T01-P151 combines a closed-frame structure, 3 mm anti-vandal PCAP glass and VHB tape bonding between the touchscreen and LCD. Its IP65-rated front, IK07 impact protection, 89° wide viewing angles and water-resistant multi-touch support integration into control panels, terminals and other industrial equipment.
Specification

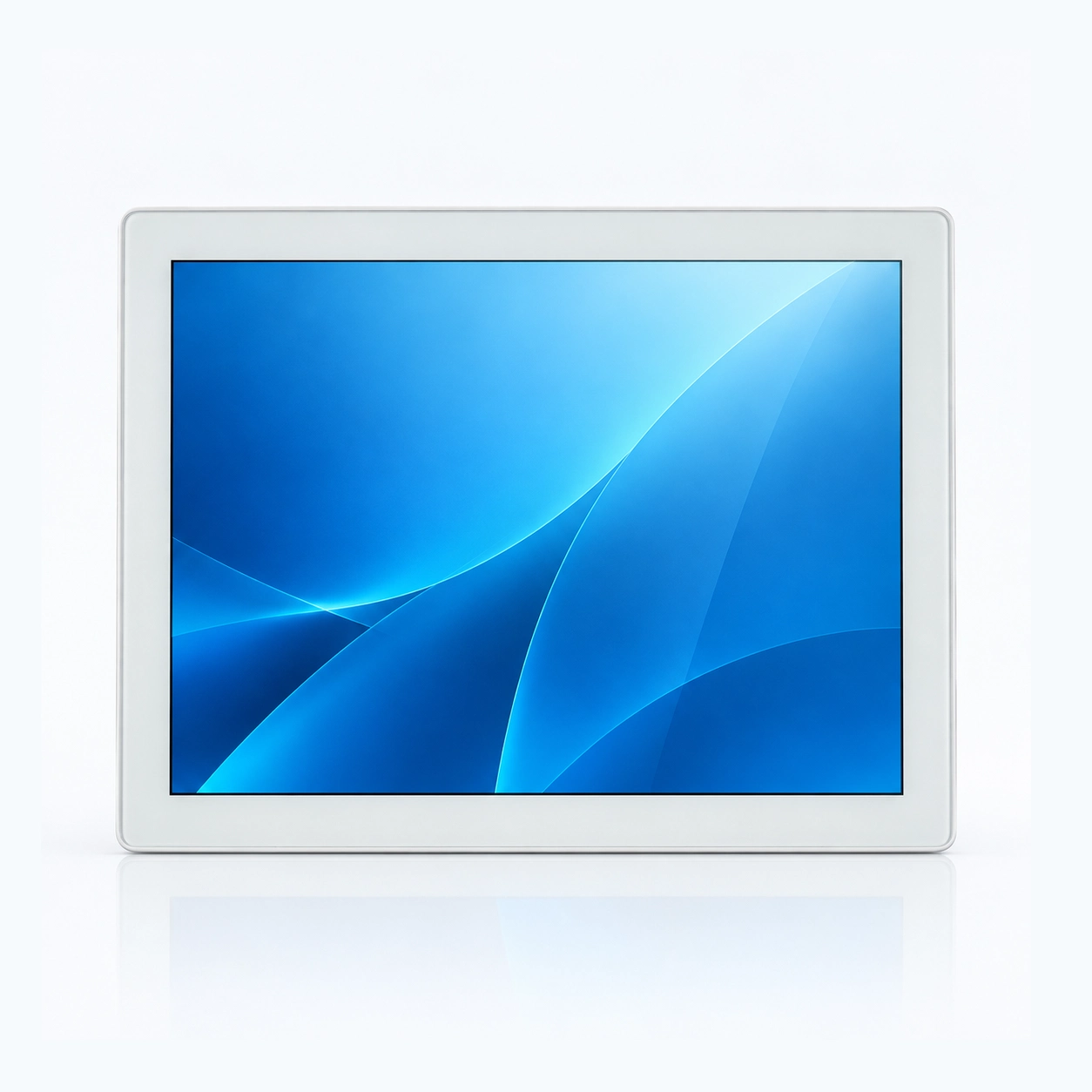

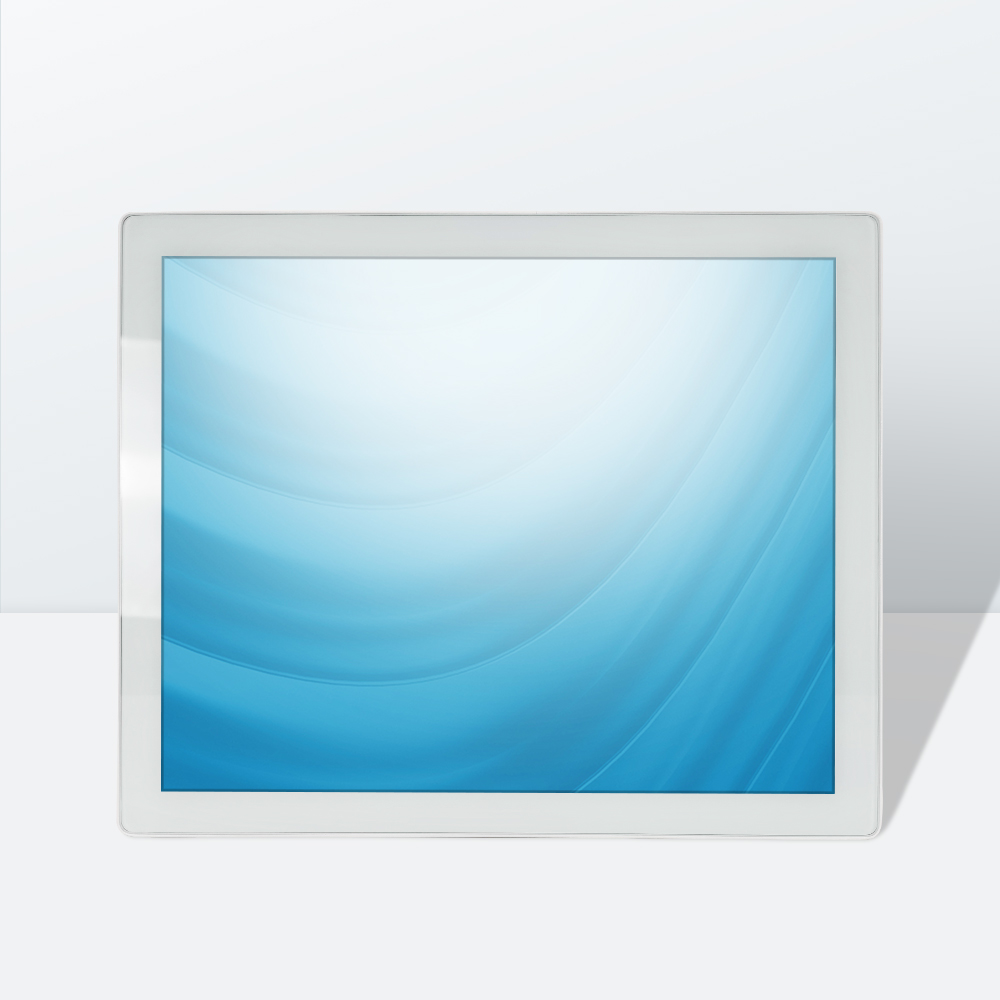

17-inch closed frame PCAP touch monitor with white industrial enclosure
| Display Size | 17 inch |
| Display Resolution | SXGA 1280 × 1024 @ 60 Hz |
| Brightness | Typ. 250 cd/m²; min. 220 cd/m² after 3 mm PCAP |
| Touch Technology | Projected Capacitive Multi-Point Touch, ILI2510 controller |
| Touch Points | 10 points |
| IP / IK Rating | IP65 front / IK07 |
| Bonding / Cover Glass | VHB tape bonded; 3 mm anti-vandal cover glass, 7H hardness |
| Viewing Angle | 89°/89° left/right; 89°/89° vertical/horizontal |
| Operating Temperature | 0°C to 50°C |

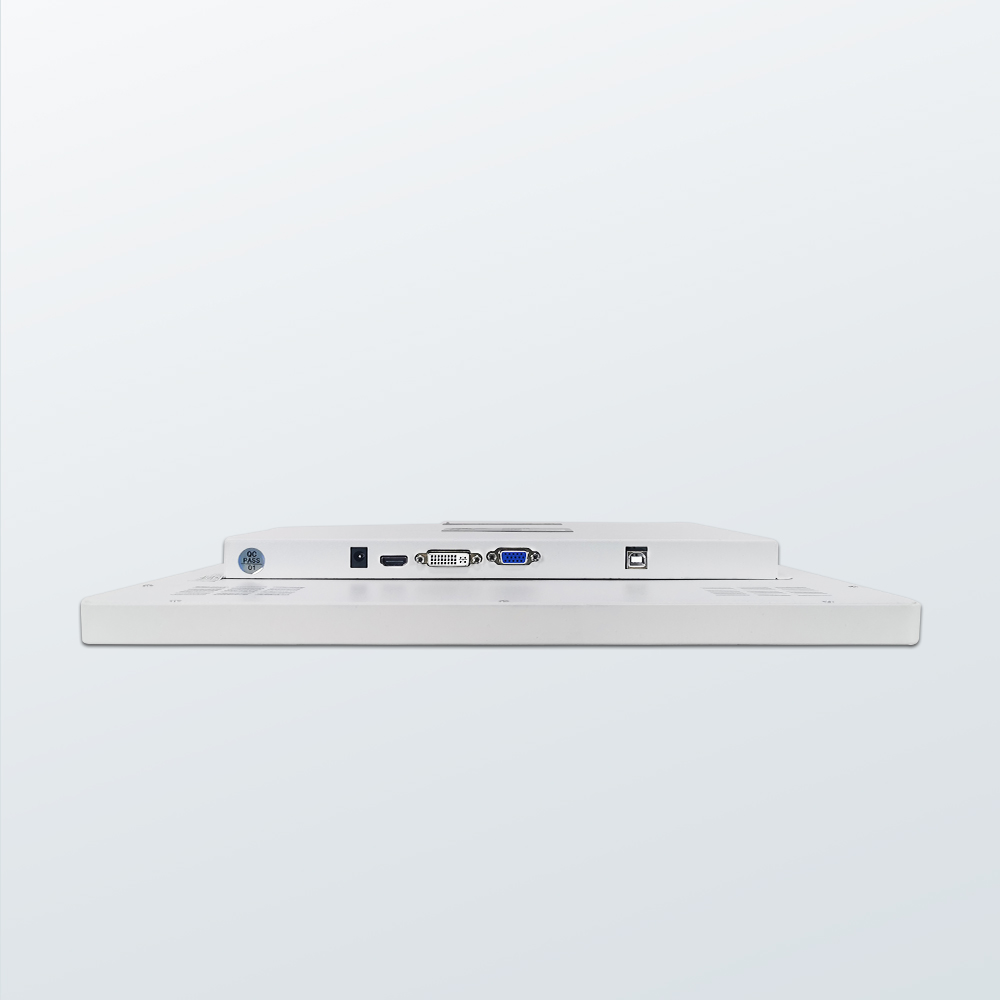

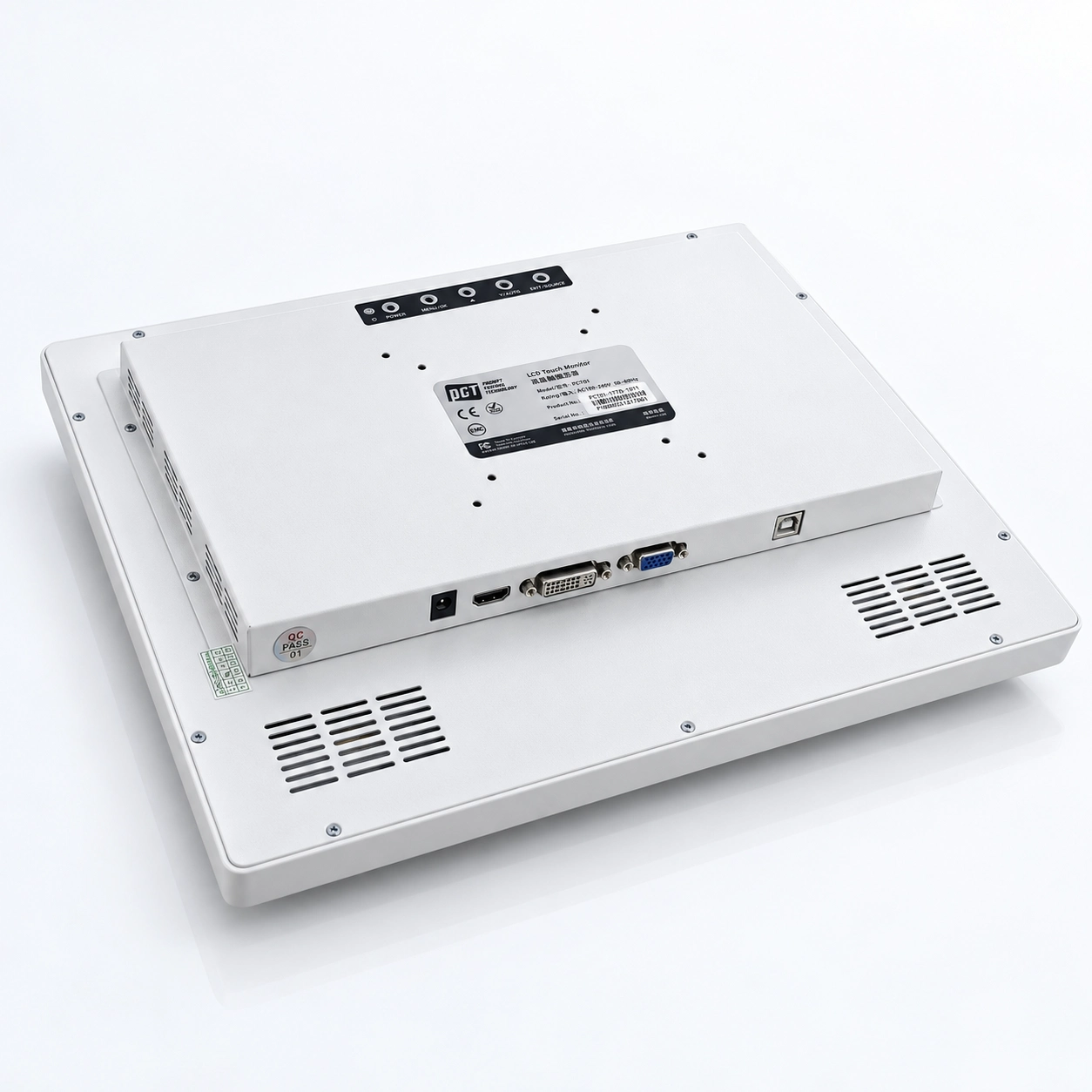

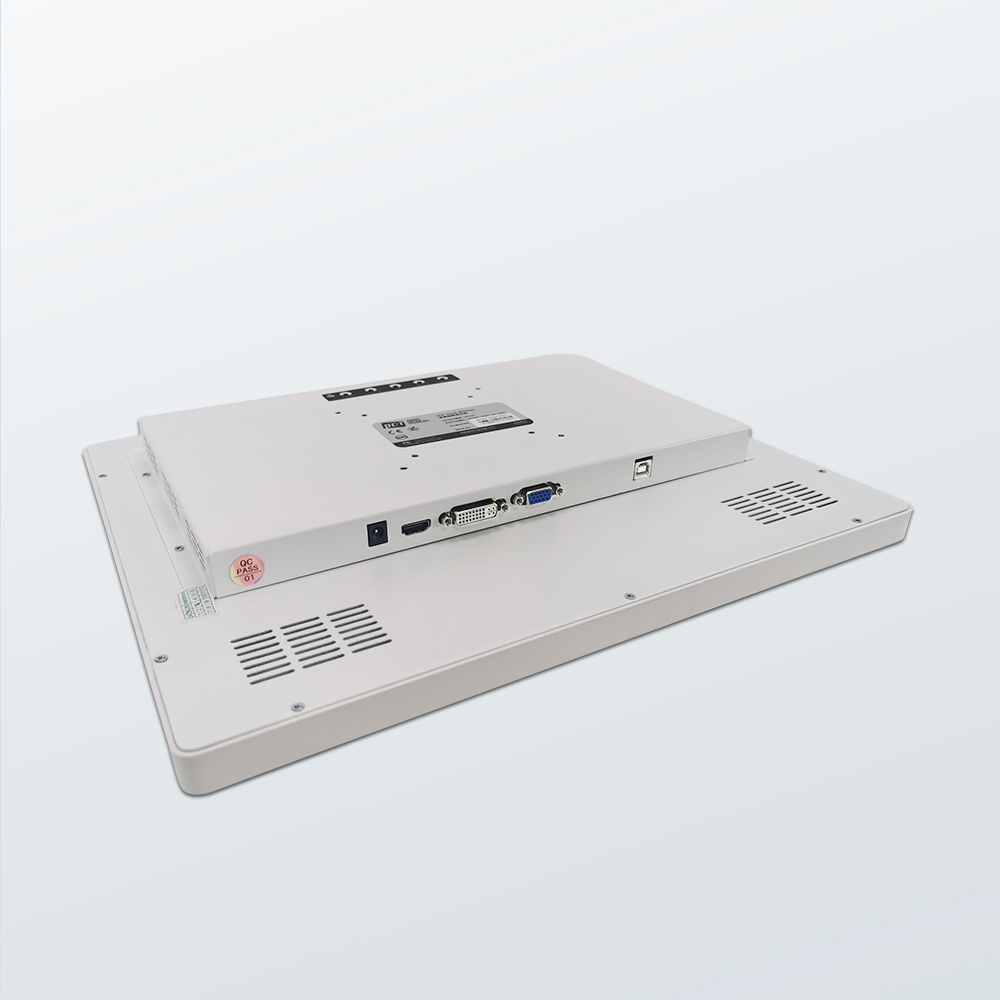

| Video / Touch Interfaces | VGA, HDMI, DVI; USB Type-B for touch |
| Aspect Ratio | 4:03 |
| Contrast Ratio | Typ. 1000:1 |
| Display Colors | 16.7 million colors |
| Backlight | LED |
| Active Area | LCD: 339.92 × 270.336 mm; PCAP: 338.92 × 271.34 mm |
| Input Voltage | 12 V / 4 A |
| Overall Dimensions | 338.92 × 317.90 × 41.50 mm |

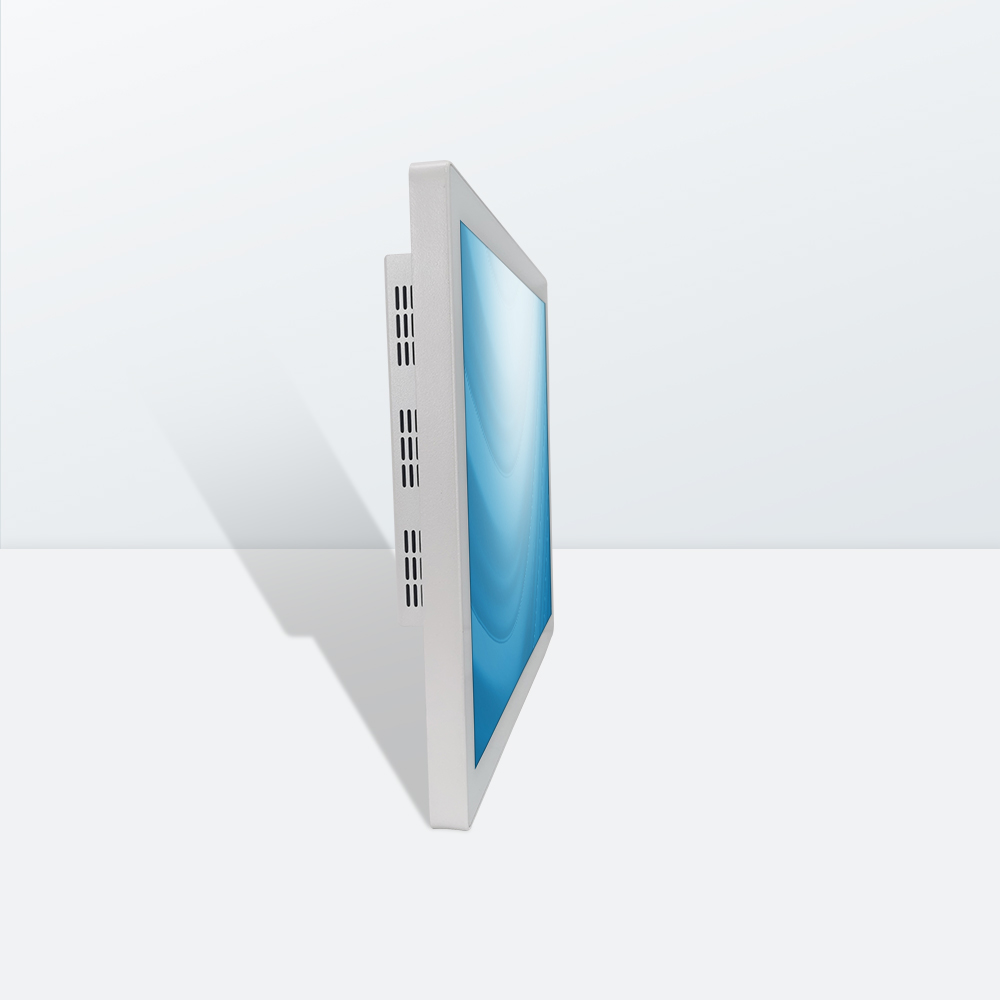

| Product Construction | Closed Frame |
| Operating Humidity | 20%–90% |
| Certifications / Compliance | EMC: EN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3; FCC Part 15; RoHS IEC62321 |
