15.6″ 1000-Nit IP65 IK10 Outdoor PCAP Touch Monitor

Optical Bonding, 6 mm AG Glass and -30°C to 85°C Wide-Temperature Operation

PCT01-156T03-P124 is built for demanding outdoor installations, combining 10-point PCAP touch, automatic brightness adjustment, VGA/HDMI/DVI inputs and USB touch connectivity for industrial integration.

Main Features:

- - 1000cd/m2 High brightness ultra-low power LED backlight
  - 6 mm AG70±10 anti-glare physically tempered cover glass
  - Optical bonding between PCAP touchscreen and LCD panel
  - 10-point projected capacitive multi-touch with EETI 80W46 controller
  - IP65 front protection and IK10 impact protection

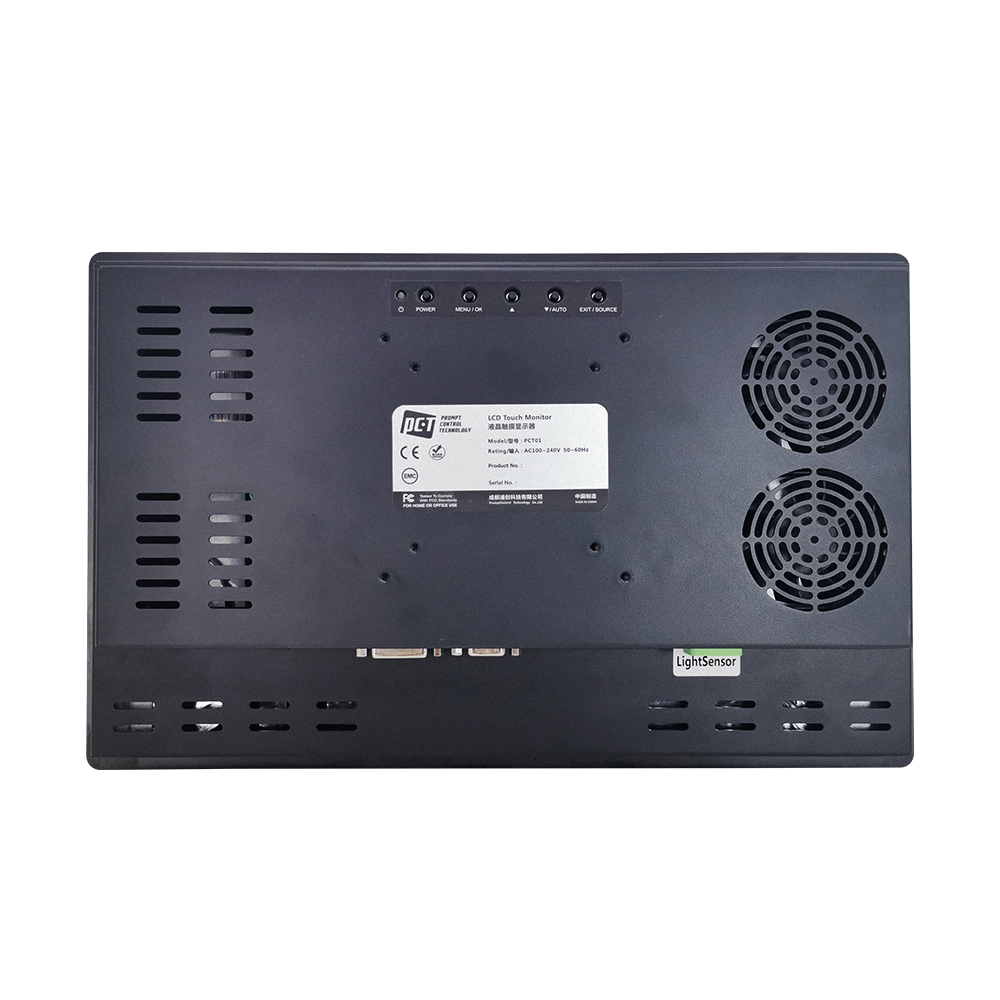

  - -30°C to 85°C operating temperature with active dual-fan cooling

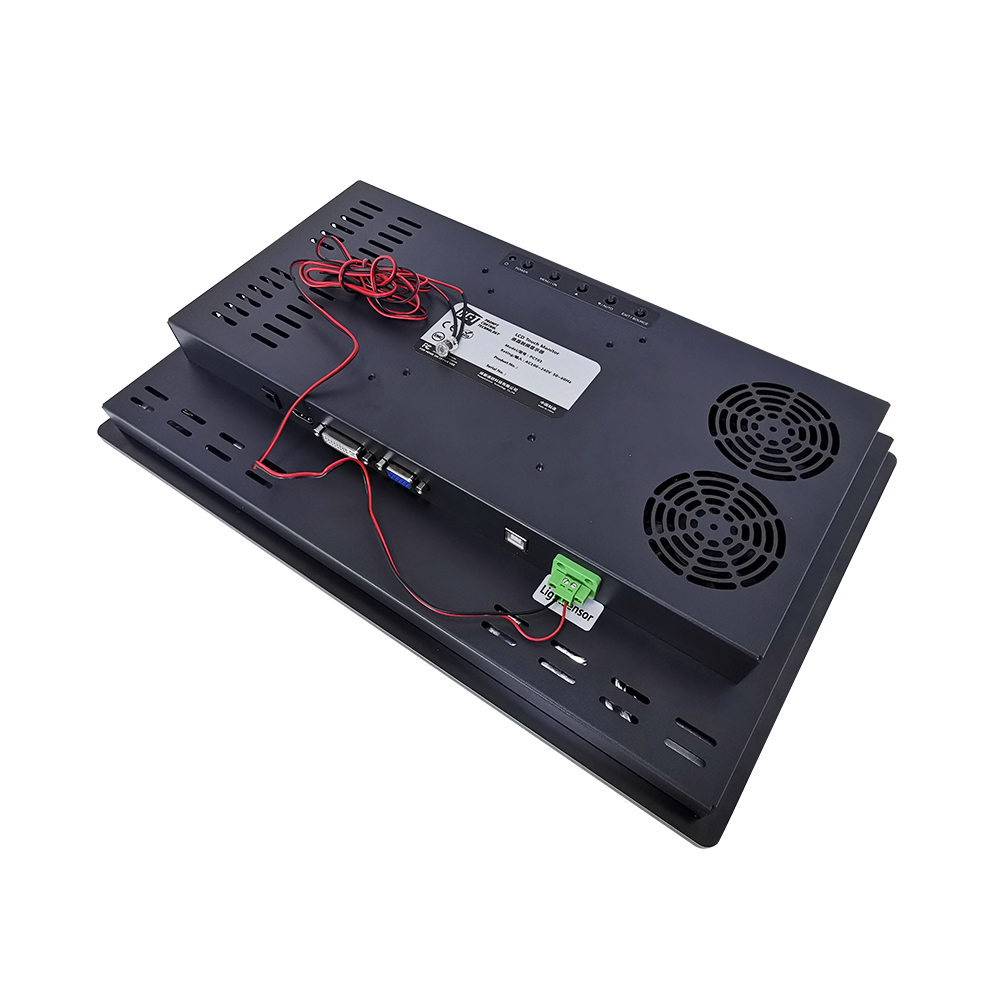

  - Automatic brightness adjustment through external light sensor or OSD

15.6″ 1920*1080

Online service

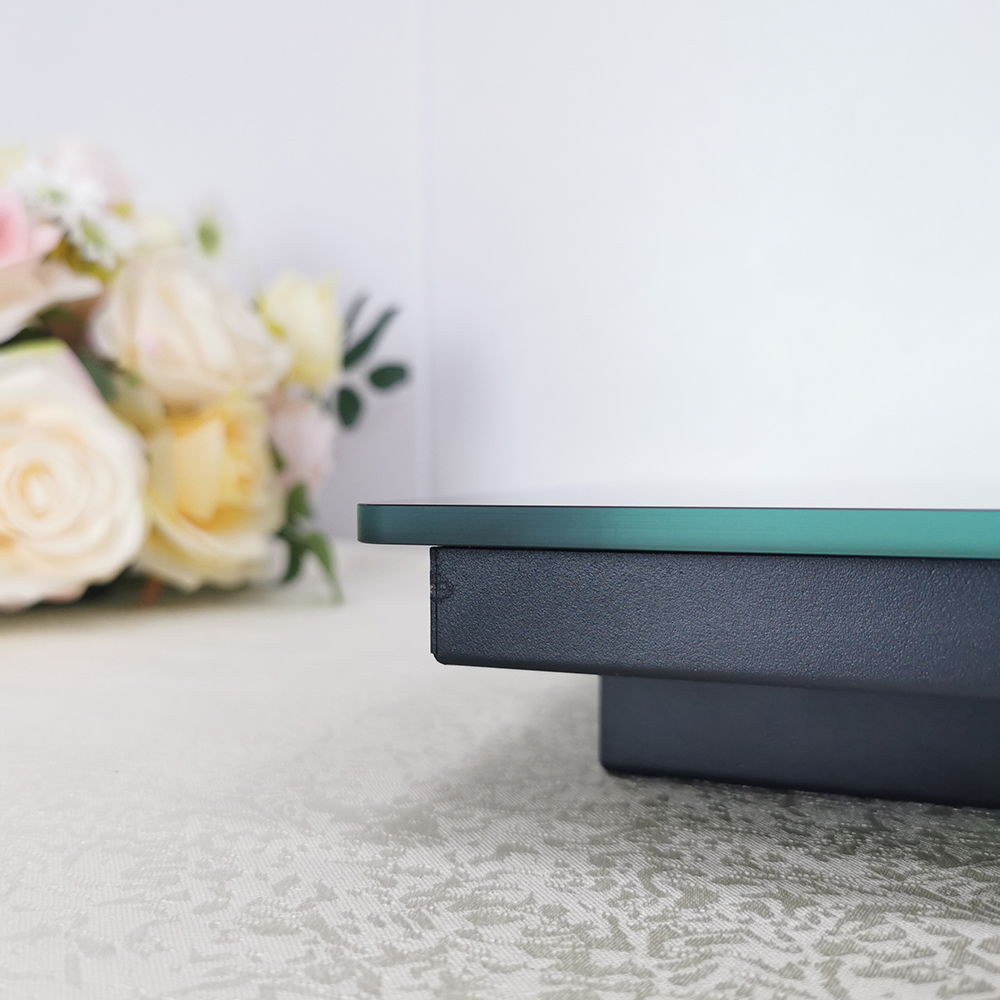

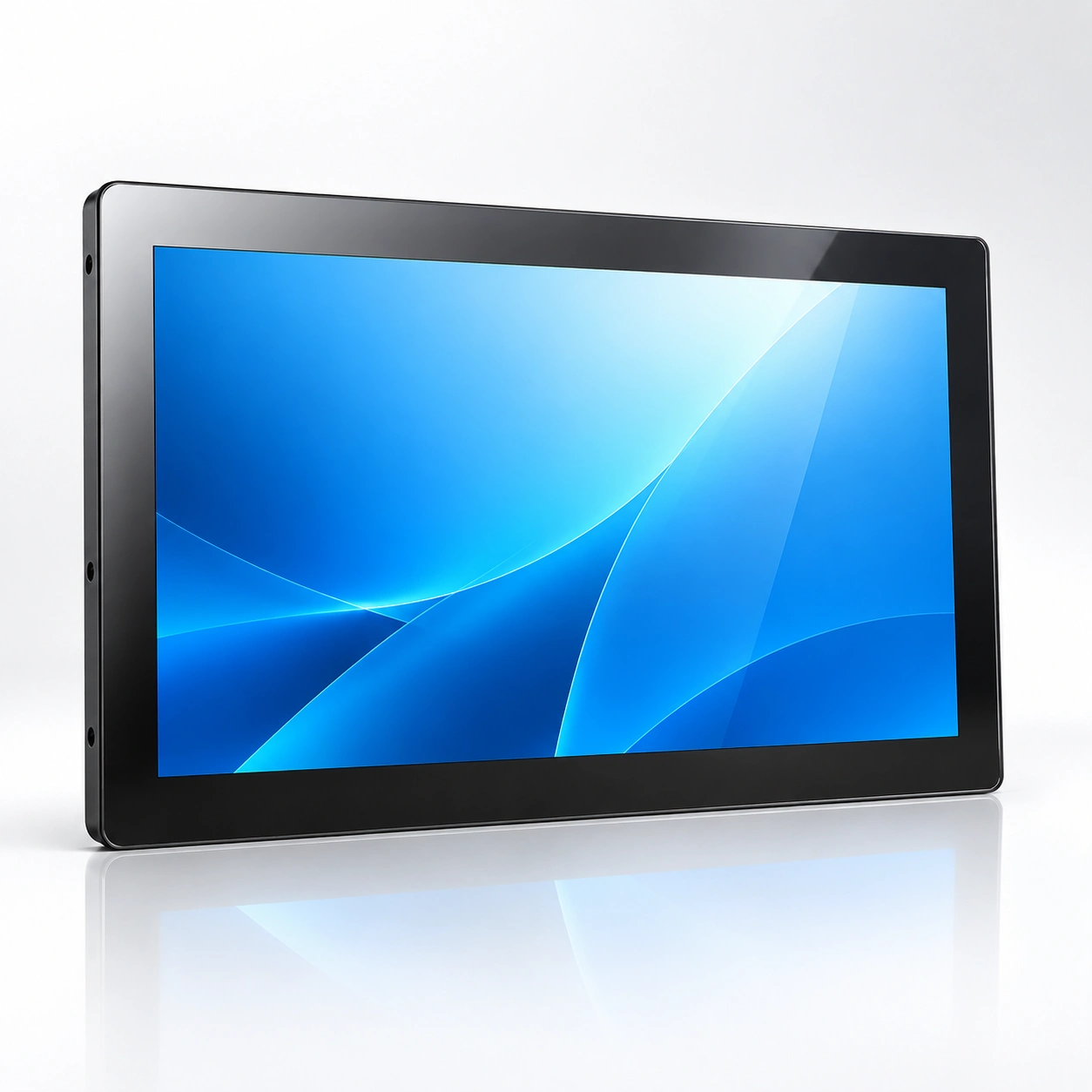

15.6-inch outdoor PCAP touch monitor with black flush glass front

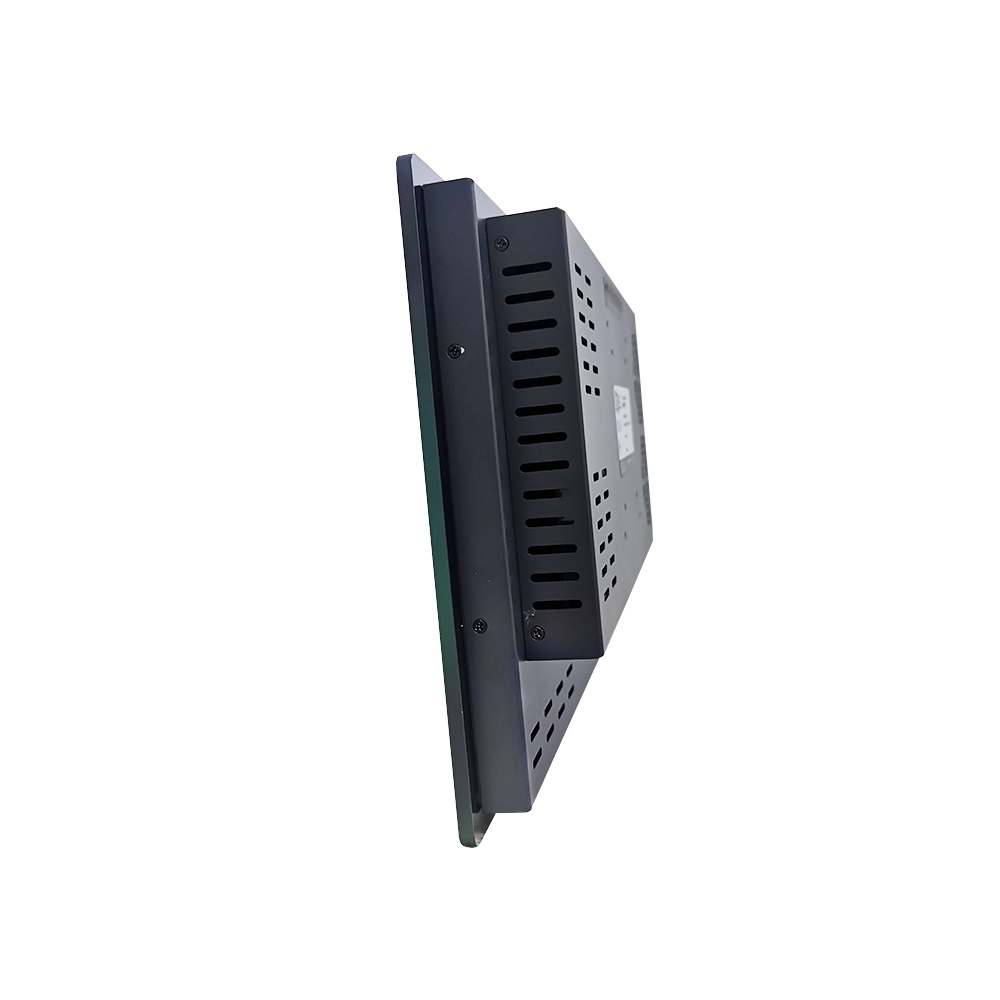

Built with an aluminum alloy frame and flush front design, the PCT01-156T03-P124 operates from -30°C to 85°C. Anti-glare glass, optical bonding, automatic brightness adjustment and dual-fan cooling support stable performance in demanding outdoor applications.

Specification

15.6 inch sunlight readable industrial touch monitor

Display Size	15.6 inch
Display Resolution	1920 × 1080
Brightness	Typ. 1000 cd/m²; min. 850 cd/m² after 6 mm cover glass
Touch Technology	Projected Capacitive Multi-Point Touch, EETI 80W46 controller
Touch Points	10 points
IP / IK Rating	IP65 front / IK10
Optical Bonding / Cover Glass	Optical bonding; 6 mm AG70±10 etched tempered glass
Viewing Angle	85°/85° left/right; 85°/85° vertical/horizontal
Operating Temperature	-30°C to 85°C
Video / Touch Interfaces	VGA, HDMI (DDC/CI), DVI; USB 2.0 touch
Aspect Ratio	16:9
Contrast Ratio	Typ. 1000:1
Display Colors	16.7 million colors
Backlight	LED
Active Area	LCD: 344.16 × 193.59 mm; PCAP: 345.23 × 194.54 mm
Input Voltage	12 V / 5 A
Power Consumption	35 W typ. / 40 W max. at 100% brightness
Overall Dimensions	386.80 × 242.90 × 52.40 mm
Brightness Control	Automatic via external light sensor or manual via OSD
Certifications / Compliance	EN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, FCC Part 15, RoHS IEC 62321
